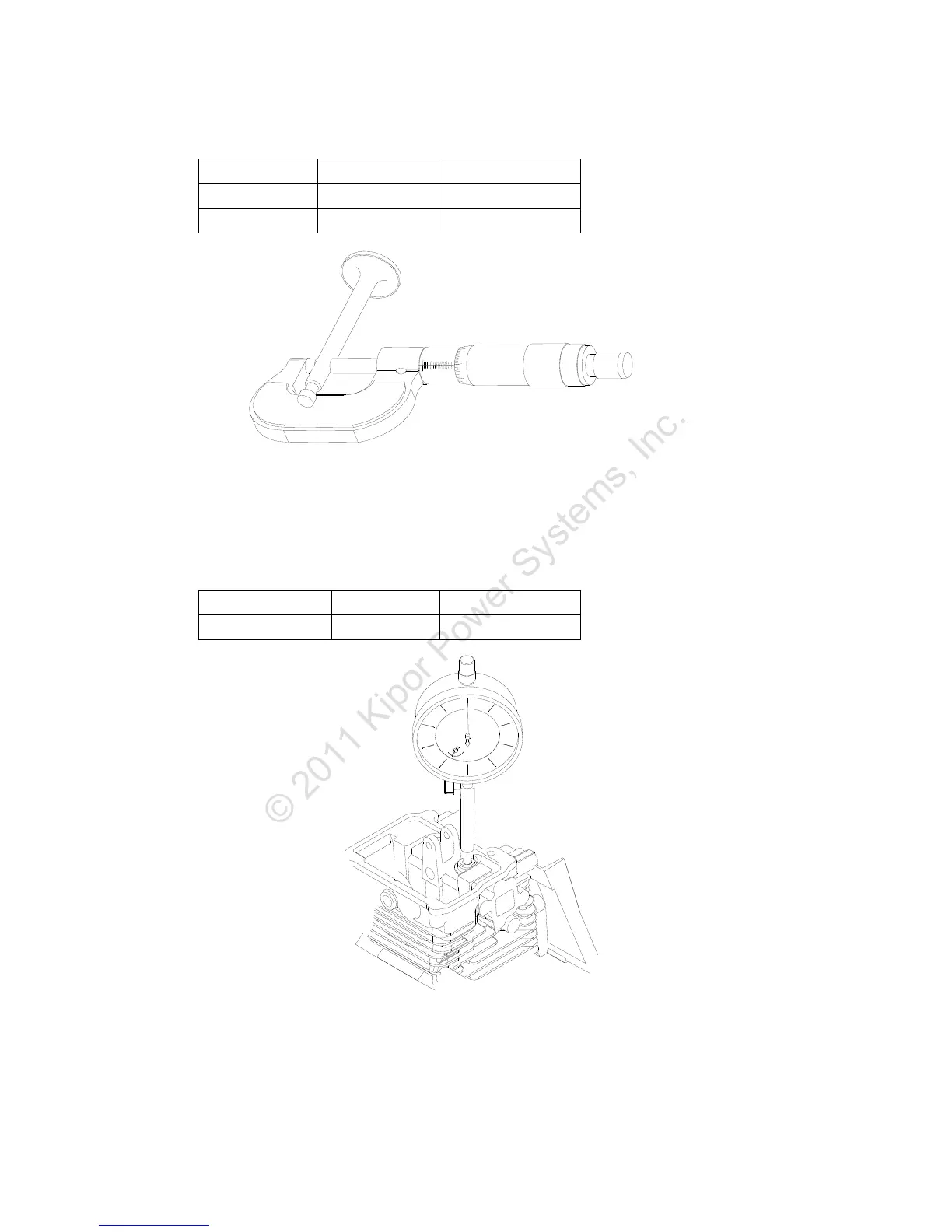

82
●
V
alve rod outer diameter
S
tandard(mm)
Service
limit(mm)
Inlet valve
3.965-3.980
3.90
Exhaust valve
3.955-3.970
3.90
●
V
alve guide pipe inner diameter
S
tandard(mm)
Service
limit(mm)
Inlet/Exhaust valve
4.000-4.030
4.060
©
2011
Kipor
Power
Systems,
Inc.
82
84
Table of Contents
Default Chapter
2
Preface
2
Table of Contents
3
Contents
3
1 Specifications/Wiring Diagram
5
Specifications
5
Performance Characteristics
6
Performance Curves
7
Dimensional Drawing
8
Wiring Diagrams
9
2 Service Information
12
The Importance of Proper Servicing
12
Important Safety Precautions
12
Service Rules
13
Electrical Precautions
13
Serial Number and Barcode
14
Maintenance Standards
14
Torque Values
15
3 Troubleshooting
16
General Symptoms and Causes
16
Hard Starting
17
Oil Alarm
20
Engine Stops Running
20
Engine Speed Unstable
21
Throttle Control System
21
Smart Throttle
22
Low or no Ac Output
22
No DC Output
24
No Parallel Output
24
4 Maintenance
26
Maintenance Schedule
26
Checking the Low Oil Alarm
28
Air Cleaner
29
Spark Plug
31
Valve Clearance
32
Fuel Tank and Filter
35
Fuel System
36
Fuel Pump and Hoses
37
5 Exhaust System
38
Muffler
38
Exhaust Tube/Secondary Air Injection Valve
39
Spark Arrestor
39
6 Intake System
40
Air Filter Removal and Installation
40
Carburetor Removal and Installation
41
Inspection
44
7 Control Panel
46
Removal and Installation
47
Inspection of Components
54
8 Light Kit/Housing/Fuel Tank/Fan Housing
54
Light Kit Disassembly and Installation
54
Housing Disassembly
55
Fuel Tank Assembly
57
Fan Housing/Engine Mounting Plate
58
Evaporative Control System
59
Guide Plate
60
9 Recoil Starter/Air Conduct Cover/Igntion Coil
61
Disassembly and Reassembly
61
Recoil Starter Installation
62
Inspection
64
10 Alternator/Trigger
66
Alternator
66
Inspection
66
Trigger Adjustment
67
11 Cylinder Cover/Rocker Arm
68
Disassembly/Reassembly
68
Inspection
69
12 Crankcase Cover/Camshaft Drive Chain
71
Disassembly
71
Crankcase Cover Reassembly
72
Roller Chain Reassembly
72
Chain Support Plate/Pressure Plate
74
Crankcase Cover Assembly
76
Inspection
77
13 Crankshaft/Piston and Connecting Rod
80
Disassembly
80
Piston/Connecting Rod
81
Inspection
82
