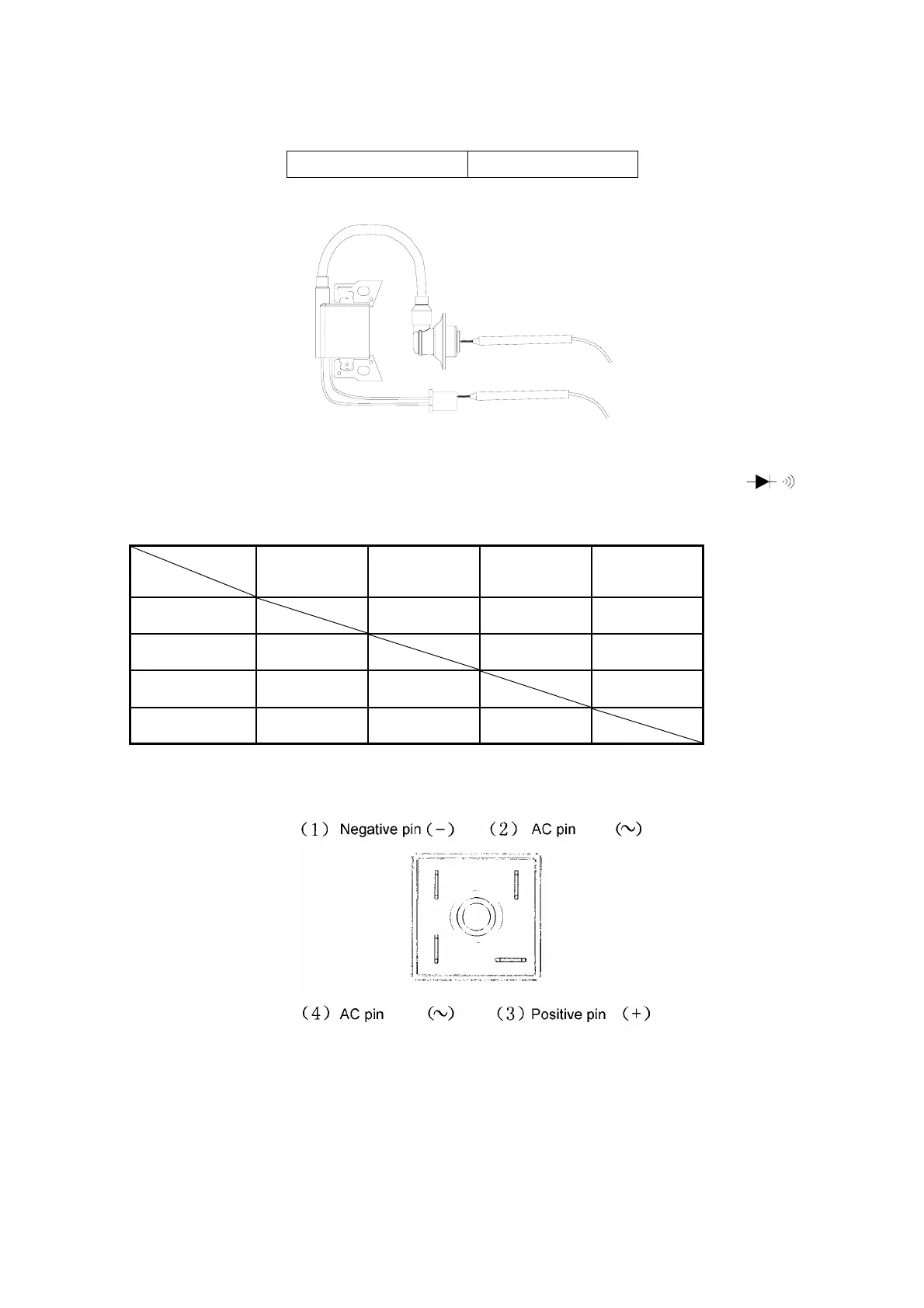

● Attach one lead of the tester to each terminal of primary coil plugs of ignition coil and the other lead to
the spark plug cap，then measure the secondary resistance of the ignition coil.
Secondary resistance 15—21kΩ
(2) Rectifier
Measure the on or off (positive pressure fall) of rectifier with control potentiometer
, the
measurement should accord with the standard as shown in the chart.
Positive
Negative
1 2 3 4
1 OFF OFF OFF
2 ON OFF OFF
3 ON ON ON
4 ON OFF OFF
48
