Dipstick
Upper limit
Lower limit
(See Fig.3)
Fig.4 Oil level
-20- -10 0 10 20 30 40
0 20 40 60 80 100
F
Ambient Temperature
Single
viscosity
Multi-
viscosity

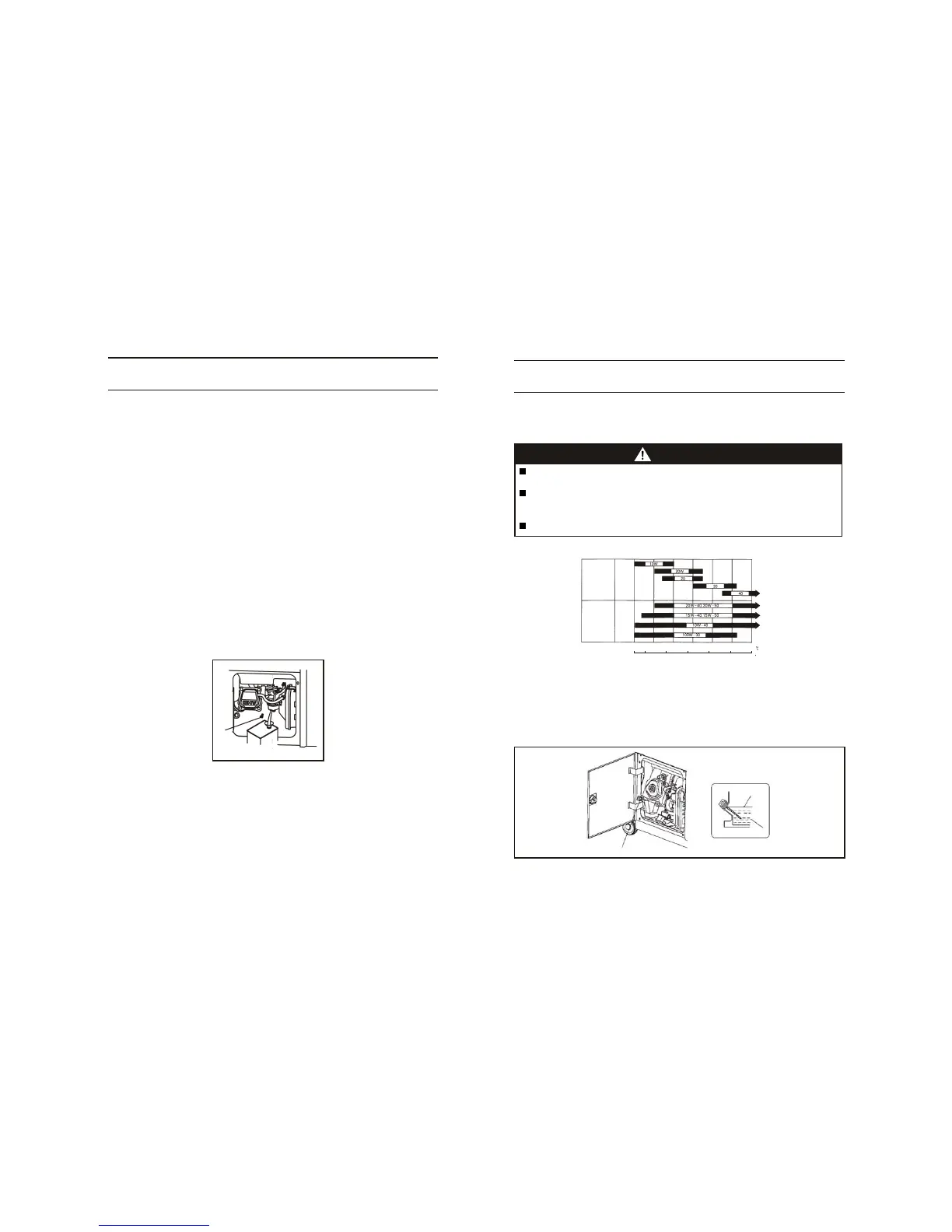

3. PRE-OPERATION CHECK
Be sure to check the generator on a level surface with the engine stopped.
3.1 Check the engine oil level.
Using nondetergent or 2-stroke engine oil could shorten the engine's
service life.
Use a high-detergent, premium quality four cycle engine oil, certified to
meet or exceed U.S. Automobile manufacturer's requirements for API
Service Classification SG/SF.
Select the appropriate viscosity for the average temperature in your area.
WARNING
SAE Viscosity Grades
Open the service door. Remove the oil filler cap and wipe the dipstick with a clean
rag.
Check the oil level by inserting the dipstick in the filler hole without screwing it in. If
the oil level is below the end of the dipstick, refill with recommended oil up to the
top of the oil filler neck. (See Fig.3)
-20-
-5-
Fig. 20 Drain the fuel
8. TRANSPORTING/STORAGE
8.1 When transporting the generator, turn the fuel valve lever OFF and keep the
generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
8.2 Exercising the generator
It is essential that the generator be exercised on a regular basis. This will prevent
the accumulation of varnish or sludge in the fuel system and also remove moisture
from the generator windings.
Exercise the generator by running it with at least a 1/2 load (1500W) for 60
minutes per month. Gasoline fuel treatments to prevent contamination of your fuel
supply are available from your dealer. Fuel varnishing necessitating replacement
of the carburetor is not a warrantable failure.
8.3 Before storing the unit for an extended period:
1. Ensure the storage area is free of excessive humidity and dust.
2. Drain the fuel
A. Open the left side maintenance cover.
B. Turn fuel valve lever to ON and then loosen the carburetor drain screw. Drain
the gasoline from the carburetor and fuel tank into a suitable container.
3. Once a month, recharge the battery.
4. Change the engine oil.
5. Remove the spark plug and pour one tablespoon of clean engine oil into the
cylinder. Crank the engine several revolutions to distribute the oil and then reinstall
the spark plug.
Drain
plug
