(2) Pipe connection
【Attention operations】
Idle running of fuel feed pump causes damage.
Check the fuel level of outside fuel tank periodically.
6.1.3 Fill lubricant
Keep lubricant level between upper and lower scale marks. Lubricant level shall not exceed the
upper mark (H). Ejection of lubricant from the breather hole may cause engine errors.
a. Keep engine level when filling in lubricant.
b. Take off the black cover of lubricant inlet on the top of gear chamber. Add recommended
lubricant up to the upper mark (H) of oil gauge.
c. Measure the lubricant with oil gauge. In order to get correct level, please clean the oil gauge
before inserting it into lubricant. Lubricant trace remained on the oil gauge indicates
measurement.
d. Re-confirm it after 3-5min running.
6.1.4 Fill cooling water
Close the radiator water inlet cover tightly.
Otherwise, ejected steam or hot water may cause scalding.
Add cooling water as per following procedures. Please add anti-freezing liquid into cooling water.
● Fill water into radiator
a. Turn the radiator anticlockwise and take it off.
b. Add the cooling water till it overflows from radiator water inlet. Slowly fill cooling water to avoid
any foam.
c. Close the radiator cover tightly to prevent any water leakage. Direct the inside clip towards
notch of water inlet. Then press down the cover and turn the cover towards right side for 1/3
cycle to close the cover.

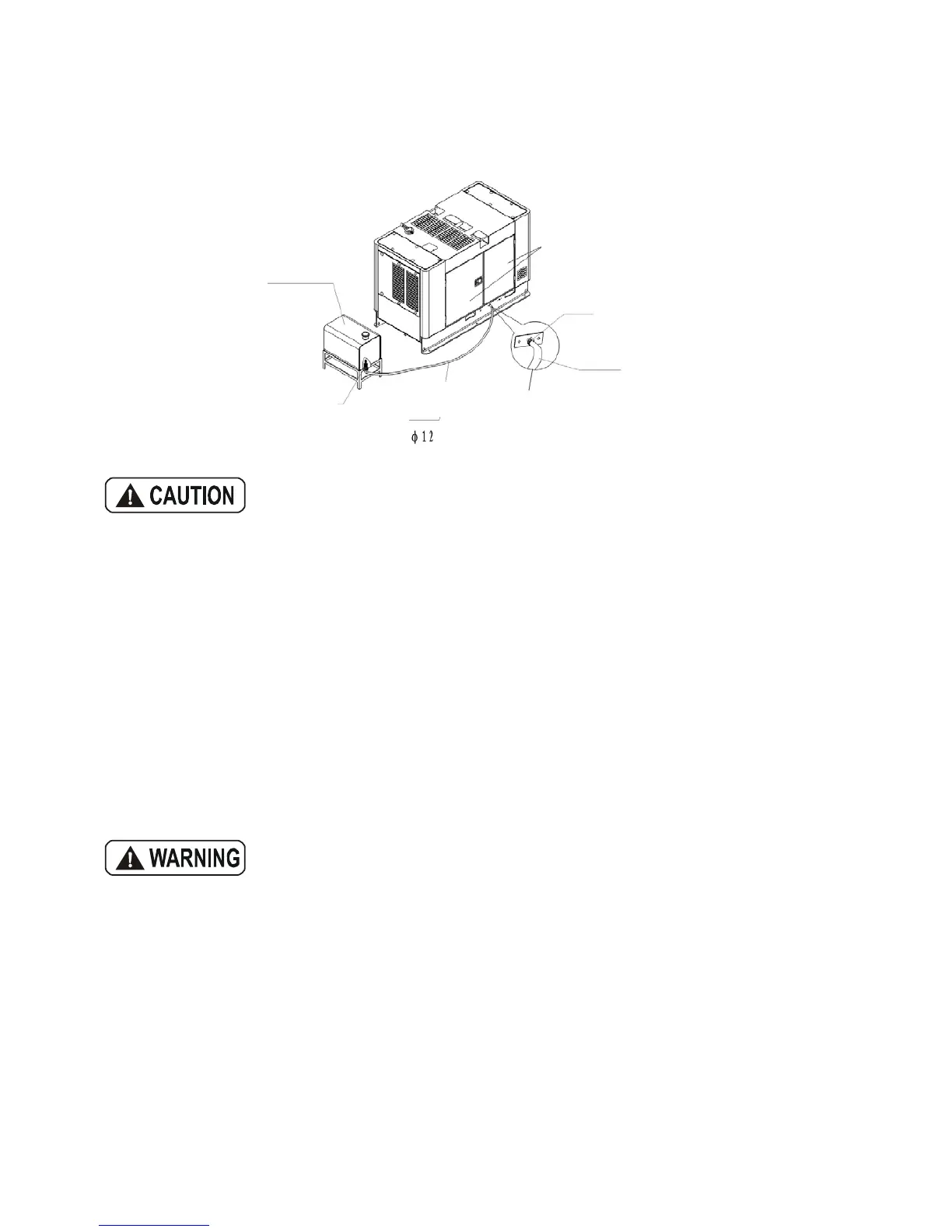

Outside fuel tank
Fuel filter element
Fuel
