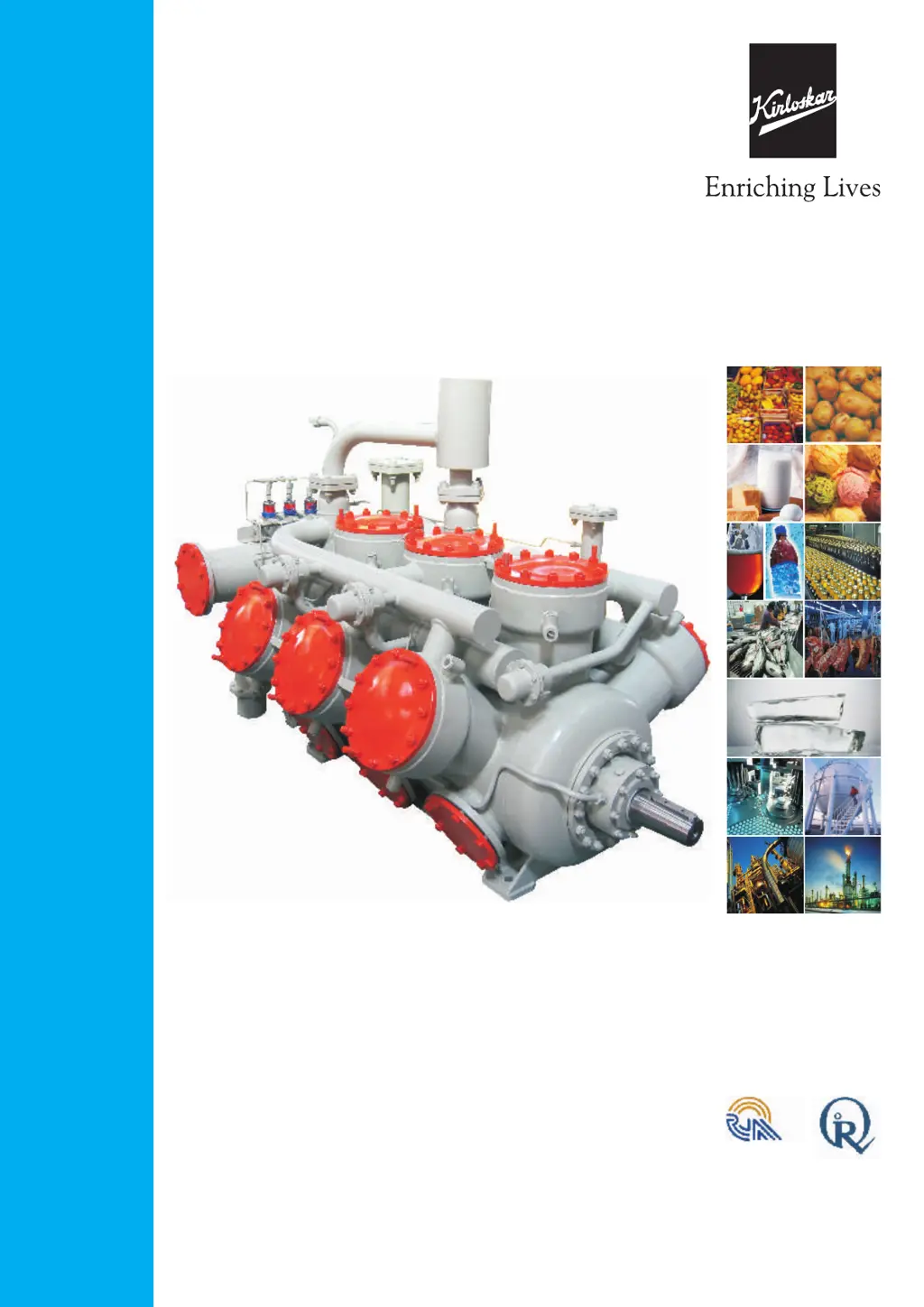

Kirloskar KC Series Refrigeration Compressors

Instruction and

Operation Manual

Versions:

Single Stage : KC2, KC3, KC4, KC6, KC9, KC12

Two Stage : KC21, KC31, KC42, KC51, KC63, KC72, KC84,

KC93 & KC102

KIRLOSKAR

KIRLOSKAR PNEUMATIC CO. LTD.

Kirloskar Refrigeration

INDIAN REGISTER

©

OF SHIPPING 1993

MGMT. SYS.

RvA C 071

ISO 9001 : 2000

Table of Contents

Questions and Answers:

E
Eddie ReyesAug 17, 2025
Why is the delivery pressure too high in my KIRLOSKAR KC9 Air Compressor?
- A
  Amber WalkerAug 17, 2025
  The delivery pressure might be too high due to several reasons: * The delivery stop valve is not open wide enough. Open it fully. * There is less or too warm cooling water. Increase the water supply. * The gas suction pressure is too high (during starting-up period only). Partially close the suction stop valve. * The suction pressure is higher than normal. Refer to fault No. 9.3. * There is too much refrigerant in the condenser. Open the liquid control valve further or release some liquid from the system. * The condenser tubes are blocked or dirty. Clean the condenser. * There is air in the system. Purge the system. * The delivery pressure gauge is defective. Repair it.
S
Steven MartinAug 20, 2025
What causes leakage of shaft seal in KIRLOSKAR KC9 Air Compressor and how to fix it?
- S
  swansonmatthewAug 20, 2025
  Leakage of the shaft seal can occur due to several reasons: * Worn out 'O' rings: Replace them. * Scratch marks on sealing faces: Lap the faces up to 2 light bands or replace sealing faces. * Dirty oil: Change the oil, and also clean the seal assembly and seal chamber. * Excessive axial thrust: Adjust axial thrust. * Scratch marks on shaft seal areas of the crankshaft: Lap shaft on seal area. * Losing of spring effect: Replace springs. * Oil flow inadequate to shaft seal cooling: Check the oil pump and its piping for blocking the oil passage. Adjust recommended oil pressure on the pressure regulator.
R
Robert WelchAug 22, 2025
What to do if delivery pressure is too low in KIRLOSKAR KC9?
- P
  Pamela RobertsAug 23, 2025
  If the delivery pressure is too low, consider the following possible causes: * The H.P. safety valve is leaking: Repair or renew it. * The suction stop valve is not open wide enough: Open it fully. * The suction pressure is lower than normal: Refer to fault No. 9.4. * The delivery pressure gauge is faulty: Repair or renew it. * The delivery valve is defective: Replace it.
E
elizabeth46Aug 26, 2025
Why is the suction pressure too high in my KIRLOSKAR KC9 Air Compressor?
- J
  Jessica FloresAug 26, 2025
  A high suction pressure can be caused by: * The liquid control valve being open too wide: Readjust the setting. * A leaking H.P. safety valve: Repair or replace it. * A defective pressure gauge: Repair or replace it. * The capacity control being out of order (if fitted): Inspect and repair it. * Defective suction or delivery valves: Renew them. * Excessive leakage past the piston: Replace the piston rings.
R
Ronald NorrisAug 28, 2025
What causes malfunctioning of loading/unloading operation of compressors KIRLOSKAR?
- M
  Michelle DanielAug 28, 2025
  Malfunctioning of loading/unloading operation of compressors could happen because: * Solenoid valve not functional well due to: 1. Chattering of valve coil, 2. Valve top and bottom seat damaged or blocked. 3. Plunger neoprene seat swelled excessively: Check continuity of coil and wiring to solenoid valve. * No sufficient actuating pressure to unloader assembly: Repair or place valves seat part. * Capacity control piston 'O' ring and piston ring worn out: Replace or cut excessive swelled portion of neoprene seat. * Blockage of control lines: Check oil control lines for blockage and repair/replace.
D
danny32Aug 30, 2025
How to fix low suction pressure in KIRLOSKAR KC9?
- P
  Paul GarnerAug 30, 2025
  Low suction pressure can occur due to: * The suction stop valve not being open wide enough: Open it fully. * The liquid control valve not being open wide enough: Open it further. * The refrigerant suction strainer being chocked: Clean it. * There being less refrigerant in the system: Top up with refrigerant.
R
richardsonmelissaSep 2, 2025
What causes high oil consumption in KIRLOSKAR Air Compressor?
- J
  James BrownSep 2, 2025
  Excessive oil consumption in your air compressor can stem from: * A defective or chocked automatic oil return valve from the oil separator: Repair or replace/clear it. * Worn piston rings: Fit new piston rings. * Defective oil return valve(s) in cylinder jackets: Replace them.
S
Stephanie BairdSep 5, 2025
What is liquid stroke in KIRLOSKAR KC9 and how to prevent it?
- K
  Katrina WilliamsSep 5, 2025
  Liquid stroke can be caused by: * The liquid control valve being open too wide: Readjust the setting. * The capacity control being out of order (if fitted): Inspect and repair it. * A defective evaporator float (if fitted): Inspect and repair or replace it.
R
Rebecca GoldenSep 8, 2025
Why is oil pressure too low in my KIRLOSKAR KC9?
- K
  Kelly PopeSep 8, 2025
  Low oil pressure can be attributed to: * The oil pressure differential pressostat probably operates: Repair/Readjust it. * The oil pressure regulator is defective: Top up with oil. * Insufficient oil in the crankcase: See fault No. 9.4. * Suction pressure too low: Clean it. * The oil suction and/or delivery strainer is blocked: Clean out or repair it. * The oil return pipe between the crankcase and oil suction strainer is blocked: Refit it. * Slack bearings: Clean-out.
J
Jamie QuinnSep 12, 2025
What causes high oil pressure during running in KIRLOSKAR KC9?
- M
  murrayjohnSep 12, 2025
  High oil pressure during running can be caused by: * The oil pressure regulator being defective or maladjusted: Repair or readjust it. * A defective pressure gauge: Repair or renew it.
