KIRLOSKAR KMW MIN T 8 DLX User Manual

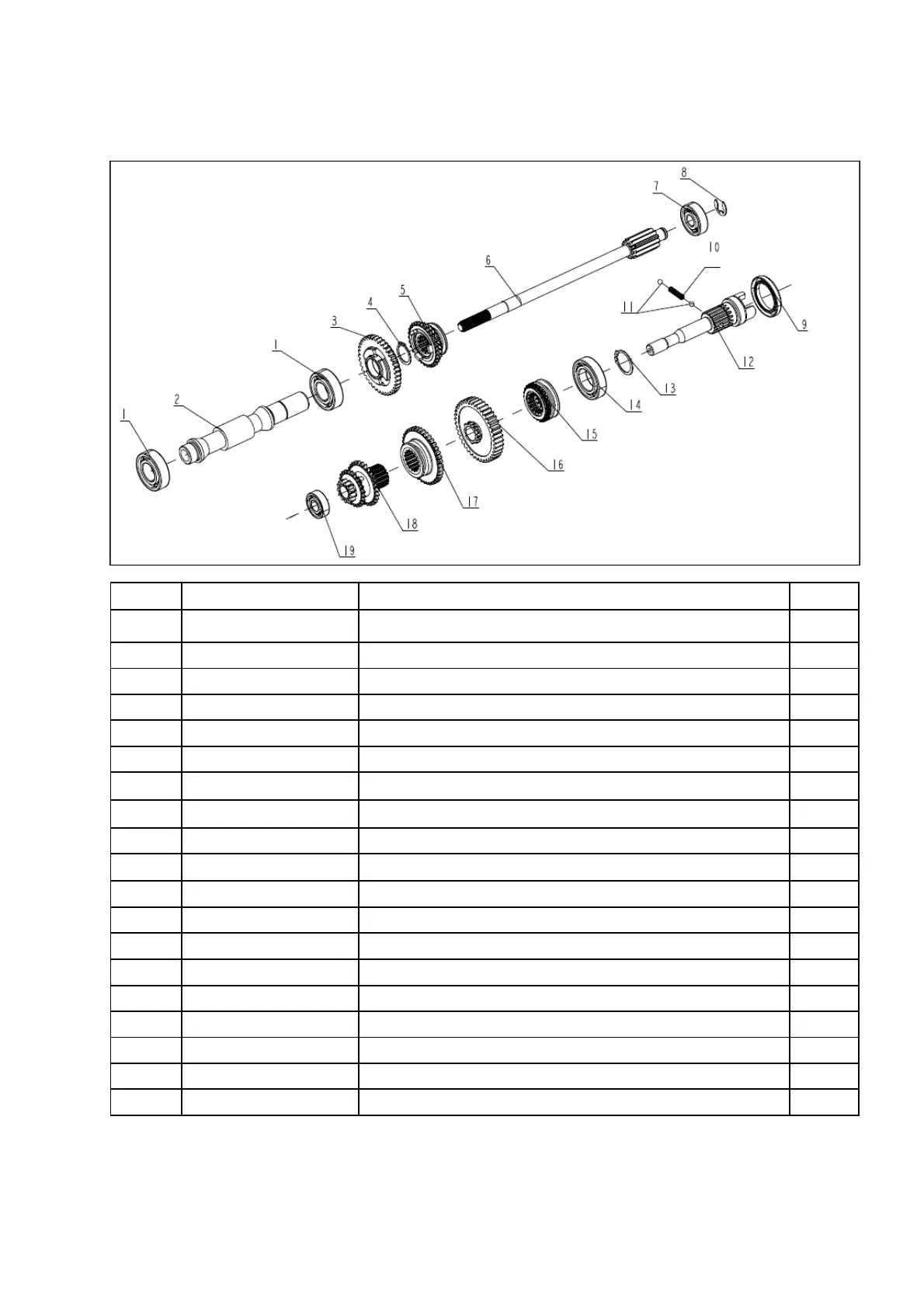

TRANSMISSION ASSEMBLY
SR.NO.
PART NO
PART NAME
QTY.
1
P08.D004.021.0.00
BEARING 6205

2
P08.D004.051.0.00
WORM


3
P08.D004.052.0.00
COUNTER SHAFT GEAR - 38 TEETH


4
P08.D004.053.0.00
CIRCLIP Φ25


5
P08.D004.054.0.00
VARIABLE SPEED CLUTCH GEAR


6
P08.D004.055.0.00
ACTIVE SPLINE SHAFT


7
P08.D004.022.0.00
BEARING 6302

8
P08.D004.023.0.00
C TYPE JUMP RING Φ12

9
P08.D004.024.0.00
OIL SEAL 38X55X7


10
P08.D004.001.0.00
FUNCTIONAL CLUTCH GEAR POSITIONING SPRING

11
P08.D004.002.0.00
FUNCTIONAL CLUTCH GEAR POSITIONING STEEL BALL

12
P08.D004.056.0.00
OUTPUT SHAFT GEAR BOX


13
P08.D004.057.0.00
CIRCLIP Φ30


14
P08.D004.025.0.00
BEARING 6006


15
P08.D004.058.0.00
FUNCTIONAL CLUTCH GEAR


16
P08.D004.059.0.00
FUNCTION OUTPUT GEAR- 40 TEETH


17
P08.D004.060.0.00
REVERSE SLIDING GEAR


18
P08.D004.061.0.00
TRANSMISSION DRIVE GEAR


19
P08.D004.026.0.00
BEARING 6202



.,5/26.$52,/(1*,1(6/,0,7('

$.LUORVNDU*URXS&RPSDQ\

KIRLOSKAR KMW MIN T 8 DLX Specifications

General

Brand	KIRLOSKAR
Model	KMW MIN T 8 DLX
Category	Farm Equipment
Language	English
