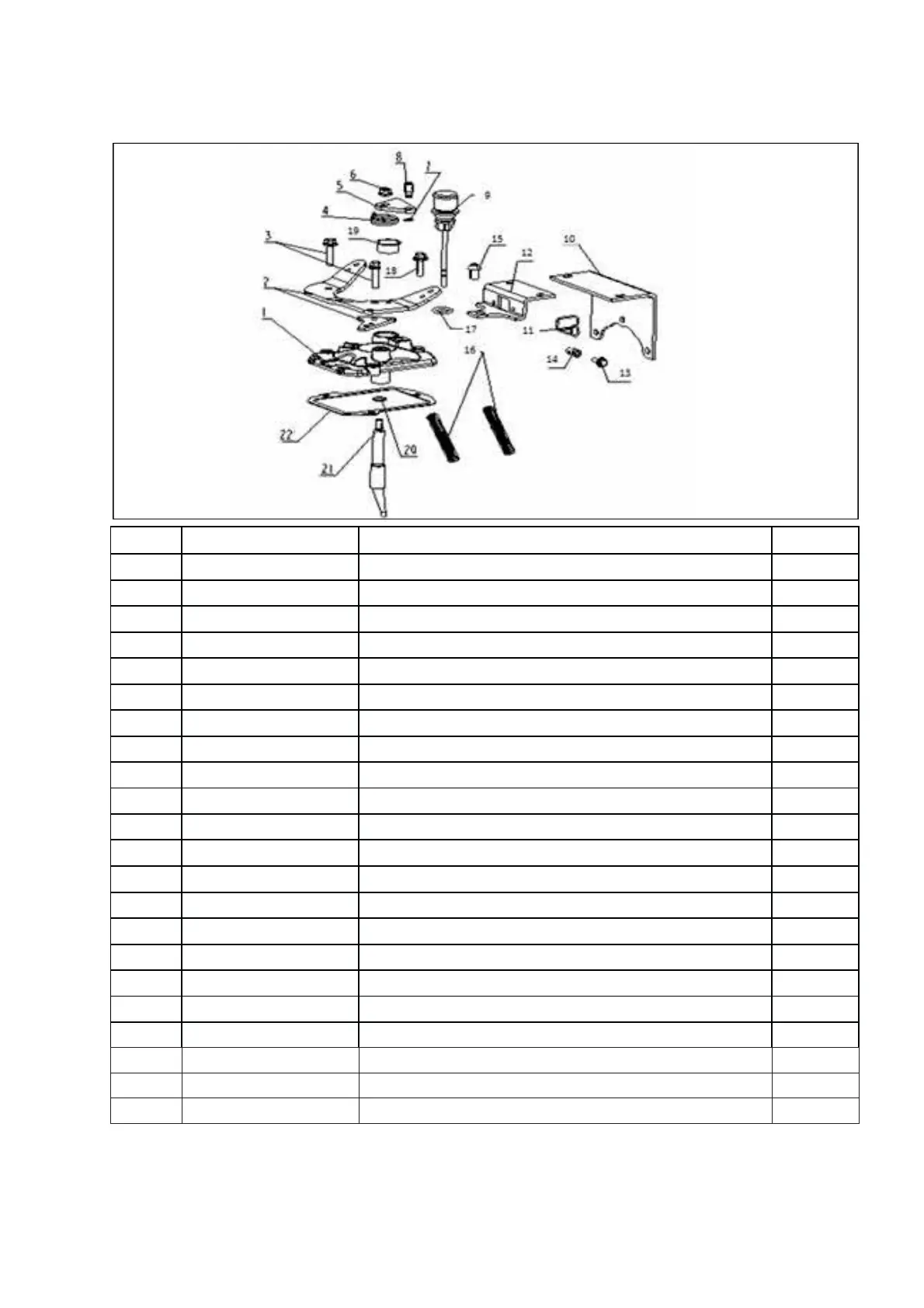

TOP COVER ASSEMBLY
SR.NO.
PART NO
PART NAME
QTY.
1
P08.D005.041.0.00
TOP COVER
1
2
P08.D005.081.0.00
CABLE SUPPORT
1
3
50.911.08.030
FLANGE BOLT M8*30
3
4
P08.D005.001.0.00
SPRING
1
5
P08.D005.071.0.00
LEVER PLATE
1
6
50.008.08.000
LOCK NUT M8
1
7
P08.D005.002.0.00
CIRCLIP Φ6
1
8
P08.D005.051.0.00
CLUTCH HOLDER


9
P08.D005.021.0.00
DIPSTICK ASSY.

10
P08.D005.082.0.00
SUPPORT FOR BATTERY MOUNTING BRACKET

11
P08.D005.024.0.00
SWITCH OFF WIRE

12
P08.D005.083.0.00
CABLE SUPPORT

13
57.076.06.016
ALLEN SCREW M6X16

14
57.006.06.000
NUT M6

15
57.076.10.016
ALLEN SCREW M10X16

16
P08.D005.005.0.00
SPRING

17
P08.D005.006.0.00
O-RING Φ 19* Φ 3.55

18
50.911.08.025
FLANGE BOLT M8X25
1
19
P08.D005.023.0.00
OIL CAP
1
20
P08.D005.004.0.00
O-RING 1.8*14
1
21
P08.D005.052.0.00
CLUTCH STEERING FORK

22
P08.D005.022.0.00
TOP COVER GASKET


