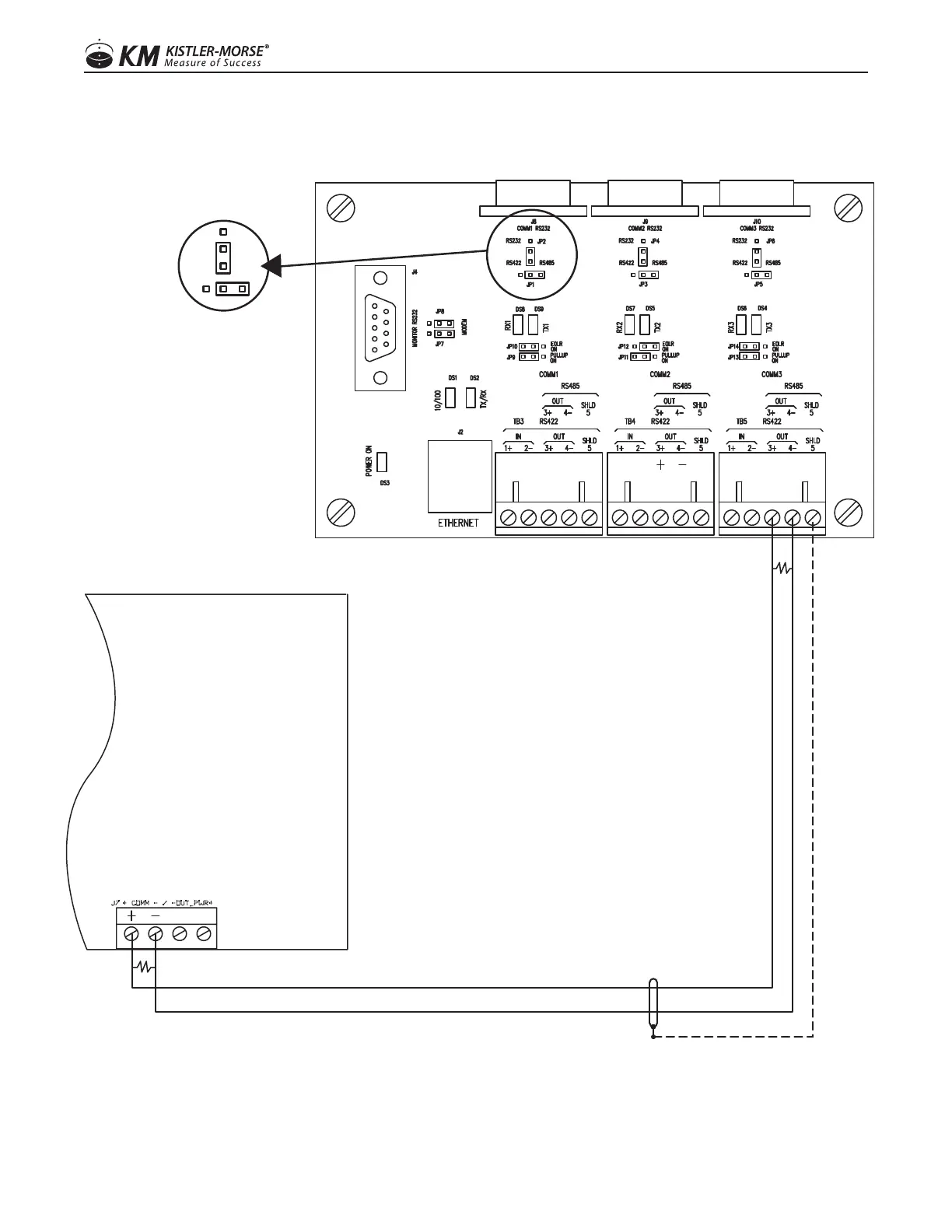

FIGURE 3: Wiring For RS-485 Connections (Modbus)
ORB Board Layout
RS-485 Connections
MODBUS/RS-485
Jumper Configuration
Port 1 Port 2 Port 3
Service Port
120 Ώ
120 Ώ
