KL1000 - 2017 Installation Instructions
Special Notes
Please read carefully:
• Before installing the lock, load the batteries and familiarise yourself with the operation and programming.
• The handle will not turn until you enter the factory default Master Code 11335577 or the User Code 2244.
• Please see programming guide to set your own codes.

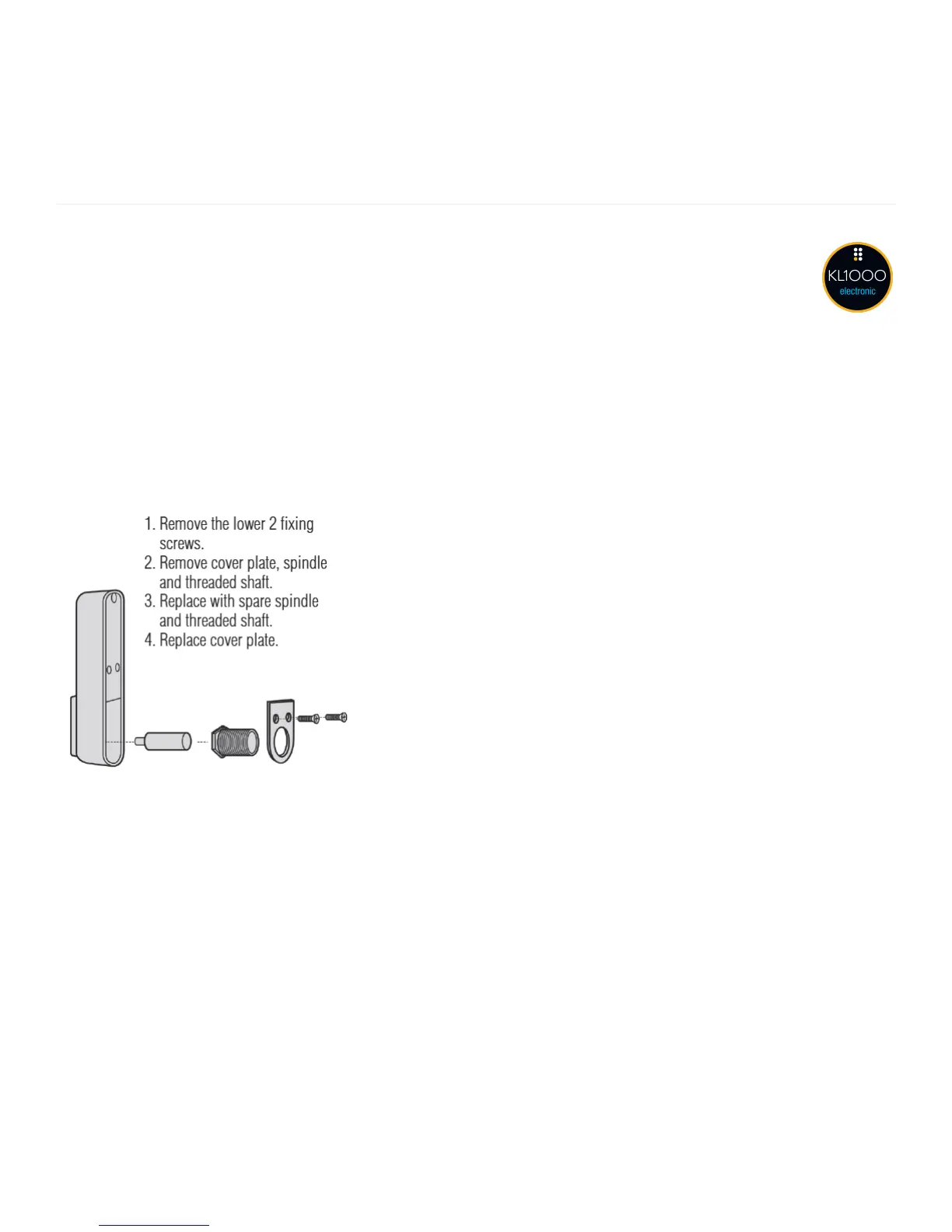

• Your KitLock is supplied ready to fit to doors up to 19mm ﴾3∕4”﴿ thick. For doors between 19mm ﴾3∕4”﴿ and 25mm ﴾1”﴿ thick, you will need to install the 28.5mm ﴾1
1∕8”﴿ spare spindle ﴾see below﴿. A 9mm ﴾3∕8”﴿ spindle is also included for sheet metal doors ﴾see below﴿.
The KitLock can be fitted to:
A Cabinets, cupboards and lockers etc as a direct replacement for existing cam locks.
B It can also be fitted easily to cupboards and cabinets that do not have an existing locking device.
