14

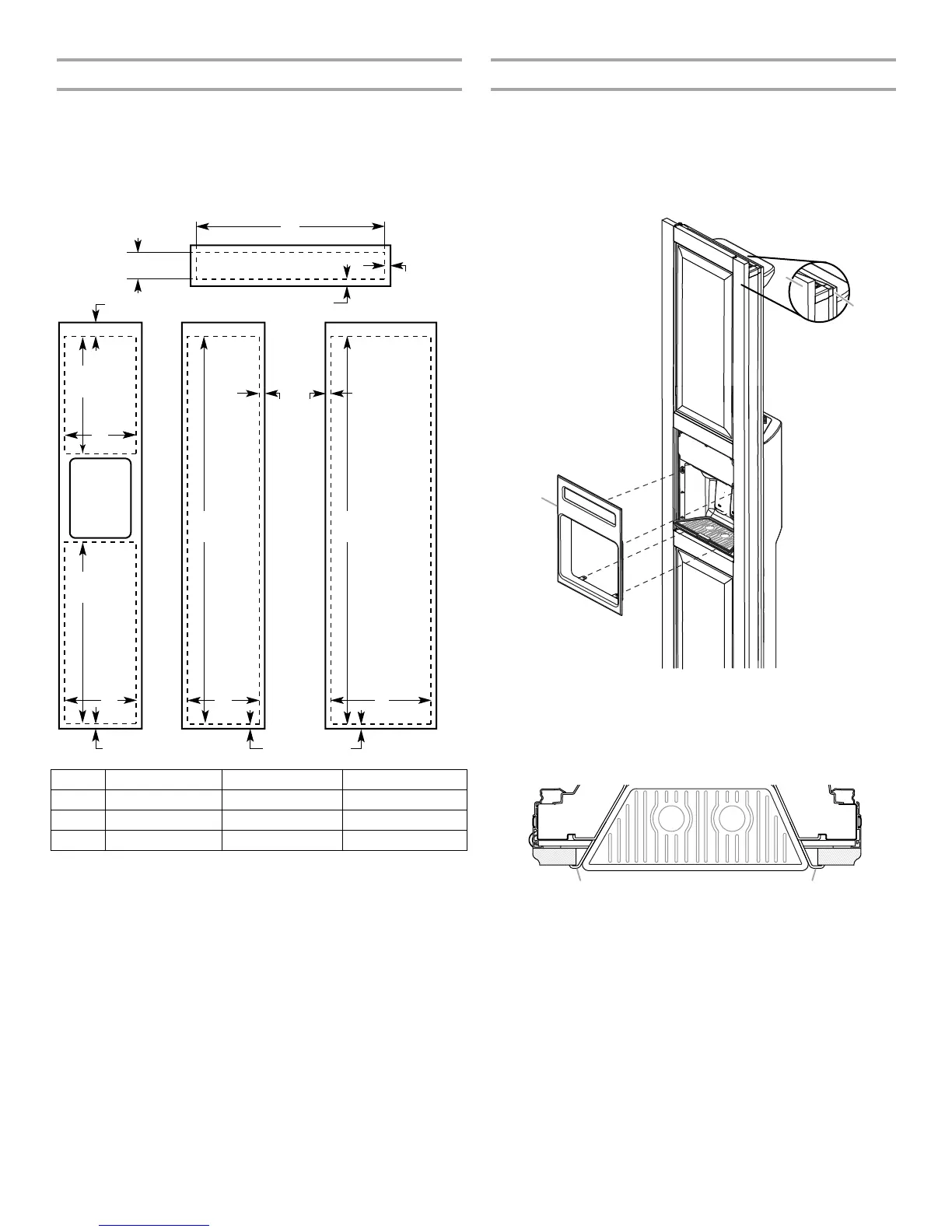

Backer Panels
NOTES:
■ Dashed lines represent placement of backer panels on overlay
panels.
■ Illustration shows backer panels placed on decorative
overlays.
Dispenser Frame (dispenser models only)
The dispenser frame attaches to the panel with 4 screws.
To remove the dispenser frame:
1. Remove the four screws attaching the frame.
2. Pull the dispenser frame from the decorative panel.
3. To replace the frame, hold the frame to the panel and replace
the screws.
The dispenser frame overlaps the dispenser cutout by ⁵⁄₁₆"
(0.78 cm) on each side and ¹⁄₂" (1.27 cm) on the top and bottom.
Model A B C
36 14¹/₄" (36.20 cm) 19¹/₄" (48.90 cm) 33³/₄" (85.73 cm)
42 16³/₄" (42.55 cm) 22³/₄" (57.79 cm) 39³/₄" (100.97 cm)
48 19¹/₄" (48.90 cm) 26¹/₄" (66.68 cm) 45³/₄" (116.21 cm)
Bottom Offset
¹⁄₈" (3.2 mm)
Bottom Offset
¹⁄₈" (3.2 mm)
A
ABA
C
6
³⁄₁₆"
(15.7 cm)
Side Offset
¹⁄₂" (12.7 mm)
Top Offset
1
⁵⁄₈" (4.13 cm)
Bottom Offset
¹⁄₂" (1.27 cm)
22"
(55.9 cm)
33
¹⁄₄"
(84.5 cm)
70
¹⁄₂"
(179.1 cm)
70¹⁄₂"
(179.1 cm)
Handle-
Side Offset
¹⁄₄"
(6.4 mm)
A. Decorative panel
B. Refrigerator door
C. Dispenser frame
A.
⁵⁄₁₆ " (0.78 cm) Overlap
A
B
C
A A
