8.
Re
move the 2 screws from the side burner valve assembly.
See illustration in Step 10.
Push the valve stem out through the opening in the front of
the side burner shelf, lining up the holes in the side burner
valve assembly with the openings on the side burner shelf.
See illustration in Step 10.

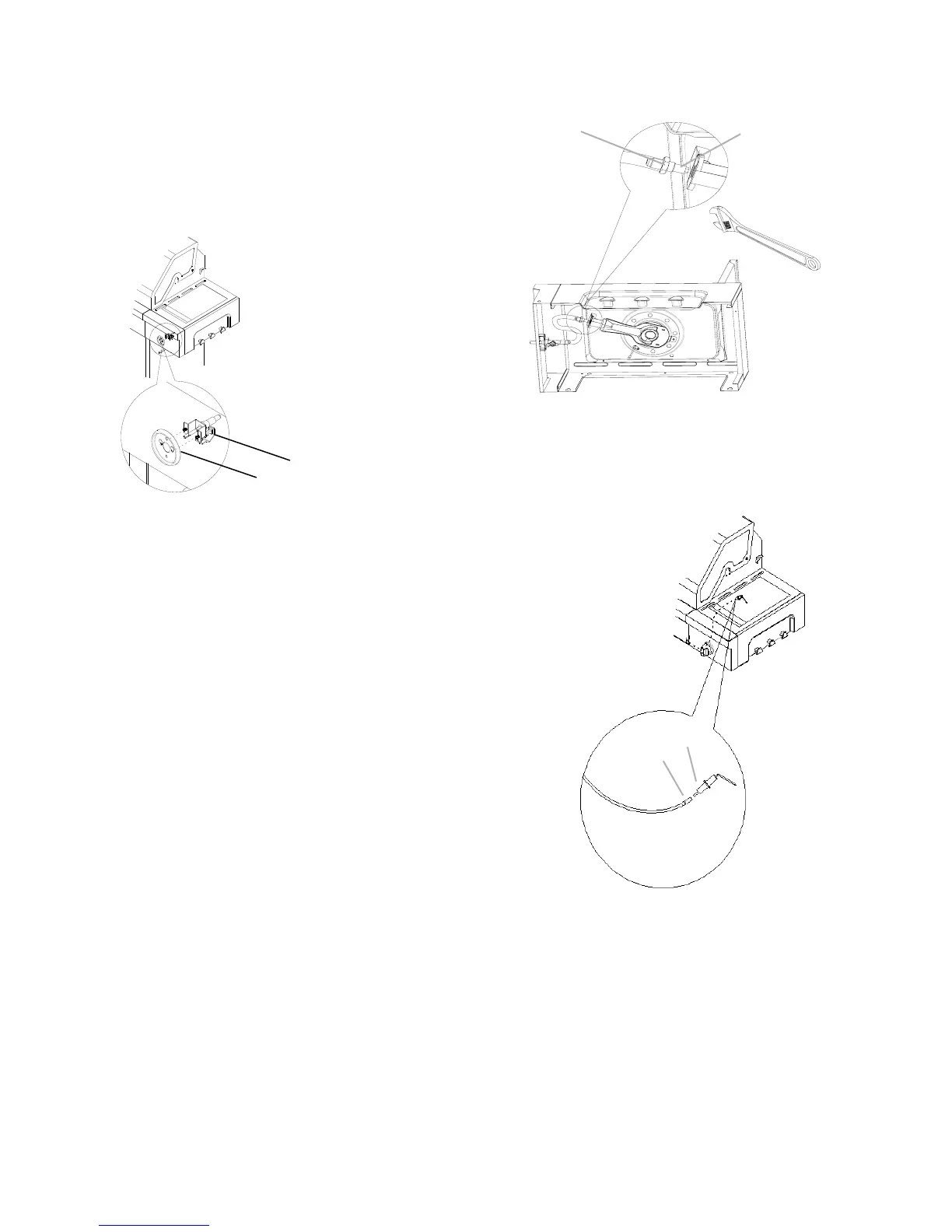

10. Slide the bezel opening over the valve stem and attach the
side burner valve assembly and bezel to the side burner shelf
with the screws removed in Step 8.
12. Connect electrical plugs on underside of side burner.
A.
Bezel
B. Valve
A. Electrical plug from grill
B. Electrical plug from side burner
9.
11.
Attach side burner orifice bracket with side burner tube
with preassembled brass screw, then tighten by wrench.
A. Side burner orifice bracket.
B. Side burner tube
B
