8
■

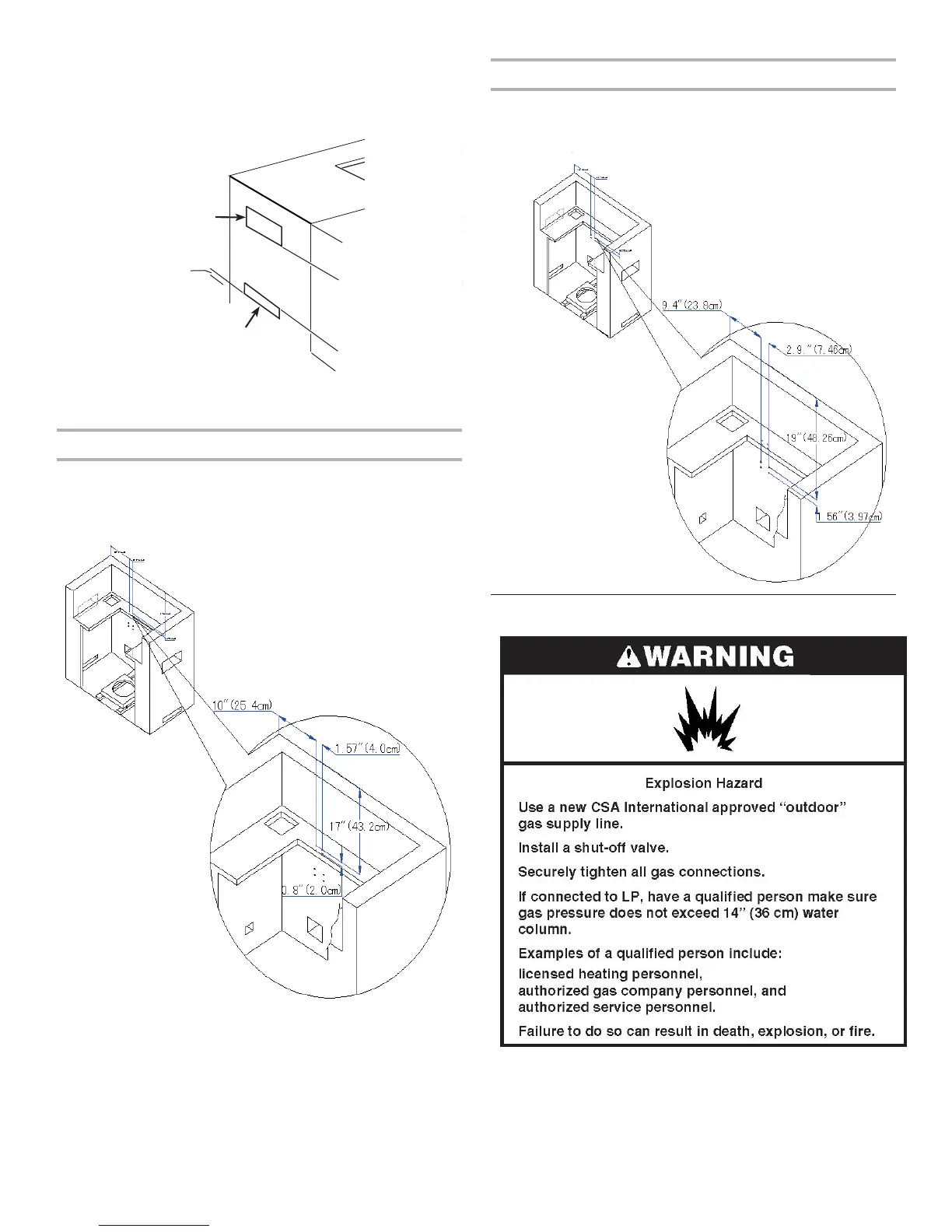

To ensure that the grill operates properly, it is recommended that the
island have ventilation on all 4 sides as shown in the following
illustration. The ventilation holes should be as diagramed to ensure
adequate ventilation for your grill and island.
■ Proper ventilation is a required based on the above mentioned
specifications for your grill to operate properly.
LP Gas
LP Gas
Pressure Regulator/Hose Assembly Location
Measurements shown are for attaching the LP gas pressure regulator/
hose assembly to the enclosure.
Natural Gas Conversion
Natural Gas Pressure Regulator Location
Measurements shown are for attaching the Natural gas pressure regulator
to the enclosure.
Gas Supply Requirements
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes and
ordinances. In the absence of local codes, installation must conform with
American National Standard, National Fuel Gas Code ANSI Z223.1 -
latest edition or CAN/CGA B149.1 - latest edition.
IMPORTANT: Grill must be connected to a regulated gas supply.
10 in.
2
(64.5 cm
2
) min.
ventilation both sides
2½" (6.0 cm) max.
1½" (3.0 cm) max.
20 in.
2
(129.0 cm
2
) min.
ventilation both sides
5" (12.7 cm) max.
