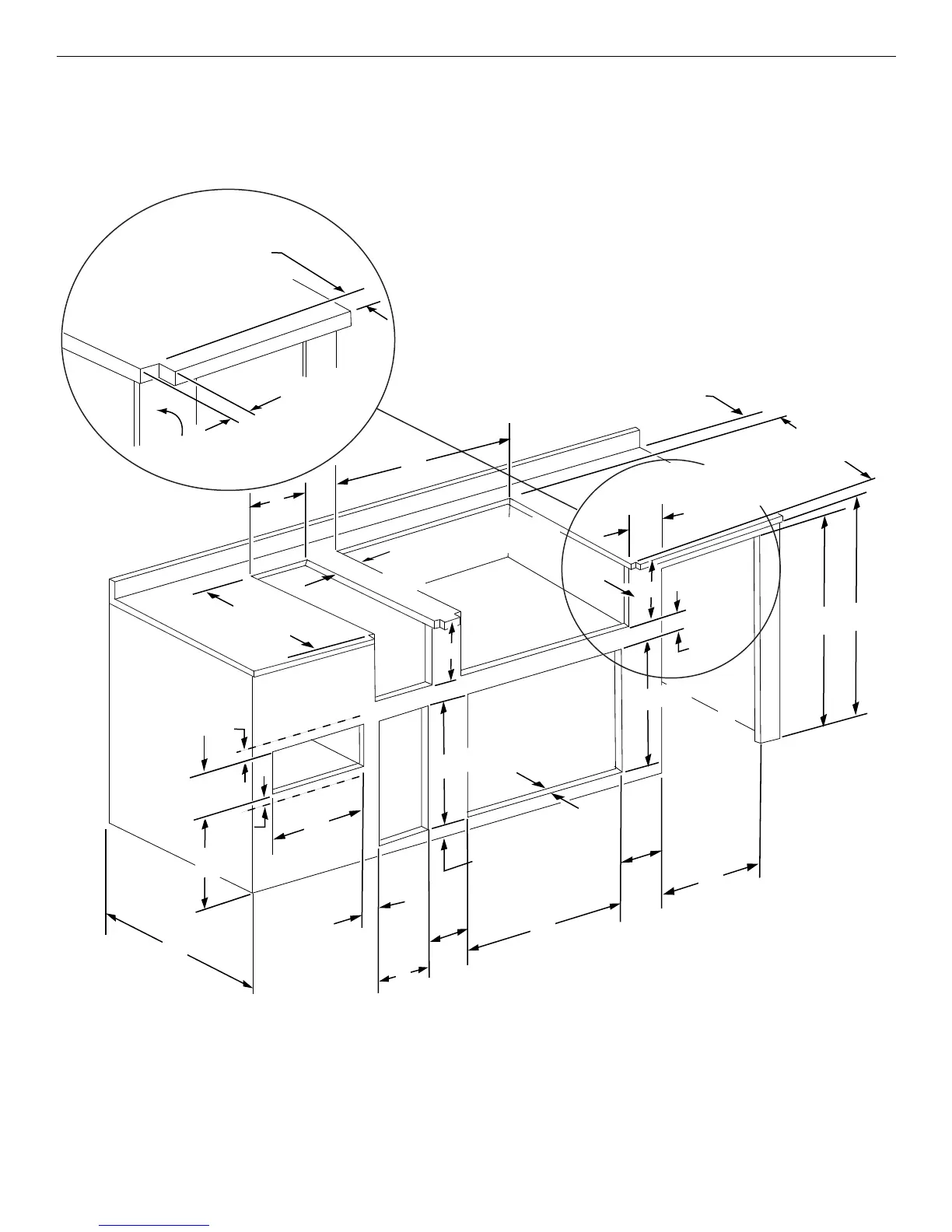

Cabinet Cutout Dimensions
The following dimension chart and illustration include cutout dimensions and minimum spacing requirements for all built-in outdoor
products. The illustration is for reference. The design of your cabinet layout can be personalized, but the dimensions for the cutouts and
minimum spacing must be followed.
*NOTE: Maintain a minimum ³⁄₄" (1.9 cm) countertop overhang from the door/drawer mounting surface to help keep water runoff from
the countertop out of the door or drawer.
**Each corner of countertop cutouts for built-in grill, side burner, sear burner, Power™ burner and refreshment center.
E
H
A
G
K
K
F
K
B
J
E
20⁵⁄₈" (52.4 cm)
1¹⁄₂"
(3.8 cm) min.
3" (7.6 cm) min.
to open hood
2¹⁄₂" (6.4 cm) min.
20⁷⁄₈" (53.0 cm)
9¹⁄₈"
(23.2 cm)
5"
(12.7 cm) min.
M
L
K
K
Grills
Side,
Sear
or
Power™
Burners
Warming
Drawer
Access Doors
Refrigerator
or
Ice Maker
Utility
or
Trash
Drawer
12" (30.5 cm) min.
from any outdoor
cooking appliance to other
outdoor accessories.
Cabinet
Face
Cabinet
Face
*Overhang distance
between edge of
countertop and cabinet face
**1¹⁄₈" (2.9 cm) Typical
notch width
D
D
(from cabinet
face
)
(from cabinet
face
)
12" (30.5 cm) min.
from any outdoor
cooking appliance to
other outdoor accessories.
C
C
