KitchenAid KBLC36FKB01 - Page 4

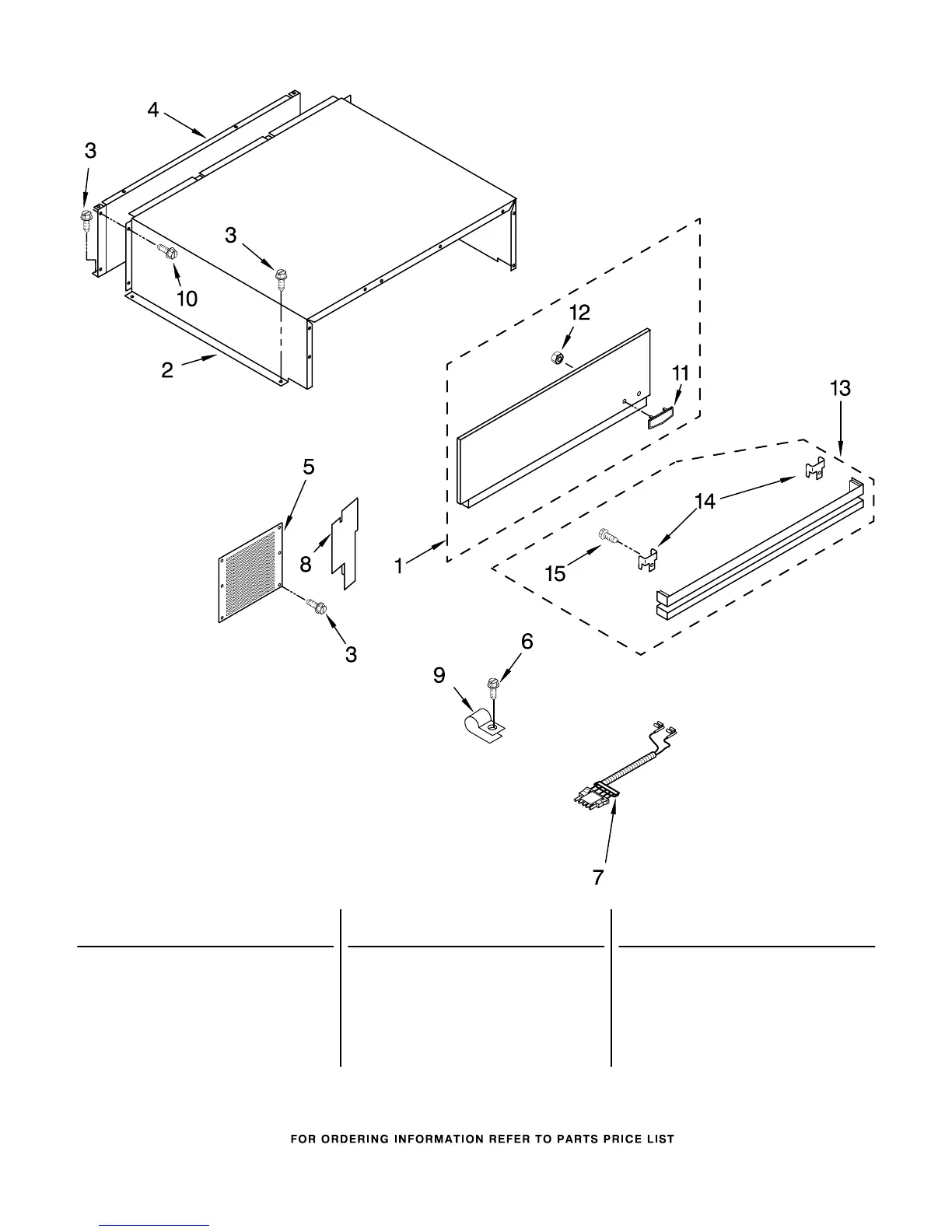

TOP GRILLE AND UNIT COVER PARTS
4
For Models: KBLC36FKB01, KBLC36FKS01
(Black) (Stainless Steel)
8198079
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2220996B Black
2215952S Stainless Steel
2 2209490 Cover, Unit
3 1157158 Screw, 8−18 x 3/8
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 487415 Screw
7 2187423 Wire Assembly
8 8201530 Baffle−Air,
Condenser
9 489348 Clamp
10 488908 Screw, 10−12 x 1/2
11 2005292 Nameplate
12 2004333 Nut
13 Louver, Vent
2215969B Black
2215969S Stainless Steel
14 2005483 Bracket, Louver
15 488879 Screw 8−32 x 5/16
