KitchenAid KBLC36MHB01 - Page 3

3

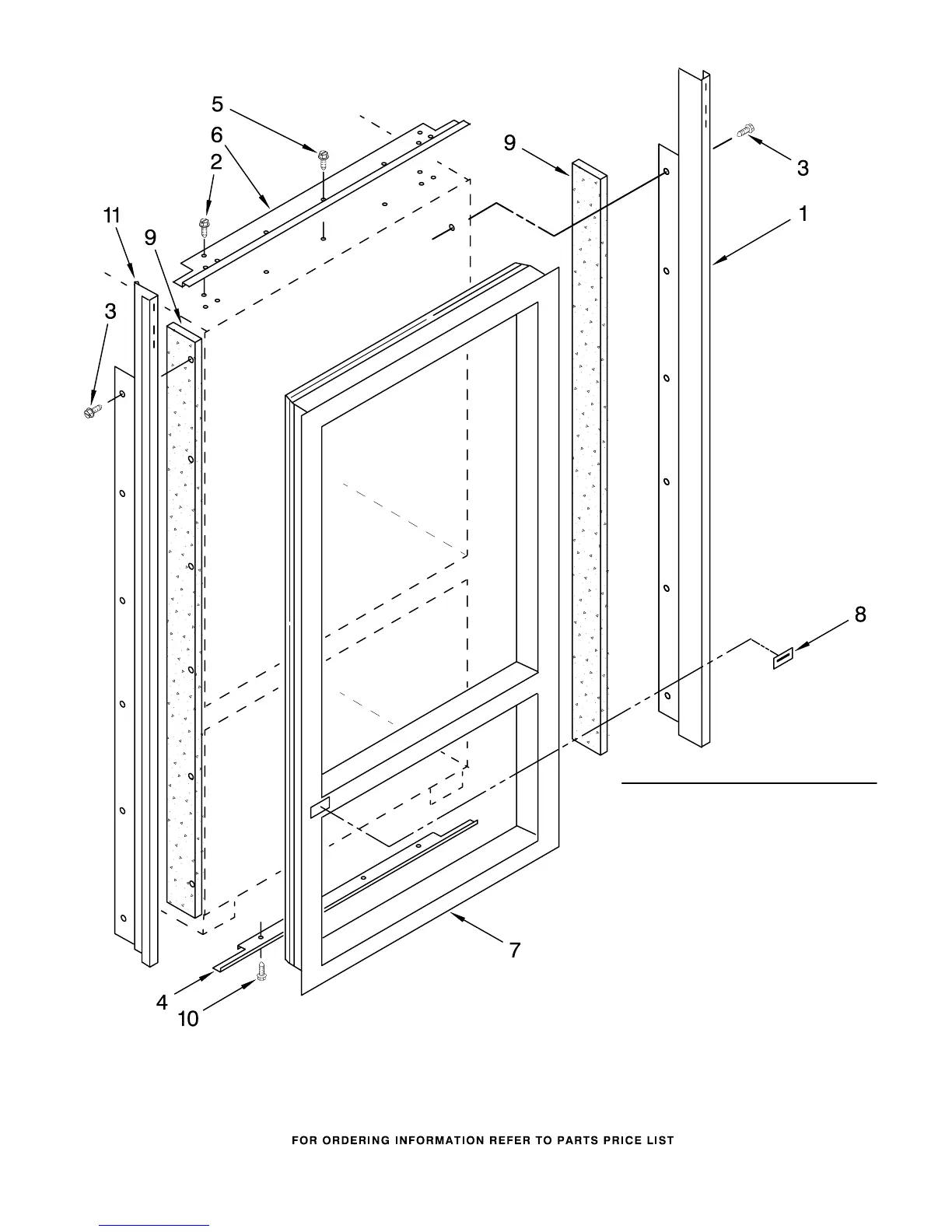

CABINET AND BREAKER TRIM PARTS
For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01
(Black) (Biscuit) (White)
4398948
Illus. Part
No. No. DESCRIPTION
1 Cabinet, Trim
Right Side
2209475B Black
2209475T Biscuit
2209475W White
2 2003857 Screw
3 1163283 Screw
487246 Repair, Screw
4 2209073 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003645 Cabinet, Trim Top
7 2005786 Breaker Trim
8 2005782 Cover, Hinge
9 2005925 Seal−Trim,
Side
10 489464 Screw
11 Cabinet, Trim
Left Side
2209485B Black
2209485T Biscuit
2209485W White
