KitchenAid KBLC36MHB01 - Page 4

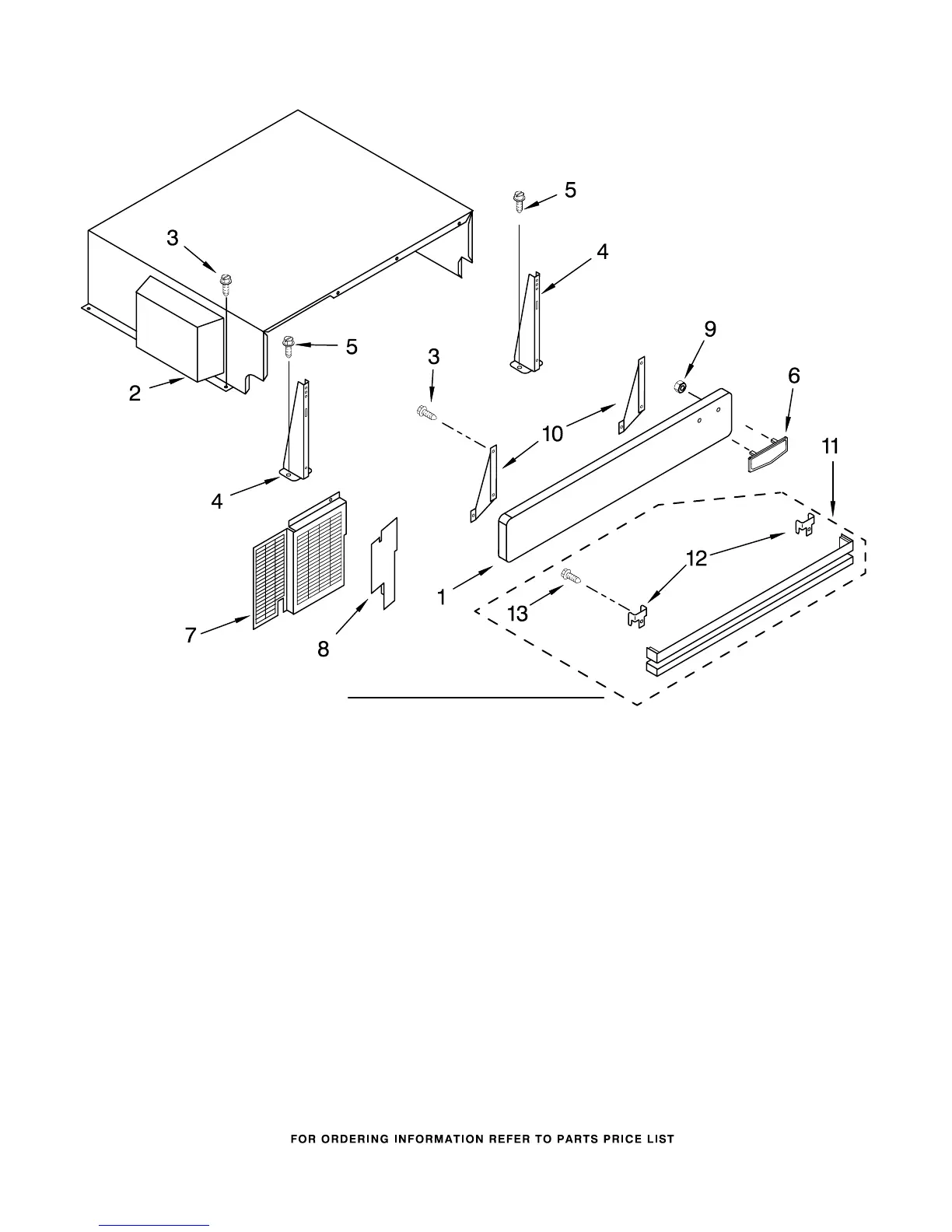

TOP GRILLE AND UNIT COVER PARTS
4
For Model: KBLC36MHB01, KBLC36MHT01, KBLC36MHW01
(Black) (Biscuit) (White)
4398948
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2209098B Black
2209098T Biscuit
2209098W White
2 2005549 Cover, Unit
3 488908 Screw
4 2002484 Grille, Bracket
5 2001415 Screw
6 Nameplate
2005292 Black
2209118T Biscuit
2209118W White
7 2005534 Guard, Compressor
Wiring
8 2006445 Baffle−Air,
Condenser
9 2004333 Nut
10 2005485 Bracket,
Trim Panel
11 Louver, Vent
2006195 Black
2006196 Biscuit
2006194 White
12 2005483 Bracket, Louver
13 488649 Screw
