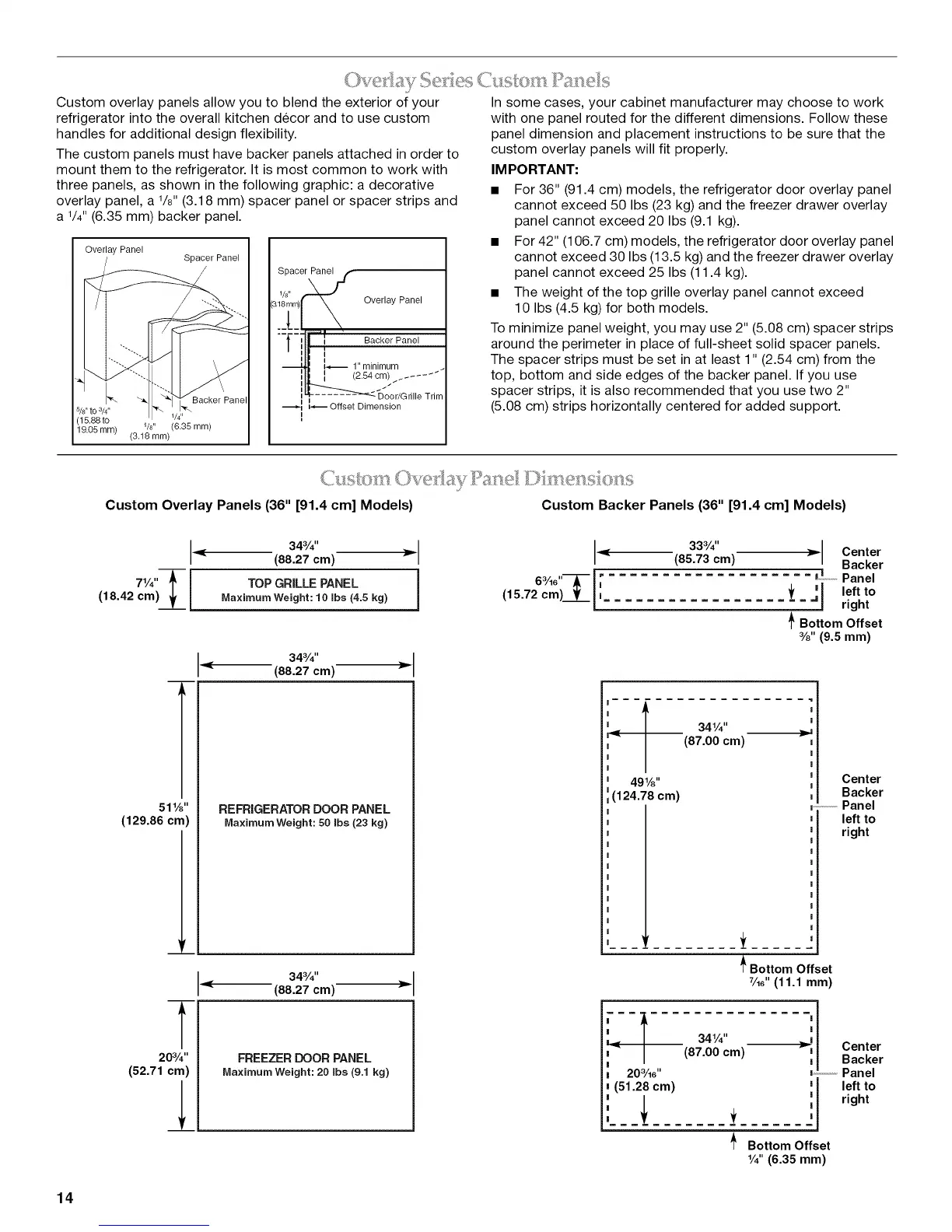

Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen decor and to use custom
handles for additional design flexibility.
The custom panels must have backer panels attached in order to
mount them to the refrigerator. It is most common to work with
three panels, as shown in the following graphic: a decorative
overlay panel, a 1/8"(3.18 mm) spacer panel or spacer strips and
a 1/4" (6.35 mm) backer panel.
Overlay Panel
Spacer Panel
5/s"to 3/4"
(15.88 to
19.05 ram)
Backer Panel
1/4"
1/s" (6.35 ram)
(3.18 ram)
I
Spacer
8i_ _ Over'ayPane'JS"
-i i
_ 1" minimum
i I /264cm .......
I _Deor/Grille Trim
-_ Offset Dimension
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.
IM PORTANT:
• For 36" (91.4 cm) models, the refrigerator door overlay panel
cannot exceed 50 Ibs (23 kg) and the freezer drawer overlay
panel cannot exceed 20 Ibs (9.1 kg).
• For 42" (106.7 cm) models, the refrigerator door overlay panel
cannot exceed 30 Ibs (13.5 kg) and the freezer drawer overlay
panel cannot exceed 25 Ibs (11.4 kg).
• The weight of the top grille overlay panel cannot exceed
10 Ibs (4.5 kg) for both models.
To minimize panel weight, you may use 2" (5.08 cm) spacer strips
around the perimeter in place of full-sheet solid spacer panels.
The spacer strips must be set in at least 1" (2.54 cm) from the
top, bottom and side edges of the backer panel. If you use
spacer strips, it is also recommended that you use two 2"
(5.08 cm) strips horizontally centered for added support.
Custom Overlay Panels (36" [91.4 cm] Models) Custom Backer Panels (36" [91.4 cm] Models)
343/4''
(88.27 cm) _- _ 333/4"(85.73 cm) _ Center
Backer
71/4"T I TOP GRILLE PANEL 1 6a/_e"---_- I_ _,o,o, Panel
MaximumWeight: 10 Ibs (4.5 kg) = right
(18.42cm) __hI (15.72 cm)_L [' _t _j leftto
_' Bottom Offset
%" (9.5 mm)
343/4"
(88.27 cm)
51W'
(129.86 cm)
'r
T
203/4''
(52.71 cm)
REFRIGERATOR DOOR PANEL
MaximumWeight: 50 Ibs (23 kg)
343/4 ''
(88.27 cm)
FREEZER DOOR PANEL
Maximum Weight: 20 robs(9.1 kg)
f
(87.00 cm)
49W'
(124.78 cm)
= =
t
_ Bottom Offset
Y_6"(11.1 mm)
--I
203/1e"
(51.28 cm)
Center
Backer
,,,,,,,,Panel
left to
right
34V4"
(87.00 cm)
I
Center
', Backer
Panel
I left to
I right
|
_ Bottom Offset
V4"(6.35 ram)
14
To Next Page
