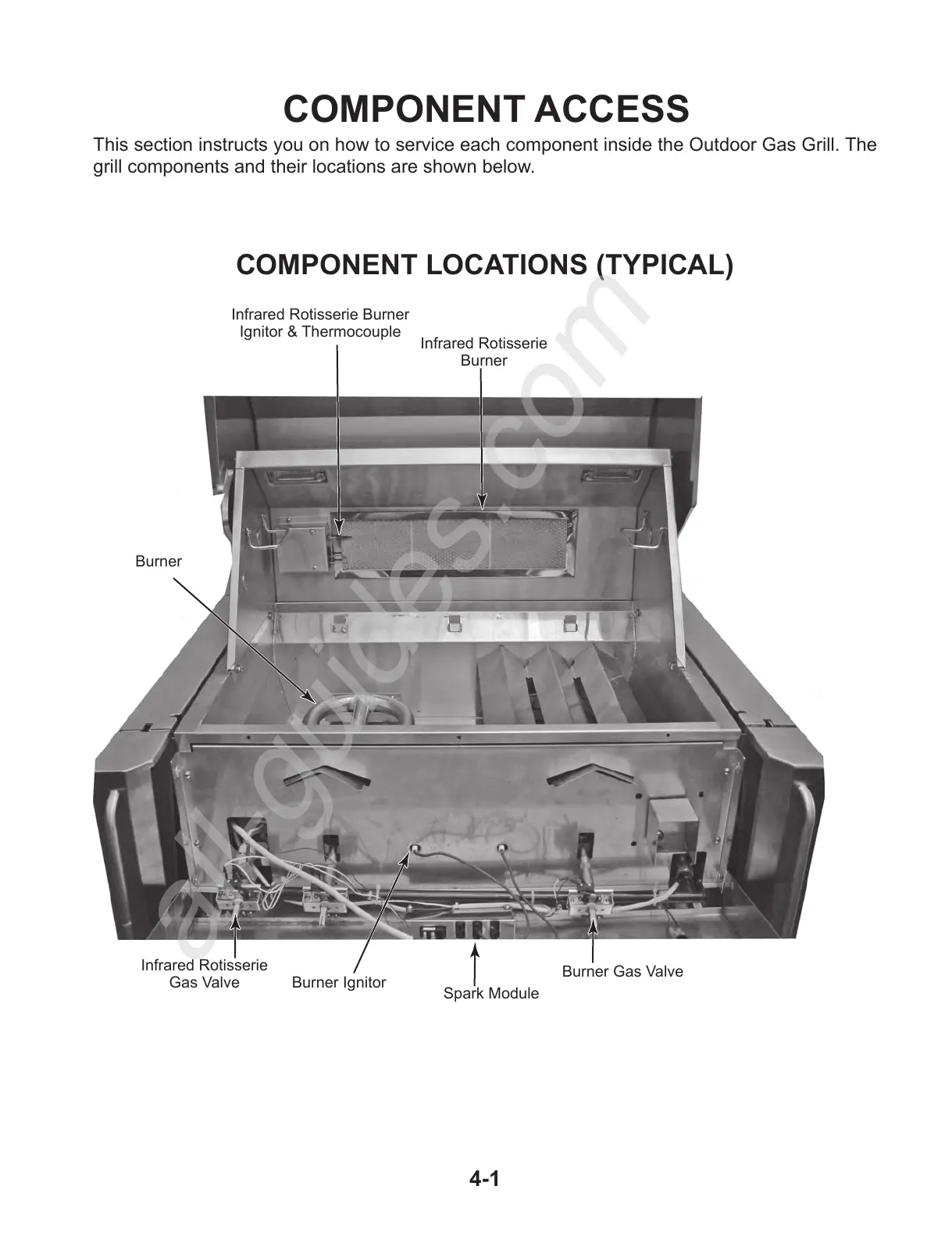

COMPONENT LOCATIONS (TYPICAL)
This section instructs you on how to service each component inside the Outdoor Gas Grill. The
grill components and their locations are shown below.
COMPONENT ACCESS
Infrared Rotisserie Burner
Ignitor & Thermocouple
Infrared Rotisserie
Burner
Infrared Rotisserie
Gas Valve
Spark Module
Burner Ignitor
Burner Gas Valve
Burner
