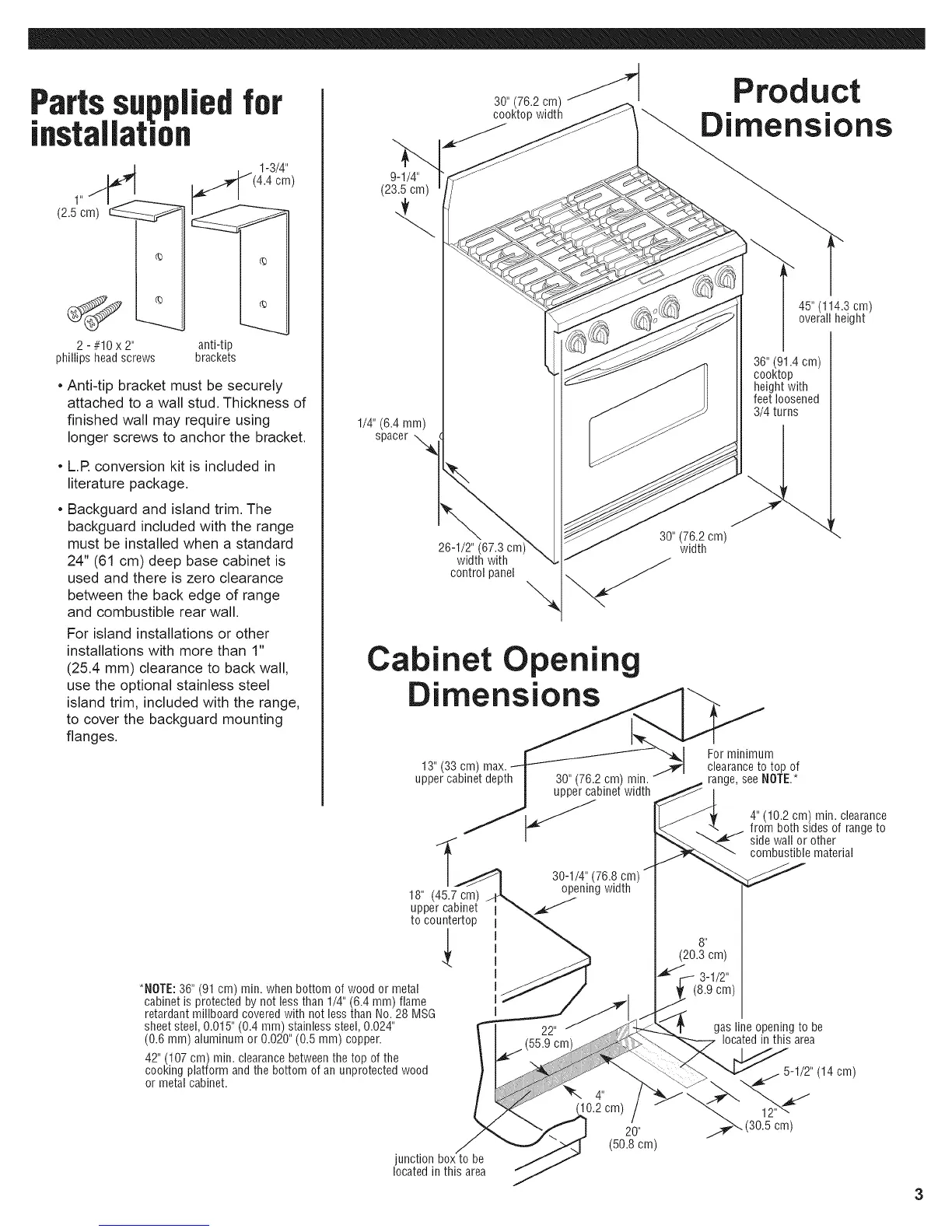

PartsSuppliedfor
installation
2 - #10 x 2"
phillips head screws
_ 1-3/4"
(44 cm)
anti-tip
brackets
Anti-tip bracket must be securely
attached to a wall stud. Thickness of
finished wall may require using
longer screws to anchor the bracket.
L.R conversion kit is included in
literature package.
Backguard and island trim. The
backguard included with the range
must be installed when a standard
24" (61 cm) deep base cabinet is
used and there is zero clearance
between the back edge of range
and combustible rear wall.
For island installations or other
installations with more than 1"
(25.4 mm) clearance to back wall,
use the optional stainless steel
island trim, included with the range,
to cover the backguard mounting
flanges.
30" (76.2 cm) f '
cooktop width
Product
Dimensions
9-1/4"
(23.5 cm)
1/4"(6.4ram)
spacer
26-1/2"
width with
control panel
\
30" (76.2 cm)
width
45"(114.3cm)
overallheight
36" (91.4 cm)
cooktop
height with
feet loosened
3/4 turns
Cabinet Opening
Dimensions
13" (33
upper cabinet depth
18" (45.7 cm)
upper cabinet
to countertop
30" (76.2 cm) min.
upper cabinet width
30-1/4" (76.8 cm)
opening width
Forminimum
clearancetotop of
range,seeNOTE.*
4" (10.2 cm) rain. clearance
from both sides of rangeto
side wall or other
combustible material
*NOTE: 36" (91 cm) rain. when bottom of wood or metal
cabinet is protected by not less than 1/4" (6.4 ram) flame
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 ram) stainless steel, 0.024"
(0.6 ram) aluminum or 0.020" (0.5 ram) copper.
42" (107 cm) rain. clearance between the top of the
cooking platform and the bottom of an unprotected wood
or metal cabinet.
junction be
located in this area
4"
).2 cm)
20"
(50.8 cm)
gas line opening to be
located in this area
5-1/2" (14 cm)
12"
/_r'_ (30.5 cm)
