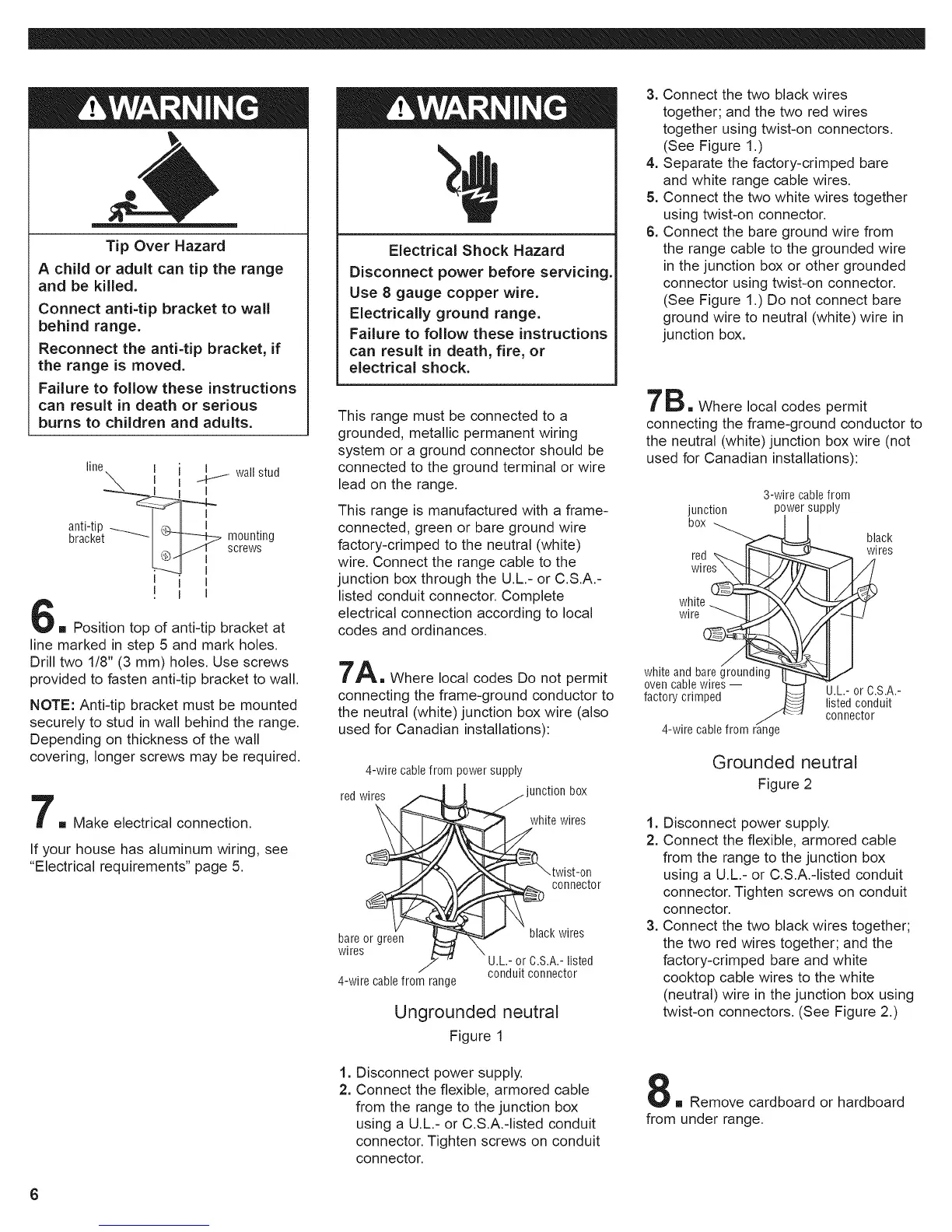

Tip Over Hazard
A child or adult can tip the range
and be killed.
Connect anti=tip bracket to wall
behind range.
Reconnect the anti=tip bracket, if
the range is moved.
Failure to follow these instructions
can result in death or serious
burns to children and adults.
lineI_ i _,,_wallstudl
anti-tip __
bracket mounting
screws
I
I
I i i
i i I
[] Position top of anti-tip bracket at
line marked in step 5 and mark holes.
Drill two 1/8" (3 mm) holes. Use screws
provided to fasten anti-tip bracket to wall.
NOTE: Anti-tip bracket must be mounted
securely to stud in wall behind the range.
Depending on thickness of the wall
covering, longer screws may be required.
_ Make electrical connection.
If your house has aluminum wiring, see
"Electrical requirements" page 5.
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground range.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
This range must be connected to a
grounded, metallic permanent wiring
system or a ground connector should be
connected to the ground terminal or wire
lead on the range.
This range is manufactured with a frame-
connected, green or bare ground wire
factory-crimped to the neutral (white)
wire. Connect the range cable to the
junction box through the U.L.- or C.S.A.-
listed conduit connector. Complete
electrical connection according to local
codes and ordinances.
A. Where local codes Do not permit
connecting the frame-ground conductor to
the neutral (white)junction box wire (also
used for Canadian installations):
4-wirecablefrom powersupply
redwires /,,_ [ /juncti0n box
hitewires
It J/'%, /_,,."<.1 \twist-0n
bare_ci:nirneel TM
wires _ \
,Y " U.L.-or C.S.A.-listed
conduitcon"_"'"_ _r, ect0r
4-wirecablefrom range
Ungrounded neutral
Figure 1
1. Disconnect power supply.
2. Connect the flexible, armored cable
from the range to the junction box
using a U.L.- or C.S.A.-listed conduit
connector. Tighten screws on conduit
connector.
3. Connect the two black wires
together; and the two red wires
together using twist-on connectors.
(See Figure 1.)
4. Separate the factory-crimped bare
and white range cable wires.
5. Connect the two white wires together
using twist-on connector.
6. Connect the bare ground wire from
the range cable to the grounded wire
in the junction box or other grounded
connector using twist-on connector.
(See Figure 1.) Do not connect bare
ground wire to neutral (white) wire in
junction box.
B, Where local codes permit
connecting the frame-ground conductor to
the neutral (white)junction box wire (not
used for Canadian installations):
junction
box
red
3-wire cable from
power supply
black
wires
white
wire
white and bare grounding
oven cablewires --
factory crimped
4-wire cable from range
U.L.-or C.S.A.-
listedconduit
connector
Grounded neutral
Figure 2
1. Disconnect power supply.
2. Connect the flexible, armored cable
from the range to the junction box
using a U.L.- or C.S.A.-listed conduit
connector. Tighten screws on conduit
connector.
3. Connect the two black wires together;
the two red wires together; and the
factory-crimped bare and white
cooktop cable wires to the white
(neutral) wire in the junction box using
twist-on connectors. (See Figure 2.)
[] Remove cardboard or hardboard
from under range.
