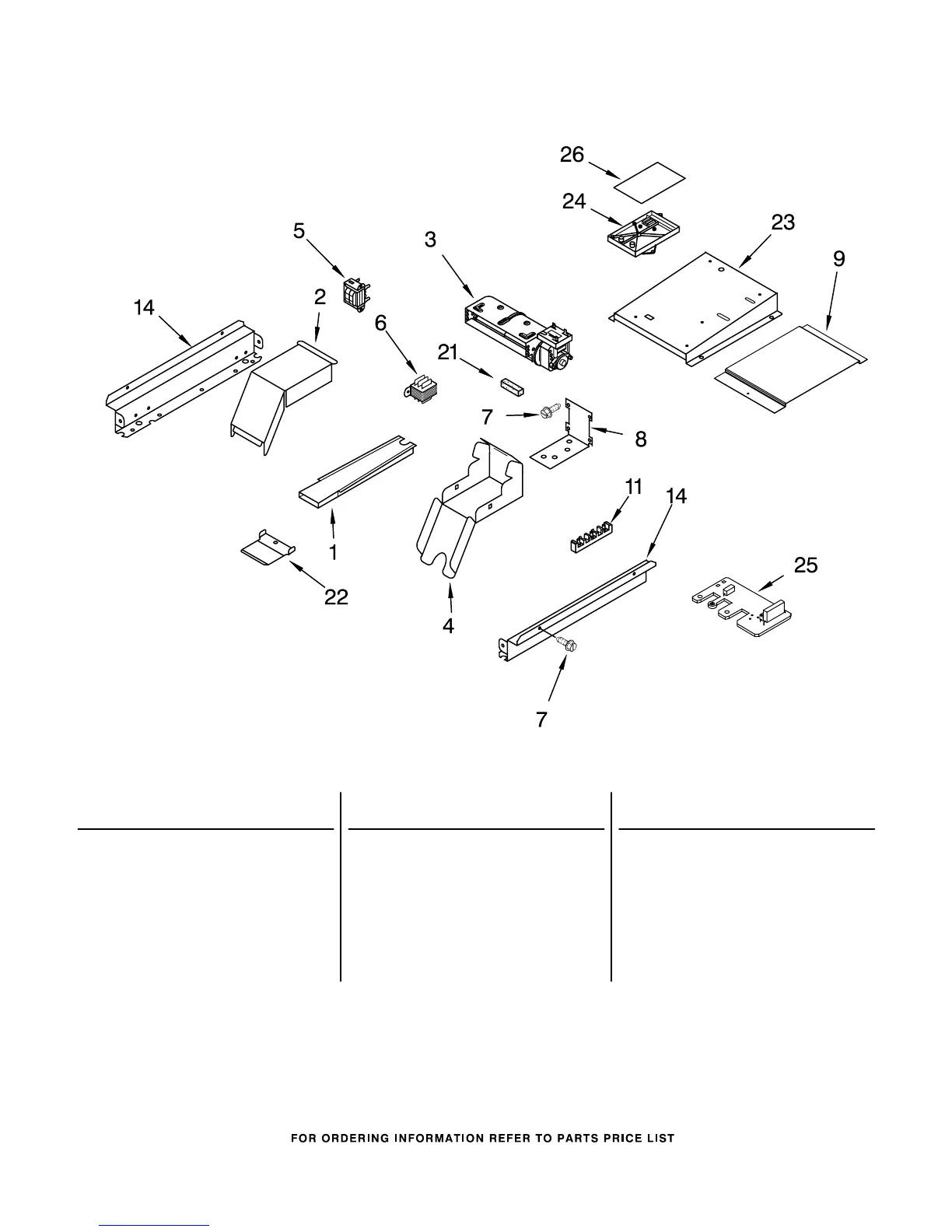

TOP VENTING PARTS
6
For Model:KDRP467KSS07
(Stainless Steel)
8186194
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 8300223 Blower 60MM
4449809 Screw (4)
3400015 Screw (1)
4 4455177 Elbow, Vent−Bottom
5 6610122 Transformer, Light
6 8300642 Transformer,
Control
7 4449809 Screw, 8−18 x 3/8
8 4455352 Bracket, Blower
9 8300801 Bracket, Control
Mounting Bottom
11 4449868 Block, Terminal
14 4452442 Side, Control Top
21 4451758 Seal, Foam
22 4452489 Deflector, Vent
Box
23 4456527 Bracket, Control
Mounting
24 8302210 Control, Zodiac
25 4451985 Suppressor
3400080 Screw (4)
26 4453207 Insulator,
Control Board
