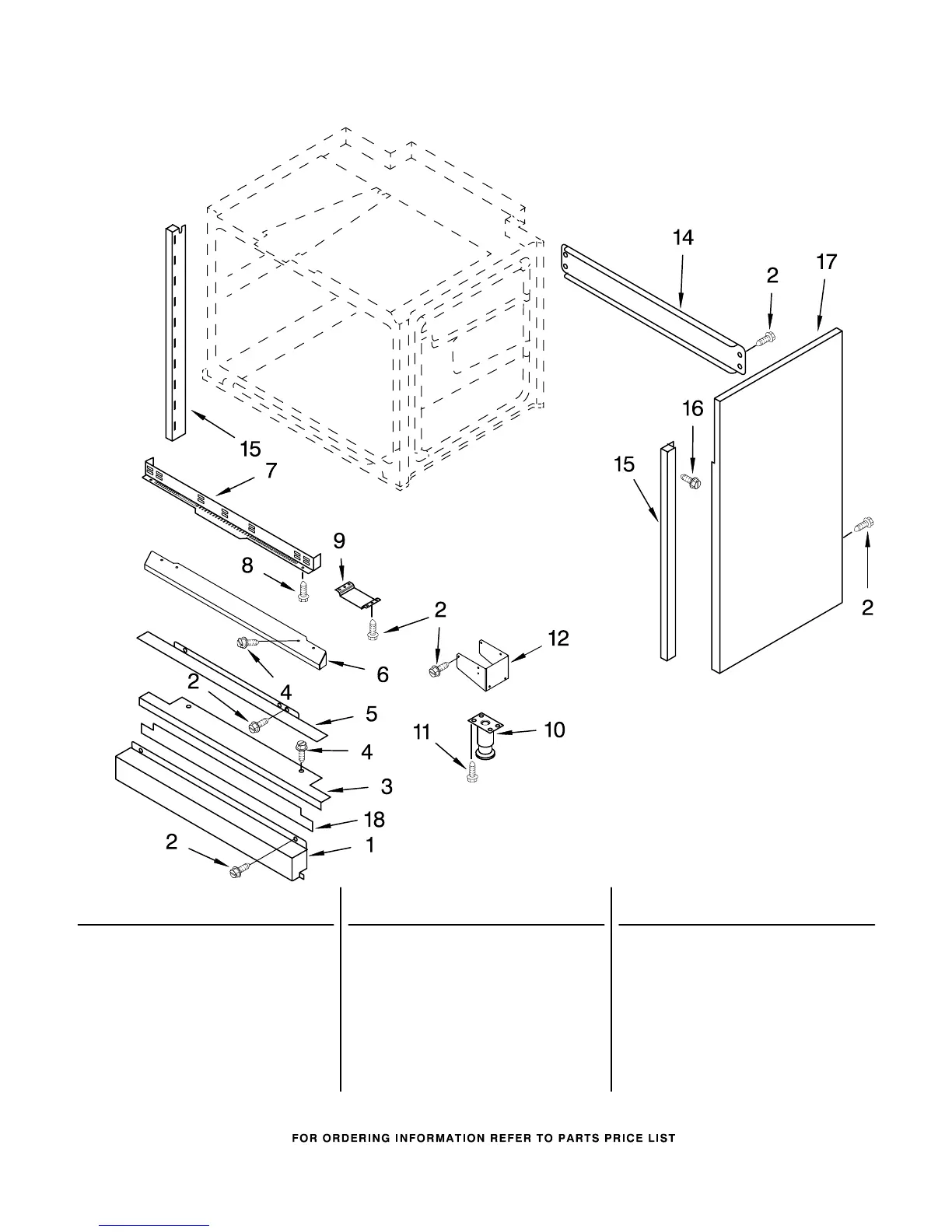

CHASSIS PARTS
For Model:KDRP467KSS07
(Stainless Steel)
8186194
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4452803 Vent, Bottom
Lower
2 4449809 Screw, 8−18 x 3/8
3 4453329 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 4452801 Deflector, Center
6 8300978 Vent, Bottom Upper
7 4455983 Vent, Center
4453327 Gasket
3400805 Screw (4)
8 3196537 Screw, 8−18 x 3/8
9 4455604 Bracket, Mounting
Regulator
10 4452430 Foot Assembly
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
14 4452434 Brace, Rear
15 Trim, Front
4452804 Right Side
4453205 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
4452418 Right Side
4452419 Left Side
18 8300154 Insulation
