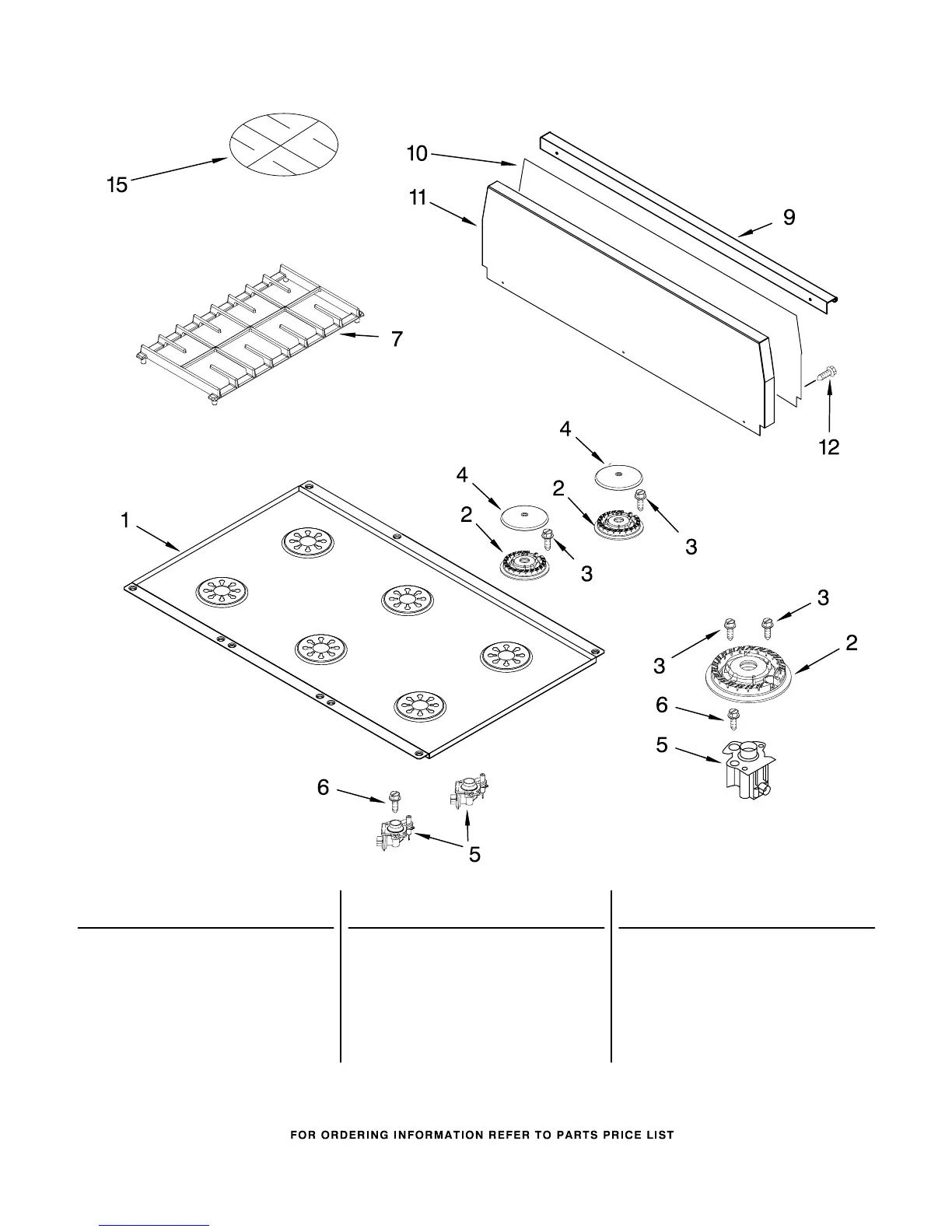

COOKTOP PARTS
For Model:KDRP467KSS07
(Stainless Steel)
8186194
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4456865 Cooktop
2 Burner Head
4455849 (Turbi)
4455979 (Auxi)
3 3368921 Screw, 7−18 x 3/4
4 Cap, Burner
4455243 (14K)
8284669 (6K)
5 Orifice Holder
4456622 Turbi
4456920 Auxi
(Includes Orific &
Ignitor)
3400843 Screw
6 3177991 Screw, 8−18 x 1/4
7 4454963 Grate, Burner
9 4454962 Trim, Island
10 8284712 Support,
Backsplash
11 4454960 Trim, Backsplash
12 3400837 Screw, 8−18 x 3/8
15 4455109 Plate, Simmer
