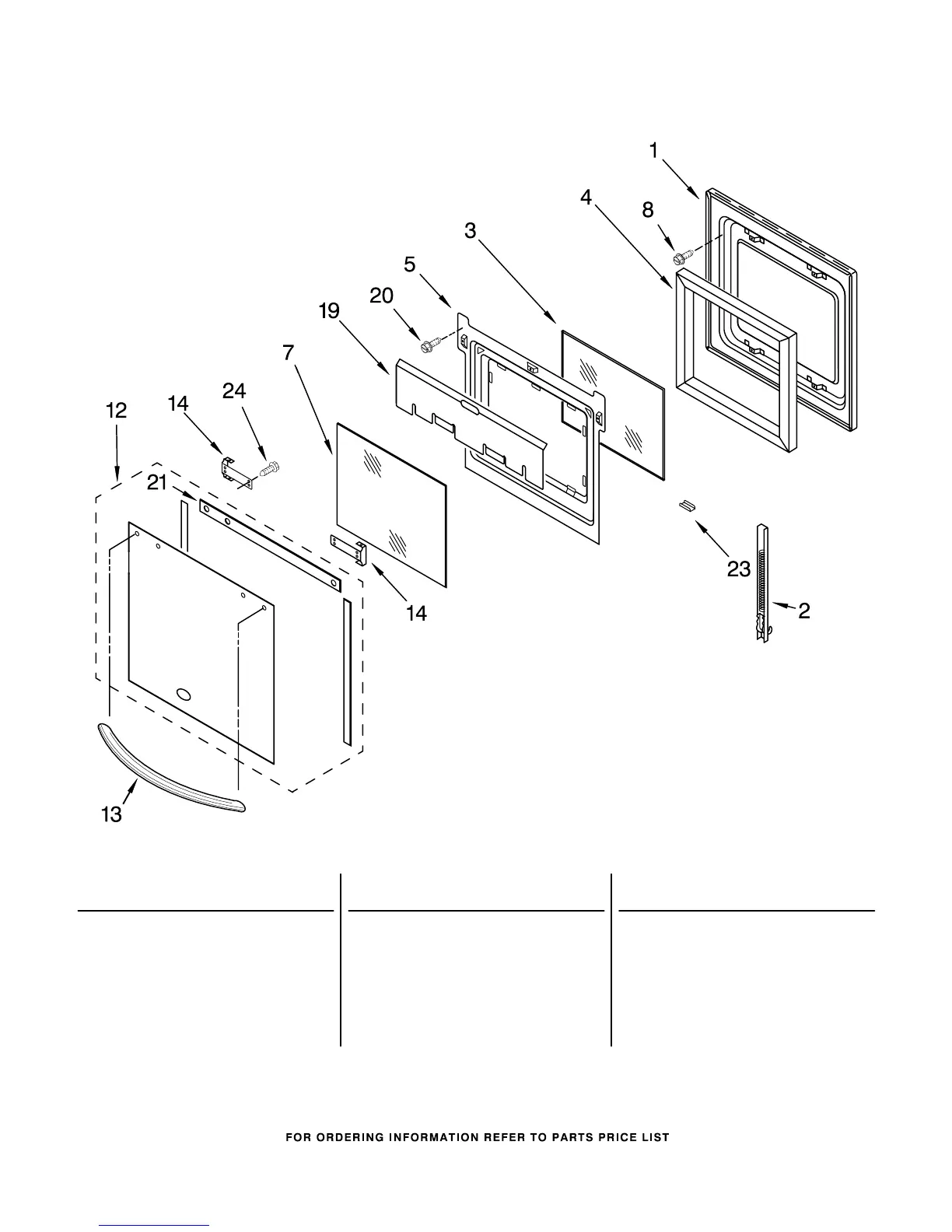

OVEN DOOR PARTS
3
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4455616 Door Liner
2 Hinge, Door
8300571 R.Side
8300572 L.Side
3 4449251 Glass, Inner
4 4451720 Insulation, Door
5 8300776 Retainer, Glass
7 4449247 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
12 8301257 Assy, Door Glass
13 8301255 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
19 4450360 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 8300853 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548
