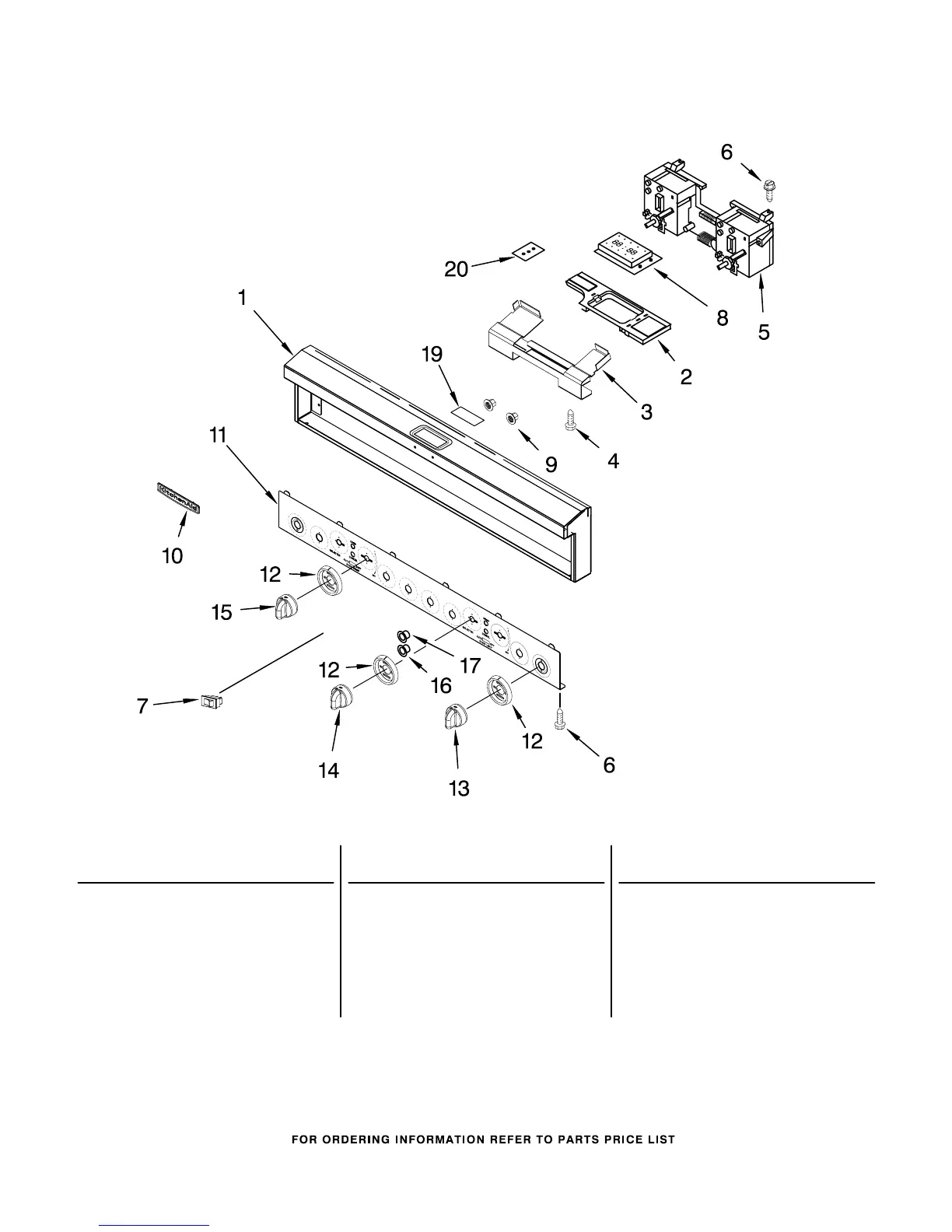

CONTROL PANEL PARTS
5
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 8301149 Panel, Control
2 4453000 Bracket, Display
3 4457171 Display, Mounting
Bracket
4 3196537 Screw, 8−18 x 3/8
5 8300203 Control, Zodiac
6 4449899 Screw, 6−19 x 1
7 4452842 Switch, Rocker
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 8301260 Face, Control
Panel
12 4455192 Bezel, Knob
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
4457278 Jumper, Wire
17 4452997 Button, Enter
19 4455806 Glass, Display
20 3192439 Seal, Limiter
