KitchenAid KDRP487MSS01 - Cooktop Parts

7

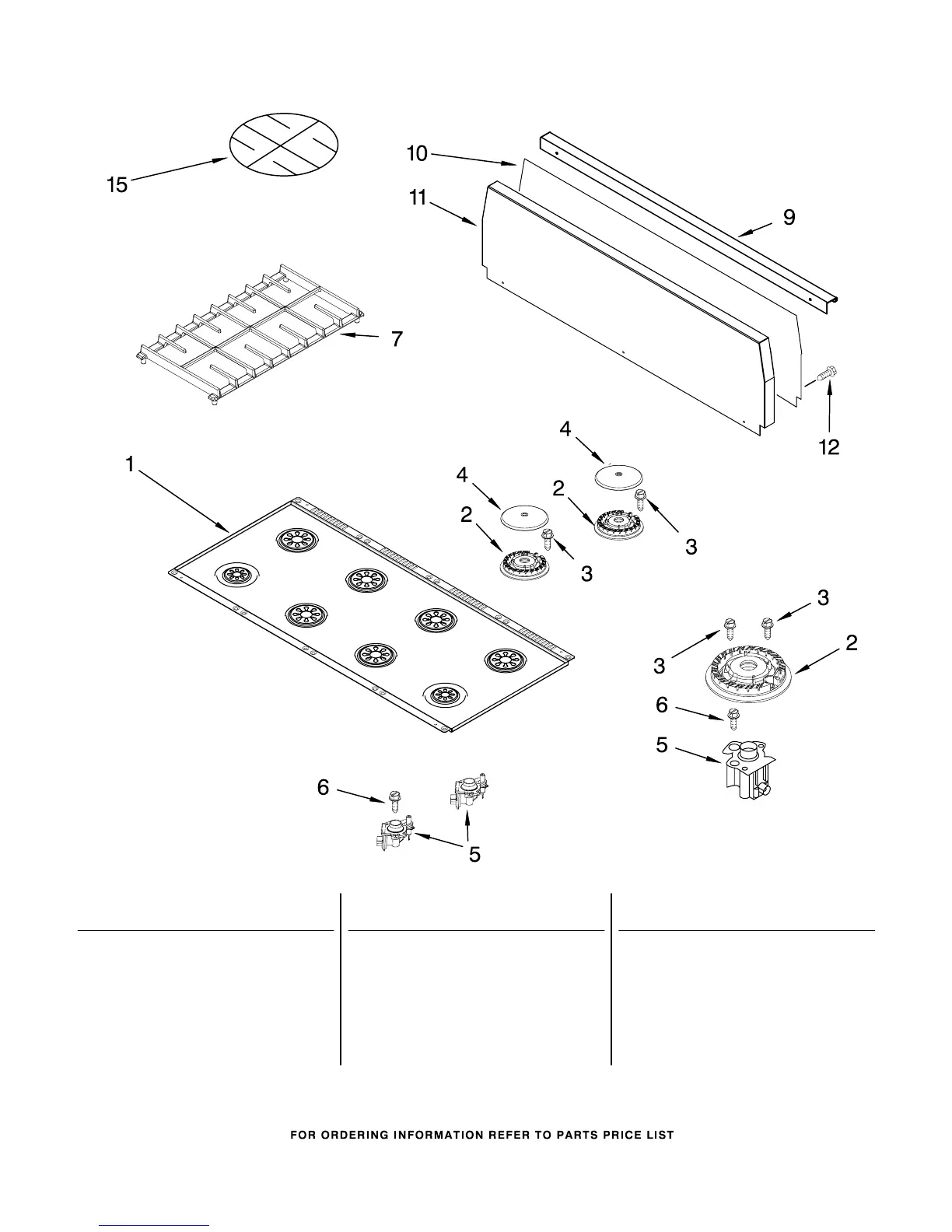

COOKTOP PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 8302148 Cooktop
2 Burner Head
4455849 (Turbi)
4455979 (Auxi)
3 3368921 Screw, 7−18 x 3/4
4 Cap, Burner
4455243 (14K)
8284669 (6K)
5 Orifice Holder
(Includes Orific &
Ignitor)
4456622 Turbi
4456920 Auxi
3400843 Screw
6 3177991 Screw, 8−18 x 1/4
7 4454963 Grate, Burner
9 8302389 Trim, Island
10 8302527 Support,
Backsplash
11 8302391 Trim, Backsplash
12 3400837 Screw, 8−18 x 3/8
15 4455109 Plate, Simmer
