KitchenAid KDRP487MSS01 - Page 8

8

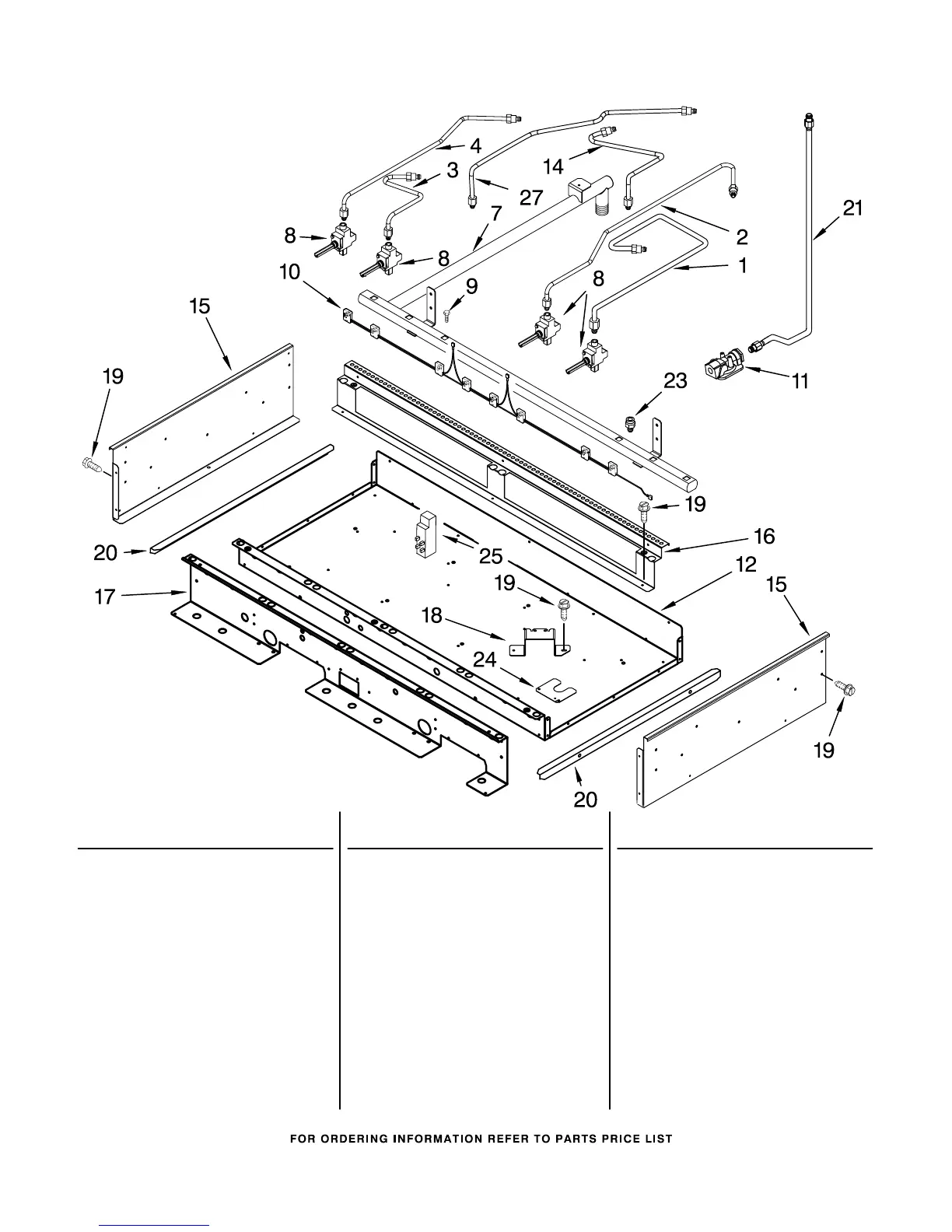

BURNER BOX AND MANIFOLD PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Tubing, Gas
8300231 Burner − RF
4455078 30"
8301938 Center Right
2 8302040 Tubing, Gas
Burner − RR
3 8300187 Tubing, Gas
Burner − LF
4 8300188 Tubing, Gas
Burner − LR
7 8301188 Manifold Assembly
Right Side
8 Valve, Burner
4456818 (Bronze)
4456816 (Red)
8523704 Bolt (4)
9 3185829 Bolt, Gas Valve
10 4457318 Burner Switch &
Harness Assembly
3191387 Seal, Switch
11 4453033 Pressure Regulator
12 4457256 Box, Burner
14 8301937 Tubing, Gas
Burner − CF
15 Side, Burner Box
8285487 Right Side
8285488 Left Side
16 4457314 Support, Rear
17 4457255 Support, Cooktop
18 3192811 Bracket, Burner
19 3177991 Screw, 8−18 x 1/4
20 4454974 Rail, Support
RH & LH
21 8302193 Tube, Manifold
23 Adapter
4453116 1/2" Female
4453115 1/2" Male
4450118 Nut, 6−32 U Type
24 8301589 Cover, Manifold
Slot
25 8522426 Module, Spark
27 8301936 Tubing, Gas
Burner − CR
