9

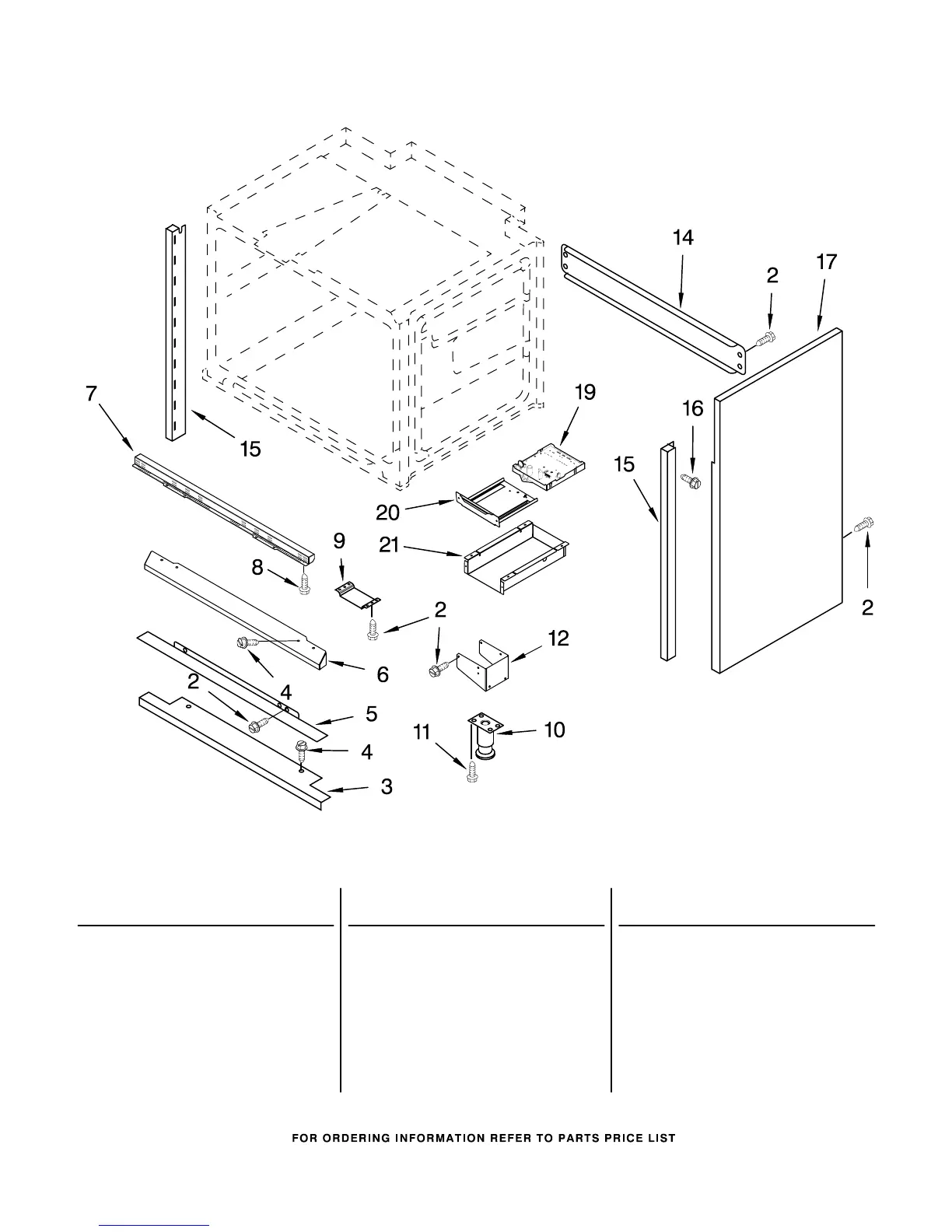

CHASSIS PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
2 4449809 Screw, 8−18 x 3/8
3 8301141 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 8301137 Deflector, Center
6 8301138 Vent, Bottom Upper
7 8302545 Vent, Center
8301576 Gasket
313806 Screw (4)
8 3196537 Screw, 8−18 x 3/8
9 4455604 Bracket, Mounting
Regulator
10 4452430 Foot Assembly
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
14 8301135 Brace, Rear
15 Trim, Front
8301133 Right Side
8301134 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
8301131 Right Side
8301132 Left Side
19 8301195 Control, Master
20 8302528 Box, Control
21 8301577 Bracket, Control
Box
To Next Page
