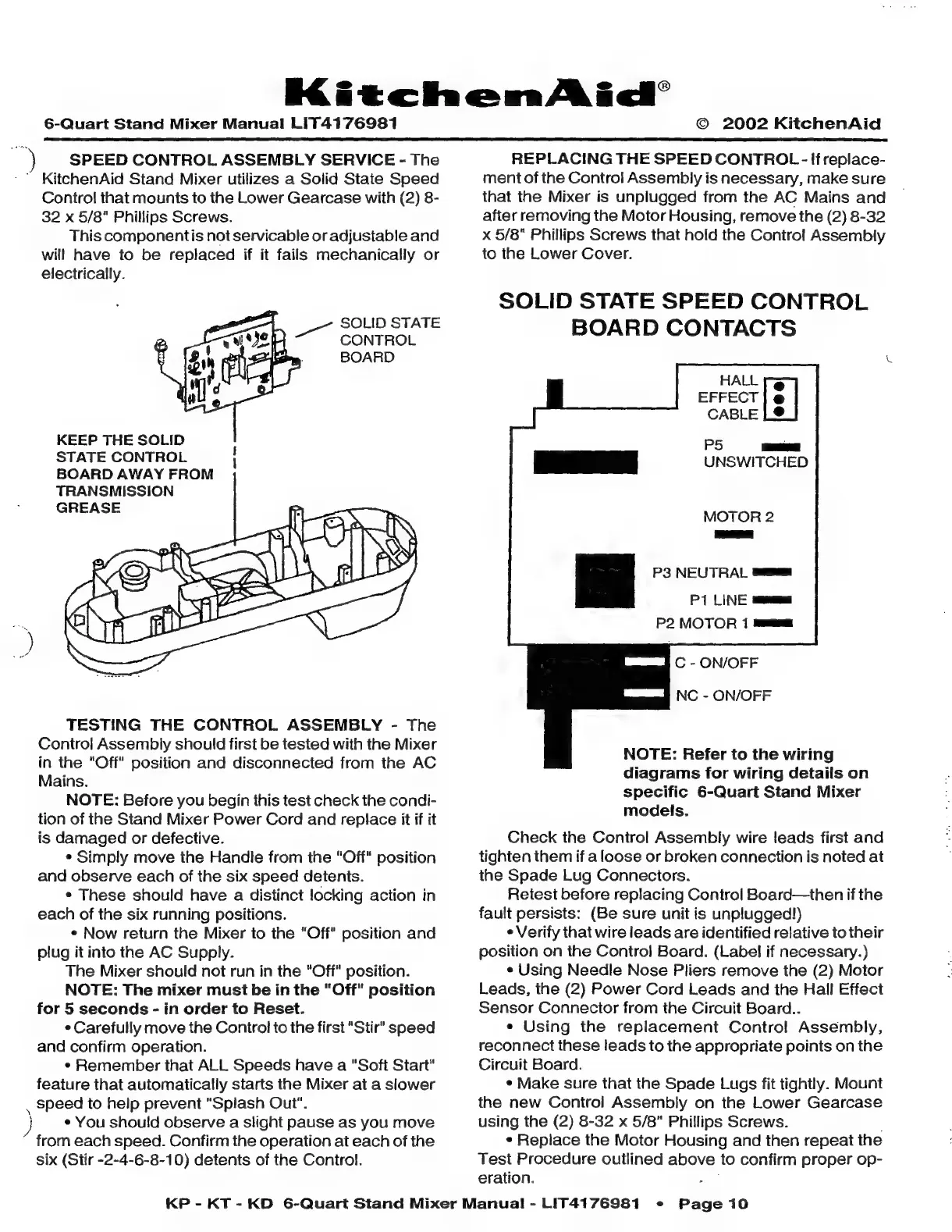

KitchenAid
SPEED
CONTROL
ASSEMBLY
SERVICE
-
The
KitchenAid
Stand
Mixer
utilizes
a
Solid
State
Speed
Control
that
mounts
to
the
Lower
Gearcase
with
(2)
8-
32
x
5/8"
Phillips
Screws.
This
componentis
not
servicable
or
adjustable
and
will
have
to
be
replaced
if
it
fails
mechanically
or
electrically.
SOLID
STATE
CONTROL
BOARD
.
KEEP
THE
SOLID
STATE
CONTROL
BOARD
AWAY
FROM
TRANSMISSION
GREASE
TESTING
THE
CONTROL
ASSEMBLY
-
The
Control
Assembly
should
first
be
tested
with
the
Mixer
in
the
"Off"
position
and
disconnected
from
the
AC
Mains.
NOTE:
Before
you
begin
this
test
check
the
condi-
tion
of
the
Stand
Mixer
Power
Cord
and
replace
it if
it
is
damaged
or
defective.
e
Simply
move
the
Handle
from
the
"Off"
position
and
observe
each
of
the
six
speed
detents.
*
These
should
have
a
distinct
locking
action
in
each
of
the
six
running
positions.
*
Now
return
the
Mixer
to
the
"Off"
position
and
plug
it
into
the
AC
Supply.
The
Mixer
should
not
run
in
the
"Off"
position.
NOTE:
The
mixer
must
be
in
the
"Off"
position
for
5
seconds
-
in
order
to
Reset.
*
Carefully
move
the
Controlto
the
first
"Stir"
speed
and
confirm
operation.
*
Remember
that
ALL
Speeds
have
a
"Soft
Start"
feature
that
automatically
starts
the
Mixer
at
a
slower
speed
to
help
prevent
"Splash
Out".
*
You
should
observe
a
slight
pause
as
you
move
'
from
each
speed.
Confirm
the
operation
at
each
of
the
six
(Stir
-2-4-6-8-10)
detents
of
the
Control.
REPLACING
THE
SPEED
CONTROL
-
If
replace-
ment
of
the
Control
Assembly
is
necessary,
make
sure
that
the
Mixer
is
unplugged
from
the
AC
Mains
and
after
removing
the
Motor
Housing,
remove
the
(2)
8-32
x
5/8"
Phillips
Screws
that
hold
the
Control
Assembly
to
the
Lower
Cover.
SOLID
STATE
SPEED
CONTROL
BOARD
CONTACTS
HALL
EFFECT
H
CABLE
P5
[2]
UNSWITCHED
Lad
C
-
ON/OFF
MOTOR
2
HERE]
P3
NEUTRAL
mmm
P1
LINE
mmm
P2
MOTOR
1
mum
maux]
NC
-
ON/OFF
NOTE:
Refer
to
the
wiring
diagrams
for
wiring
details
on
specific
6-Quart
Stand
Mixer
models.
Check
the
Control
Assembly
wire
leads
first
and
tighten
them
if
a
loose
or
broken
connection
is
noted
at
the
Spade
Lug
Connectors.
Retest
before
replacing
Control
Board—then
if
the
fault
persists:
(Be
sure
unit
is
unplugged!)
*
Verify
that
wire
leads
are
identified
relative
totheir
position
on
the
Control
Board.
(Label
if
necessary.)
*
Using
Needle
Nose
Pliers
remove
the
(2)
Motor
Leads,
the
(2)
Power
Cord
Leads
and
the
Hall
Effect
Sensor
Connector
from
the
Circuit
Board..
*
Using
the
replacement
Control
Assembly,
reconnect
these
leads
to
the
appropriate
points
on
the
Circuit
Board.
*
Make
sure
that
the
Spade
Lugs
fit
tightly.
Mount
the
new
Control
Assembly
on
the
Lower
Gearcase
using
the
(2)
8-32
x
5/8"
Phillips
Screws.
*
Replace
the
Motor
Housing
and
then
repeat
the
Test
Procedure
outlined
above
to
confirm
proper
op-
eration.
"E
KP
-
KT
-
KD
6-Quart
Stand
Mixer
Manual
-
LIT4176981
¢
Page
10
