KitchenAid KP - Wiring Diagram: Mixer Domestic;Canadian WKO8-WL45

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid

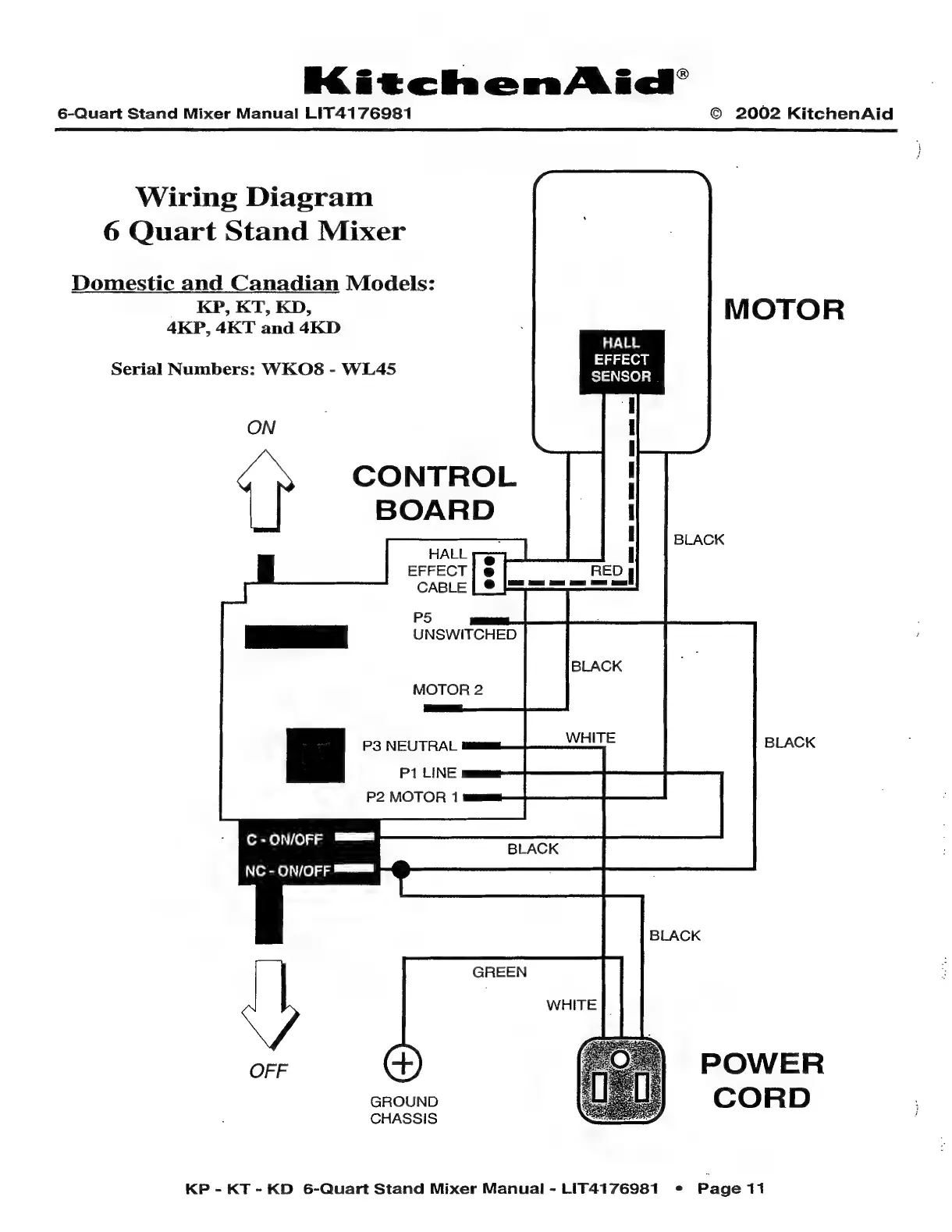

Wiring Diagram
6 Quart Stand Mixer
Domestic and Canadian Models:
KP, KT, KD,
4KP, 4KT and 4KD
MOTOR
HALL
:
EFFECT
Serial
Numbers:
WKO8
-
WL45
SENSOR
ON .—
CONTROL
ES =
P3 NEUTRAL
P1 LINE
P2 MOTOR 1
C-ON/OFF =
NC - ON/OFF mmm
POWER
CORD
GROUND
CHASSIS
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 11
