B
Fi
o

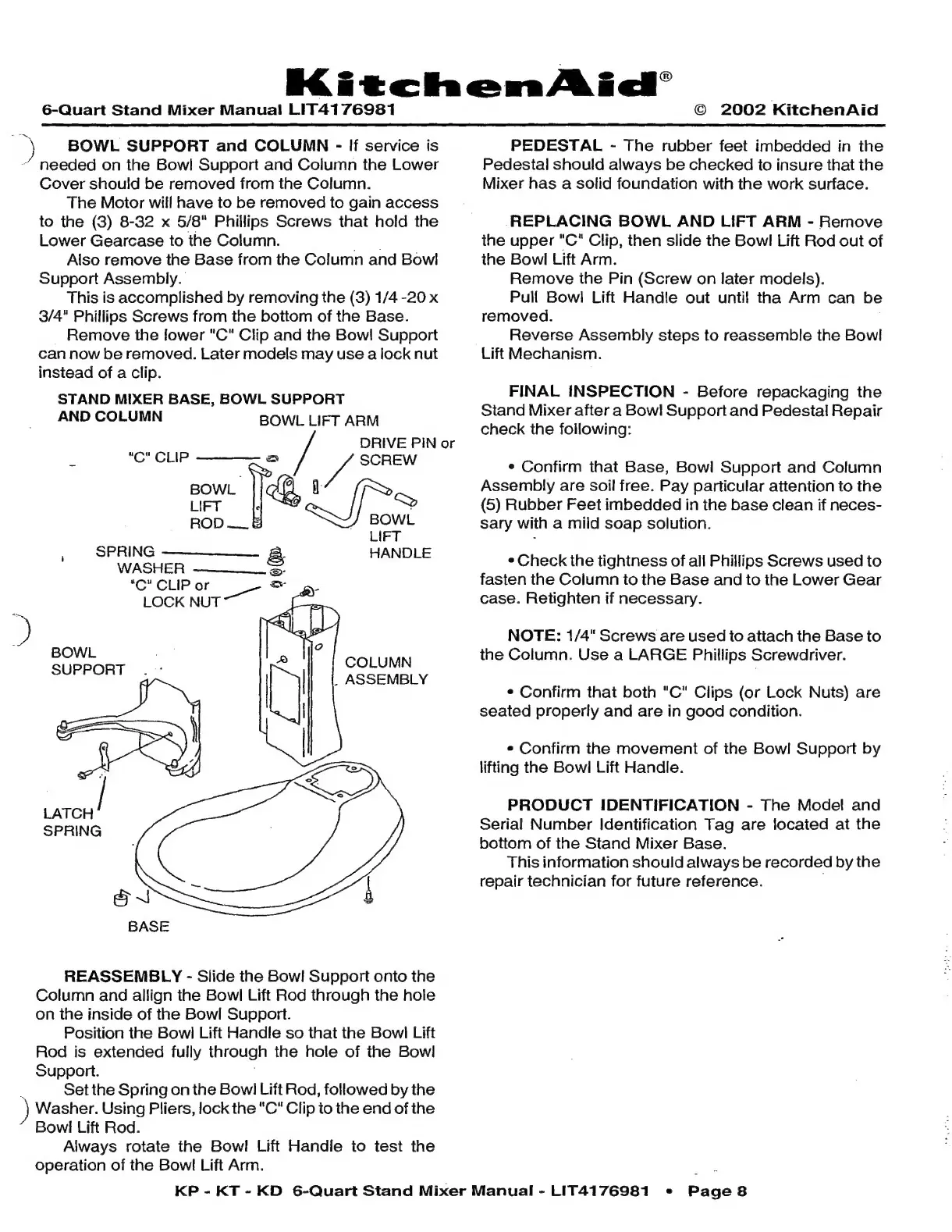

KitchenAid
6-Quart
Stand
Mixer
Manual
LIT4176981
©
2002
KitchenAid
BOWL
SUPPORT
and
COLUMN
-
If
service
is
needed
on
the
Bowl
Support
and
Column
the
Lower
Cover
should
be
removed
from
the
Column.
The
Motor
will
have
to
be
removed
to
gain
access
to
the
(3)
8-32
x
5/8"
Phillips
Screws
that
hold
the
Lower
Gearcase
to
the
Column.
mE
Also
remove
the
Base
from
the
Column
and
Bowl
Support
Assembly.
This
is
accomplished
by
removing
the
(3)
1/4
-20
x
3/4"
Phillips
Screws
from
the
bottom
of
the
Base.
Remove
the
lower
"C"
Clip
and
the
Bow!
Support
can
now
be
removed.
Later
models
may
use
a
lock
nut
instead
of
a
clip.
STAND
MIXER
BASE,
BOWL
SUPPORT
AND
COLUMN
a
LIFT
ARM
DRIVE
PIN
or
|
"C"
CLIP
——
/
/
SCREW
sow.
EIU
LIFT
ROD
a
Ses
LIFT
,
SPRING
HANDLE
WASHER
"C"
CLIP
or
LOCK
NUT
BOWL
SUPPORT
COLUMN
_
ASSEMBLY
LATCH
SPRING
REASSEMBLY
-
Slide
the
Bowl
Support
onto
the
Column
and
allign
the
Bowl
Lift
Rod
through
the
hole
on
the
inside
of
the
Bowl
Support.
Position
the
Bowl
Lift
Handle
so
that
the
Bowl
Lift
Rod
is
extended
fully
through
the
hole
of
the
Bowl
Support.
Set
the
Spring
on
the
Bowl
Lift
Rod,
followed
by
the
Washer.
Using
Pliers,
lock
the
"C"
Clip
to
the
end
of
the
Bowl
Lift
Rod.
Always
rotate
the
Bowl
Lift
Handle
to
test
the
operation
of
the
Bowl
Lift
Arm.
KP
-
KT
-
KD
6-Quart
Stand
Mixer
Manual
-
LIT4176981
œ
PEDESTAL
-
The
rubber
feet
imbedded
in
the
Pedestal
should
always
be
checked
to
insure
that
the
Mixer
has
a
solid
foundation
with
the
work
surface.
REPLACING
BOWL
AND
LIFT
ARM
-
Remove
the
upper
"C"
Clip,
then
slide
the
Bowl
Lift
Rod
out
of
the
Bowl
Lift
Arm.
Remove
the
Pin
(Screw
on
later
models).
Pull
Bowl
Lift
Handle
out
until
tha
Arm
can
be
removed.
Reverse
Assembly
steps
to
reassemble
the
Bowl
Lift
Mechanism.
FINAL
INSPECTION
-
Before
repackaging
the
Stand
Mixer
after
a
Bowl
Support
and
Pedestal
Repair
check
the
foilowing:
*
Confirm
that
Base,
Bowl
Support
and
Column
Assembly
are
soil
free.
Pay
particular
attention
to
the
(5)
Rubber
Feet
imbedded
in
the
base
clean
if
neces-
sary
with
a
mild
soap
solution.
*
Checkthe
tightness
of
ali
Phillips
Screws
used
to
fasten
the
Column
to
the
Base
and
to
the
Lower
Gear
case.
Retighten
if
necessary.
NOTE:
1/4"
Screws
are
used
to
attach
the
Base
to
the
Column.
Use
a
LARGE
Phillips
Screwdriver.
e
Confirm
that
both
"C"
Clips
(or
Lock
Nuts)
are
seated
properly
and
are
in
good
condition.
e
Confirm
the
movement
of
the
Bowl
Support
by
lifting
the
Bowl
Lift
Handle.
PRODUCT
IDENTIFICATION
-
The
Model
and
Serial
Number
Identification
Tag
are
located
at
the
bottom
of
the
Stand
Mixer
Base.
This
information
should
always
be
recorded
by
the
repair
technicían
for
future
reference.
l
Page
8
