MitchenAic*
7
6-Quart
Stand
Mixer
Manual
LIT4176981
© 2002 KitchenAid

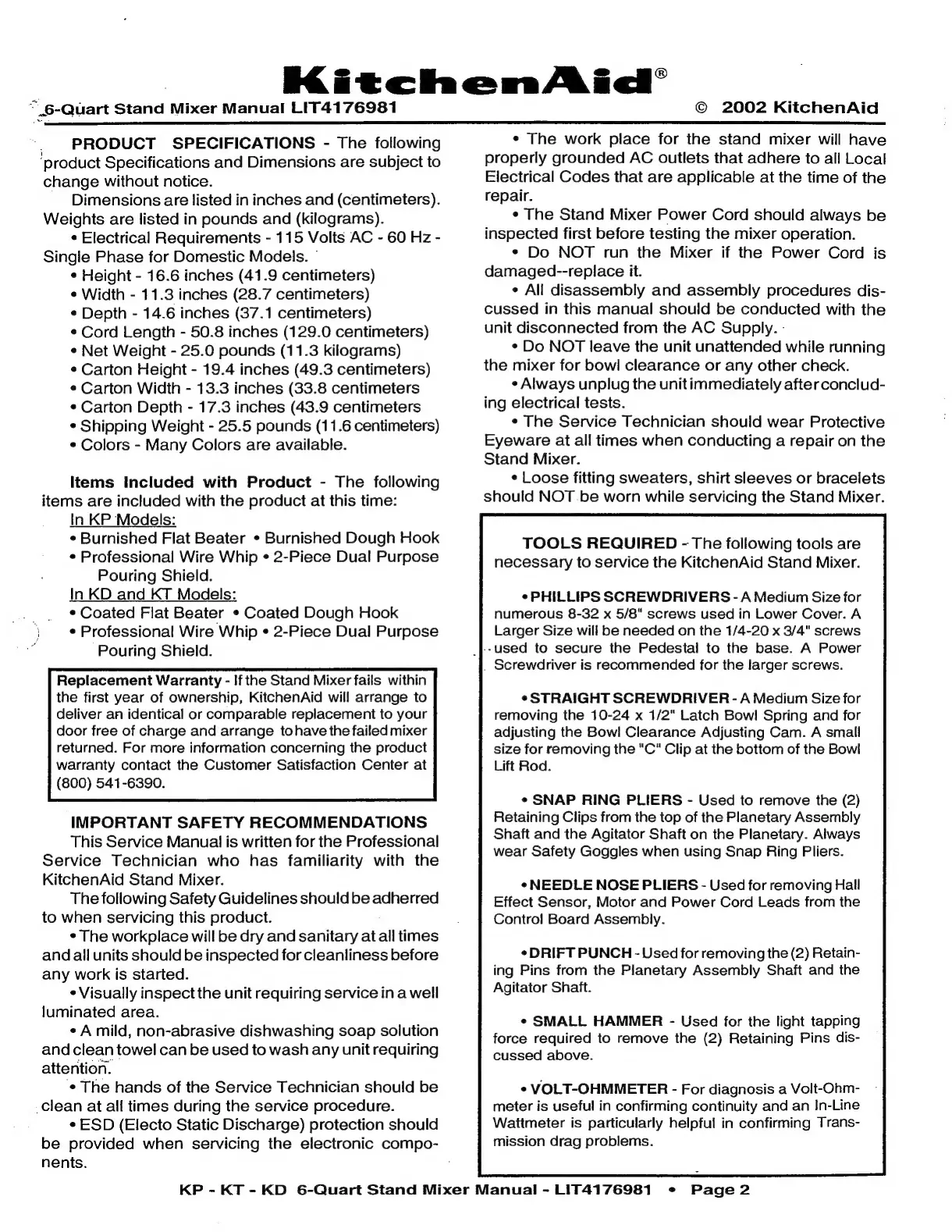

PRODUCT SPECIFICATIONS - The following
‘product Specifications and Dimensions are subject to
change without notice.
Dimensions are listed in inches and (centimeters).
Weights are listed in pounds and (kilograms).
* Electrical Requirements - 115 Volts AC - 60 Hz -
Single Phase for Domestic Models. —
* Height - 16.6 inches (41.9 centimeters)
* Width - 11.3 inches (28.7 centimeters)
* Depth - 14.6 inches (37.1 centimeters)
* Cord Length - 50.8 inches (129.0 centimeters)
* Net Weight - 25.0 pounds (11.3 kilograms)
* Carton Height - 19.4 inches (49.3 centimeters)
* Carton Width - 13.3 inches (33.8 centimeters
* Carton Depth - 17.3 inches (43.9 centimeters
* Shipping Weight - 25.5 pounds (11.6 centimeters)
* Colors - Many Colors are available.
Items included with Product - The following
items are included with the product at this time:
In KP Models:
* Burnished Flat Beater * Burnished Dough Hook
* Professional Wire Whip * 2-Piece Dual Purpose
Pouring Shield.
In KD and KT Models:
.. . *OCoated Flat Beater *« Coated Dough Hook
i e Professional Wire Whip * 2-Piece Dual Purpose
‘Pouring Shield.
Replacement Warranty - If the Stand Mixer fails within
the first year of ownership, KitchenAid will arrange to
deliver an identical or comparable replacement to your
door free of charge and arrange tohavethe failed mixer
returned. For more information concerning the product
warranty contact the Customer Satisfaction Center at
(800) 541-6390.
IMPORTANT SAFETY RECOMMENDATIONS
This Service Manual is written for the Professional
Service Technician who has familiarity with the
KitchenAid Stand Mixer.
Thefollowing Safety Guidelines should be adherred
to when servicing this product.
* The workplace will be dry and sanitary atall times
andall units should be inspected for cleanliness before
any work is started.
* Visually inspectthe unit requiring service in a well
luminated area.
* A mild, non-abrasive dishwashing soap solution
andclean towel can be used to wash any unit requiring
attention.
* The hands of the Service Technician should be
. clean at all times during the service procedure.
* ESD (Electo Static Discharge) protection should
be provided when servicing the electronic compo-
nents.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ° Page2
* The work place for the stand mixer will have
properly grounded AC outlets that adhere to all Local
Electrical Codes that are applicable at the time of the
repair.
* The Stand Mixer Power Cord should always be
inspected first before testing the mixer operation.
* Do NOT run the Mixer if the Power Cord is
damaged--replace it.
* All disassembly and assembly procedures dis-
cussed in this manual should be conducted with the
unit disconnected from the AC Supply. -
* Do NOT leave the unit unattended while running
the mixer for bowl clearance or any other check.
* Always unplug the unitimmediately after conclud-
ing electrical tests.
* The Service Technician should wear Protective
Eyeware at all times when conducting a repair on the
Stand Mixer.
* Loose fitting sweaters, shirt sleeves or bracelets
should NOT be worn while servicing the Stand Mixer.
TOOLS REQUIRED - The following tools are
necessary to service the KitchenAid Stand Mixer.
*PHILLIPS SCREWDRIVERS - A Medium Size for
numerous 8-32 x 5/8" screws used in Lower Cover. A
Larger Size will be needed on the 1/4-20 x 3/4" screws
-. used to secure the Pedestal to the base. A Power
. Screwdriver is recommended for the larger screws.
* STRAIGHT SCREWDRIVER - A Medium Size for
removing the 10-24 x 1/2" Latch Bowl Spring and for
adjusting the Bowl Clearance Adjusting Cam. A small
size for removing the "C" Clip at the bottom of the Bowl
Lift Rod.
* SNAP RING PLIERS - Used to remove the (2)
Retaining Clips from the top of the Planetary Assembly
Shaft and the Agitator Shaft on the Planetary. Always
wear Safety Goggles when using Snap Ring Pliers.
e NEEDLE NOSE PLIERS - Used for removing Hall
Effect Sensor, Motor and Power Cord Leads from the
Control Board Assembly.
*DRIFT PUNCH -Usedfor removing the (2) Retain-
ing Pins from the Planetary Assembly Shaft and the
Agitator Shaft.
* SMALL HAMMER - Used for the light tapping
force required to remove the (2) Retaining Pins dis-
cussed above.
* VOLT-OHMMETER - For diagnosis a Volt-Ohm-
meter is useful in confirming continuity and an In-Line
Wattmeter is particularly helpful in confirming Trans-
mission drag problems.
