KitchenAid”

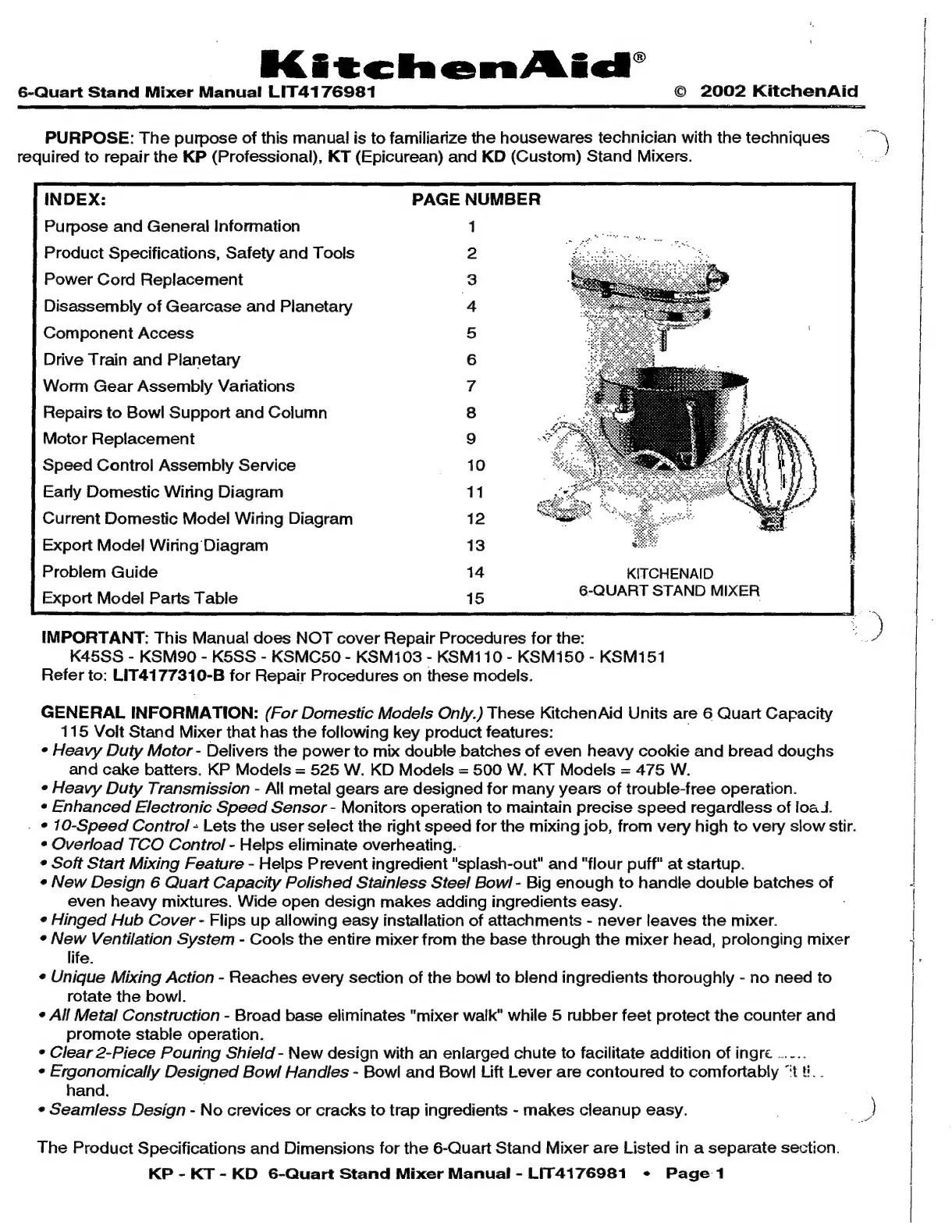

6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid
PURPOSE: The purpose of this manual is to familiarize the housewares technician with the techniques
required to repair the KP (Professional), KT (Epicurean) and KD (Custom) Stand Mixers.
INDEX: PAGE NUMBER
Purpose and General Information 1
Product Specifications, Safety and Tools
Power Cord Replacement
Disassembly of Gearcase and Planetary
Component Access
Drive Train and Planetary
Worm Gear Assembly Variations
Repairs to Bowl Support and Column
Oo 0-00 5 wD
Motor Replacement
Speed Control Assembly Service
Early Domestic Wiring Diagram
Current Domestic Model Wiring Diagram
Export Model Wiring Diagram
Problem Guide
Export Model Parts Table
A on n A&A WNHD = o
KITCHENAID
6-QUART STAND MIXER
A oa
E
IMPORTANT: This Manual does NOT cover Repair Procedures for the:
K45SS - KSM90 - K5SS - KSMC50 - KSM103 - KSM110 - KSM150 - KSM151
Refer to: LIT4177310-B for Repair Procedures on these models.
GENERAL INFORMATION: (For Domestic Models Only.) These KitchenAid Units are 6 Quart Capacity
115 Volt Stand Mixer that has the following key product features:
* Heavy Duty Motor - Delivers the power to mix double batches of even heavy cookie and bread douchs
and cake batters. KP Models = 525 W. KD Models = 500 W. KT Models = 475 W.
e Heavy Duty Transmission - All metal gears are designed for many years of trouble-free operation.
e Enhanced Electronic Speed Sensor - Monitors operation to maintain precise speed regardless of loa J.
- * 10-Speed Control - Lets the user select the right speed for the mixing job, from very high to very slow stir.
e Overload TCO Control - Helps eliminate overheating. -
e Soft Start Mixing Feature - Helps Prevent ingredient "splash-out" and "flour puff" at startup.
* New Design 6 Quart Capacity Polished Stainless Steel Bowl - Big enough to handle double batches of
even heavy mixtures. Wide open design makes adding ingredients easy.
e Hinged Hub Cover - Flips up allowing easy installation of attachments - never leaves the mixer.
* New Ventilation System - Cools the entire mixer from the base through the mixer head, prolonging mixer
life.
* Unique Mixing Action - Reaches every section of the bowl to blend ingredients thoroughly - no need to
rotate the bowl.
* All Metal Construction - Broad base eliminates "mixer walk" while 5 rubber feet protect the counter and
promote stable operation.
e Clear 2-Piece Pouring Shield - New design with an enlarged chute to facilitate addition of ingre ...-..
e Ergonomically Designed Bowl Handles - Bowl and Bowl Lift Lever are contoured to comfortably ^t ti. .
hand.
e Seamless Design - No crevices or cracks to trap ingredients - makes cleanup easy.
The Product Specifications and Dimensions for the 6-Quart Stand Mixer are Listed in a separate section.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 1
