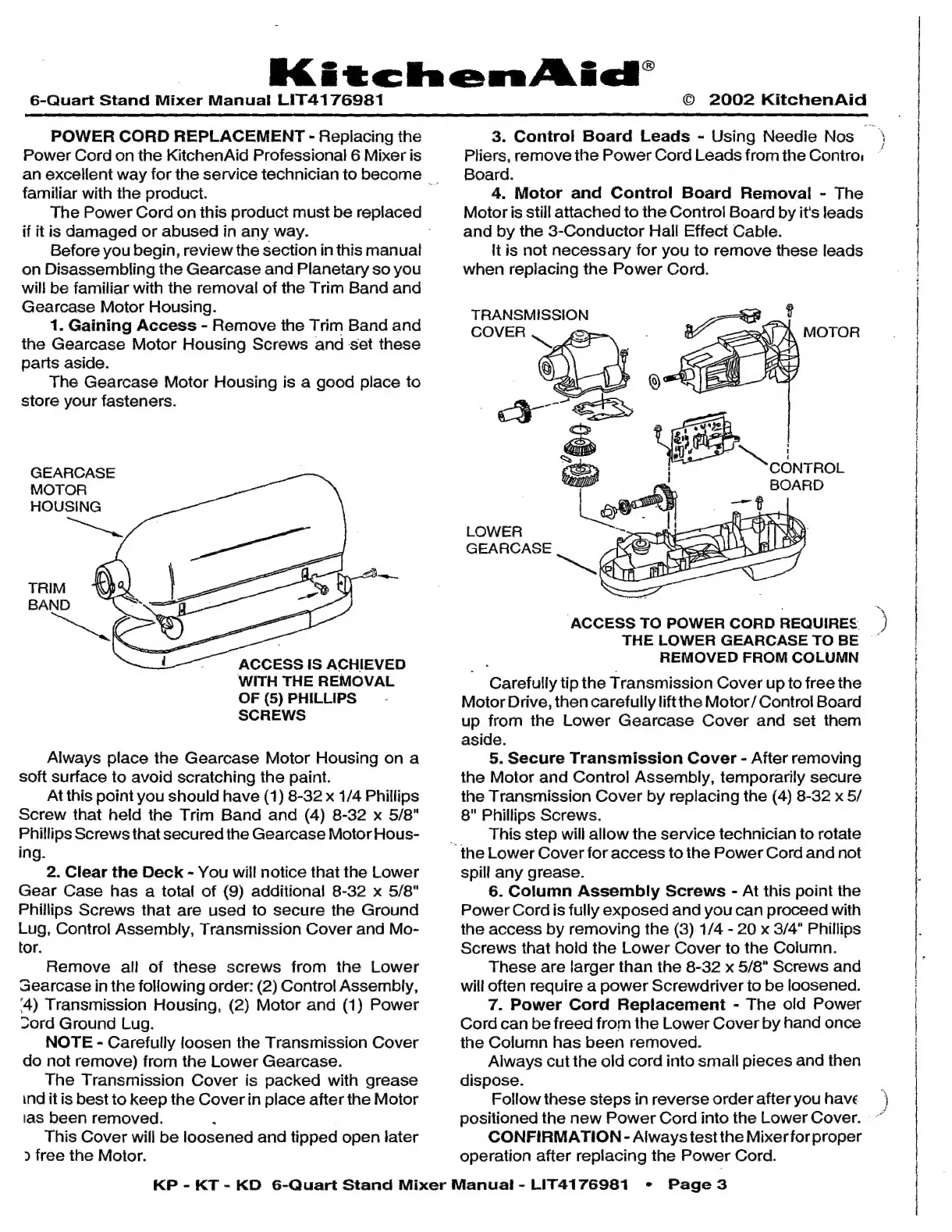

POWER
CORD
REPLACEMENT
-
Repiacing
the
Power
Cord
on
the
KitchenAid
Professional
6
Mixer
is
an
excellent
way
for
the
service
technician
to
become
familiar
with
the
product.
The
Power
Cord
on
this
product
must
be
replaced
if
it
is
damaged
or
abused
in
any
way.
Before
you
begin,
review
the
section
in
this
manual
on
Disassembling
the
Gearcase
and
Planetary
so
you
will
be
familiar
with
the
removal
of
the
Trim
Band
and
Gearcase
Motor
Housing.
1.
Gaining
Access
-
Remove
the
Trim
Band
and
the
Gearcase
Motor
Housing
Screws
and
set
these
paris
aside.
The
Gearcase
Motor
Housing
is
a
good
place
to
store
your
fasteners.
GEARCASE
MOTOR
HOUSING
ACCESS
IS
ACHIEVED
WITH
THE
REMOVAL
OF
(5)
PHILLIPS
SCREWS
Always
place
the
Gearcase
Motor
Housing
on
a
soft
surface
to
avoid
scratching
the
paint.
At
this
point
you
should
have
(1)
8-32
x
1/4
Phillips
Screw
that
held
the
Trim
Band
and
(4)
8-32
x
5/8"
Phillips
Screws
that
secured
the
Gearcase
Motor
Hous-
ing.
2.
Clear
the
Deck
-
You
will
notice
that
the
Lower
Gear
Case
has
a
total
of
(9)
additional
8-32
x
5/8"
Phillips
Screws
that
are
used
to
secure
the
Ground
Lug,
Control
Assembly,
Transmission
Cover
and
Mo-
tor.
Remove
all
of
these
screws
from
the
Lower
aearcase
in
the
following
order:
(2)
Control
Assembly,
4)
Transmission
Housing,
(2)
Motor
and
(1)
Power
Zord
Ground
Lug.
NOTE
-
Carefully
loosen
the
Transmission
Cover
do
not
remove)
from
the
Lower
Gearcase.
The
Transmission
Cover
is
packed
with
grease
ind
itis
best
to
keep
the
Cover
in
place
after
the
Motor
las
been
removed.
i
This
Cover
will
be
loosened
and
tipped
open
later
»
free
the
Motor.
KP
-
KT
-
KD
6-Quart
Stand
Mixer
Manual
-
LIT4176981
«+
©
2002
KitchenAid
3.
Control
Board
Leads
-
Using
Needie
Nos
Pliers,
remove
the
Power
Cord
Leads
from
the
Coniro:
Board.
4.
Motor
and
Control
Board
Removal
-
The
Motor
is
still
attached
to
the
Control
Board
by
it's
leads
and
by
the
3-Conductor
Hall
Effect
Cable.
lt
is
not
necessary
for
you
to
remove
these
leads
when
replacing
the
Power
Cord.
TRANSMISSION
COVER
&
dis
CÓNTROL
BOARD
|
gessi
erm
BIB
Zo
ws
LOWER
SNC
GEARCASE
Cea
B
Sy
ACCESS
TO
POWER
CORD
REQUIRES.
THE
LOWER
GEARCASE
TO
BE
REMOVED
FROM
COLUMN
Carefully
tip
the
Transmission
Cover
up
to
free
the
Motor
Drive,
then
carefully
lift
the
Motor/
Control
Board
up
from
the
Lower
Gearcase
Cover
and
set
them
aside.
5.
Secure
Transmission
Cover
-
After
removing
the
Motor
and
Control
Assembly,
temporarily
secure
the
Transmission
Cover
by
replacing
the
(4)
8-32
x
5/
8"
Phillips
Screws.
This
step
will
allow
the
service
technician
to
rotate
`
the
Lower
Cover
for
access
to
the
Power
Cord
and
not
spill
any
grease.
6.
Column
Assembly
Screws
-
At
this
point
the
Power
Cord
is
fully
exposed
and
you
can
proceed
with
the
access
by
removing
the
(3)
1/4
-
20
x
3/4"
Phillips
Screws
that
hold
the
Lower
Cover
to
the
Column.
These
are
larger
than
the
8-32
x
5/8"
Screws
and
will
often
require
a
power
Screwdriver
to
be
loosened.
7.
Power
Cord
Replacement
-
The
old
Power
Cord
can
be
freed
from
the
Lower
Cover
by
hand
once
the
Column
has
been
removed.
Always
cut
the
old
cord
into
small
pieces
and
then
dispose.
Follow
these
steps
in
reverse
order
after
you
have
positioned
the
new
Power
Cord
into
the
Lower
Cover.
CONFIRMATION
-
Alwaystestthe
Mixerforproper
operation
after
replacing
the
Power
Cord.
