6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid

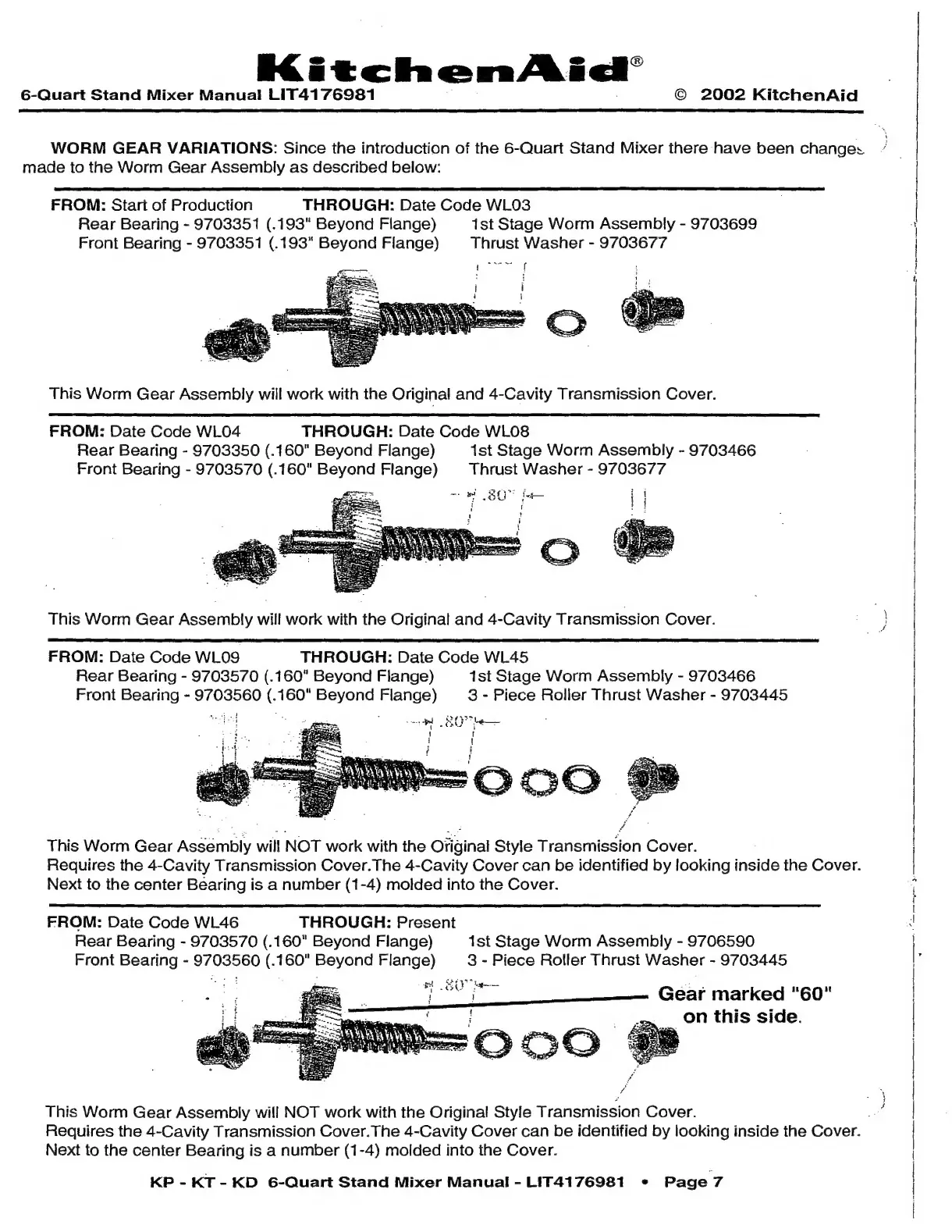

WORM GEAR VARIATIONS: Since the introduction of the 6-Quart Stand Mixer there have been change:
made to the Worm Gear Assembly as described below:
FROM: Start of Production THROUGH: Date Code WLO3
Rear Bearing - 9703351 (.193" Beyond Flange) ist Stage Worm Assembly - 9703699
Front Bearing - 9703351 (.193" Beyond Flange) Thrust Washer - 9703677
This Worm Gear Assembly will work with the Original and 4-Cavity Transmission Cover.
FROM: Date Code WLO4 THROUGH: Date Code WLO8
Rear Bearing - 9703350 (.160" Beyond Flange) ist Stage Worm Assembly - 9703466
Front Bearing - 9703570 (.160" Beyond Flange)
This Worm Gear Assembly will work with the Original and 4-Cavity Transmission Cover.
FROM: Date Code WLOS THROUGH: Date Code WL45
Rear Bearing - 9703570 (.160" Beyond Flange) ist Stage Worm Assembly - 9703466
Front Bearing - 9703560 (.160" Beyond Flange) 3 - Piece Roller Thrust Washer - 9703445
Qe
eM so Me
na
This Worm Gear Assembly will NOT work with the Original Style Transmission Cover.
Requires the 4-Cavity Transmission Cover. The 4-Cavity Cover can be identified by looking inside the Cover.
Next to the center Bearing is a number (1-4) molded into the Cover.
FROM: Date Code WL46 THROUGH: Present
Rear Bearing - 9703570 (.160" Beyond Flange) ist Stage Worm Assembly - 9706590
Front Bearing - 9703560 (.160" Beyond Flange) 3 - Piece Roller Thrust Washer - 9703445
M ROT EN
? ! l
__ on this side.
This Worm Gear Assembly will NOT work with the Original Style Transmission Cover.
Requires the 4-Cavity Transmission Cover.The 4-Cavity Cover can be identified by looking inside the Cover.
Next to the center Bearing is a number (1-4) molded into the Cover.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 7
