KitchenAid KP - Wiring Diagram: Mixer Domestic;Canadian WL46-Present

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid
23
J

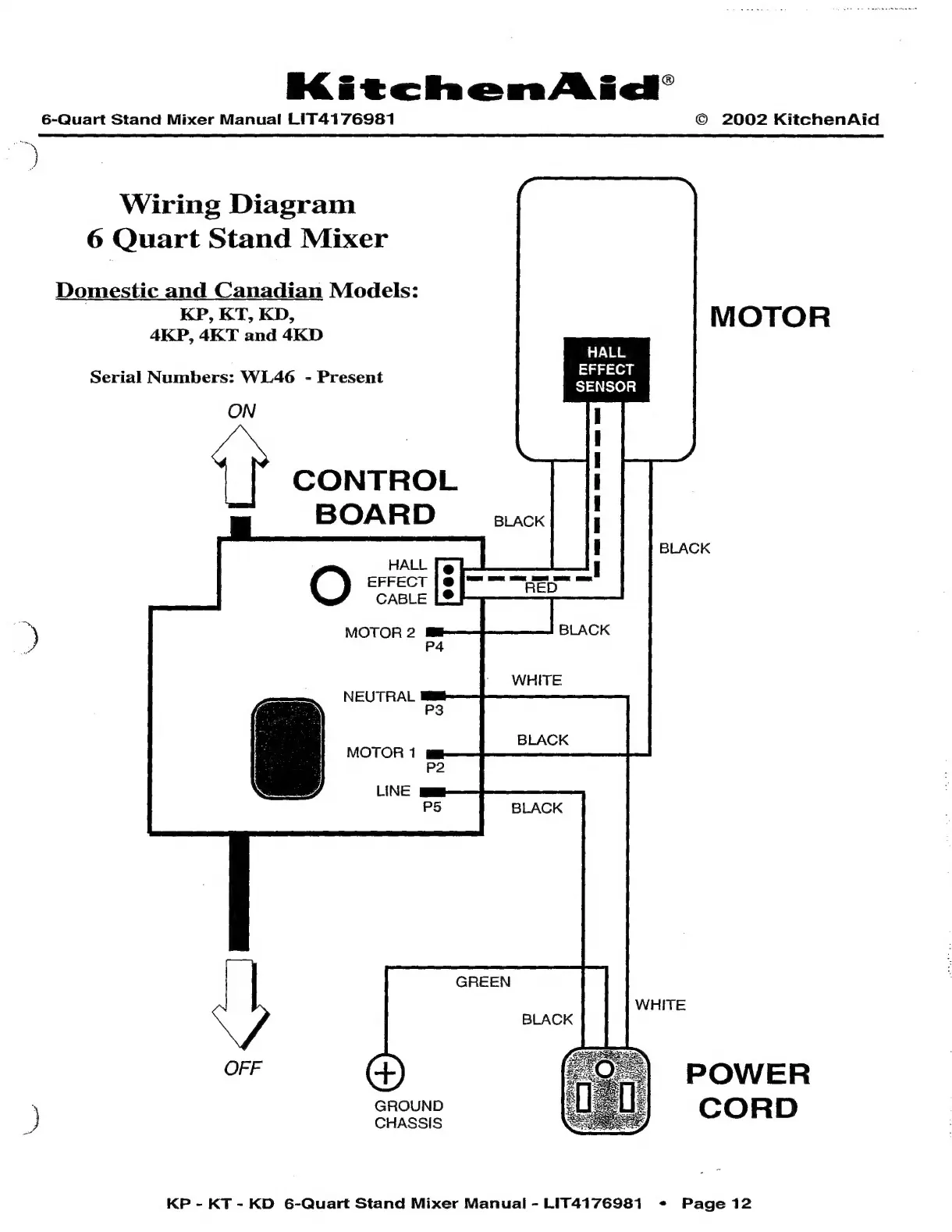

Wiring Diagram
6 Quart Stand Mixer
Domestic and Canadian Models:
KP,
KT,
KD,
MOTOR
4KP,
4KT
and
4KD
HALL
Serial
Numbers:
WL46
-
Present
EA
ON
CONTROL
BOARD
BLACK
HALL
O
EFFECT
CABLE
»
MOTOR
2
NEUTRAL
MOTOR
1
LINE
WHITE
POWER
E
GROUND
)
CHASSIS
CORD
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 12
