BLENDER SERVICE MANUAL

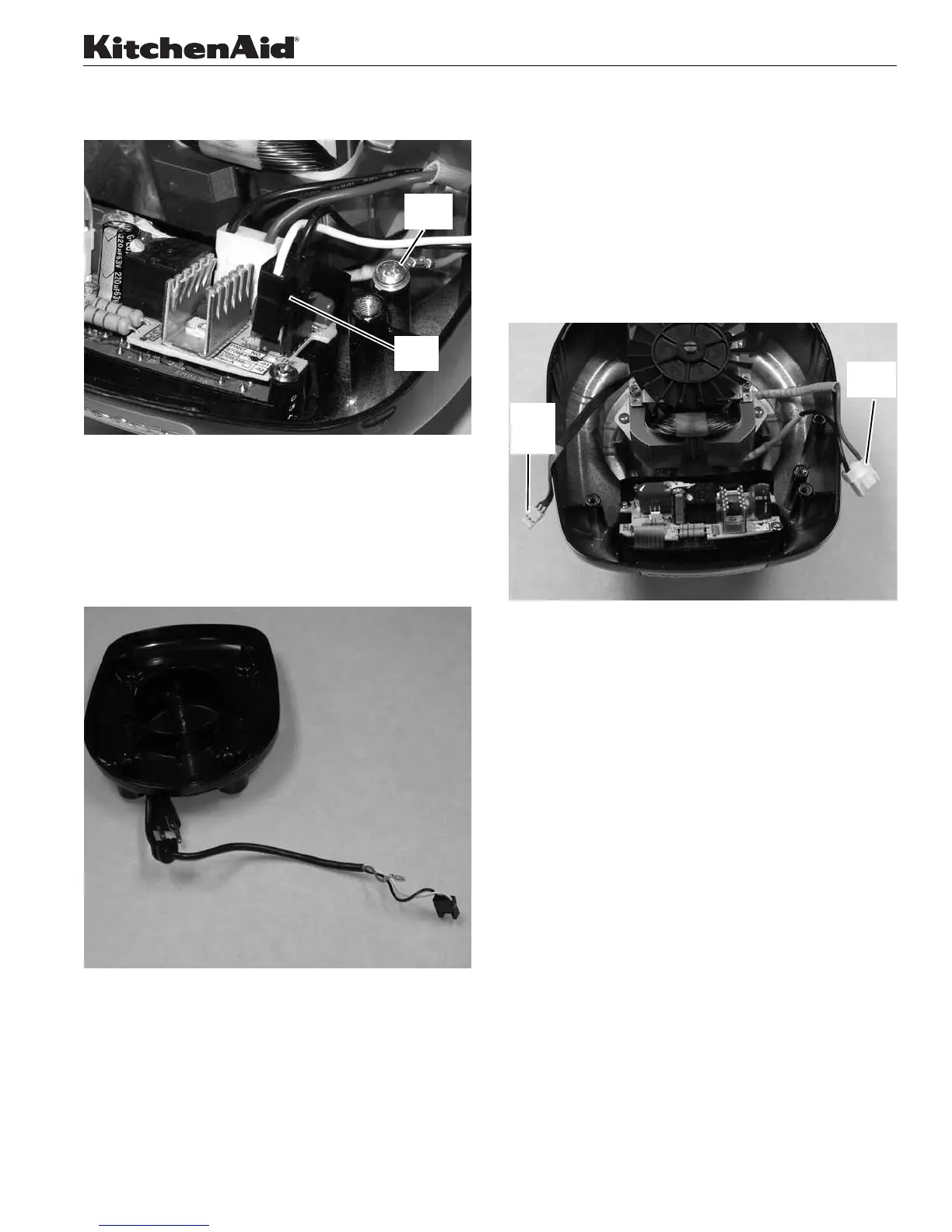

Remove the Ground Screw with a Phillips
screwdriver.
s
Figure 5
Always note the orientation of the Power Cord
before removing it for replacement.
Remove the original Power Cord by routing the
Power Cord back through the opening in the
bottom of the Power Base.
Figure 6
Before installing the new Power Cord, remove any
soil from the bottom of the Power Base using a mild
dishwashing soap.
If the Power Base is contaminated or stained,
replace the Base.
Electronic Speed Control Board Replacement:
The unit’s Electronic Speed Control Board can
easily be replaced by first disconnecting the AC
contacts of the Power Cord (black clip) from the
Control Board using needle nose pliers.
Next, disconnect the Motor Leads (white clip) and
the Hall Effect Sensor (5-speed models only) three
conductor ribbon cable from the Control Board with
needle nose pliers. 3-speed models do not have
Hall Effect Sensor.
v
Figure 7
Insert a flathead screwdriver along side of entire
Control Board to dislodge it from housing.
Replacement Control Board snaps into housing.
Motor
Leads
Hall
Effect
Sensor
