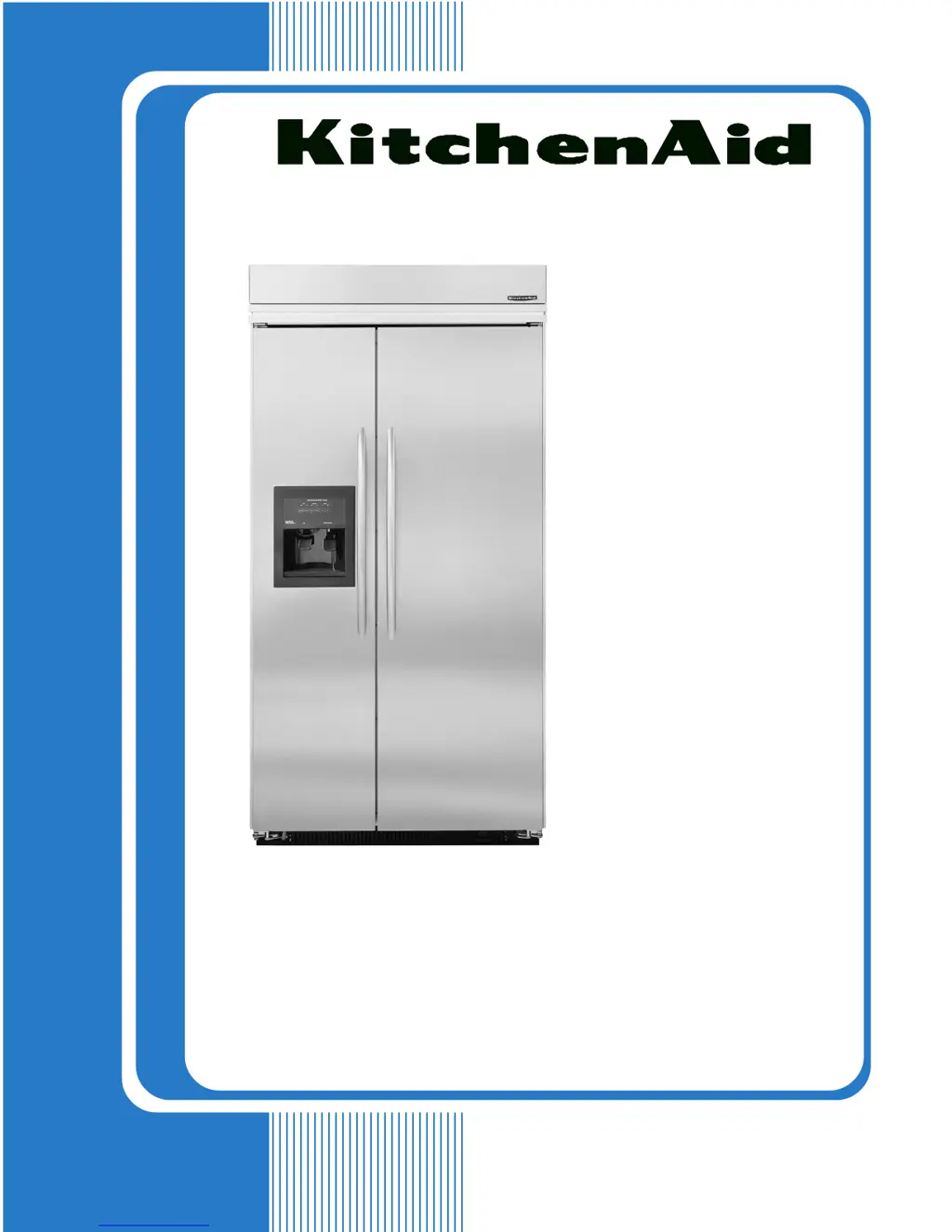

KitchenAid KSSS42QKB00 User Manual (English)

Questions and Answers:

N
Nathan SchneiderAug 20, 2025
Why is my KitchenAid KSSS42QKB00 Refrigerator compartment too cold?
- C
  Christopher GonzalesAug 20, 2025
  If your KitchenAid Refrigerator compartment is too cold, here are some possible causes: * The refrigerator control may be set too cold. Try setting it to a higher temperature. * The refrigerator thermistor could be malfunctioning. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * The air door might be stuck open or inoperative. Look for ice or other blockages in the air door. Run a diagnostics test to operate the air door. Check for proper DC input voltage. If the voltage is normal and the door still won't operate, replace the air door. * The air door seal might be missing or damaged. Repair or replace the seal. * There could be an issue with the main PC board. Run a diagnostics test to operate the air door.
L
Larry BarryAug 25, 2025
Why is my KitchenAid Refrigerator freezer too cold?
- B
  Barbara WaltersAug 25, 2025
  If your KitchenAid Refrigerator's freezer compartment is too cold: * The freezer control may be set too cold. Set it to a higher temperature. * The refrigerator may be operating in Max Cool or Automatic Max Ice Mode. This is normal operation. * The freezer thermistor might be faulty. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * There might be no evaporator fan motor feedback. The fan motor will run at 3000 rpm.
C
Christine MurphyAug 28, 2025
What to do if the 'Call Service' icon lights up on my KitchenAid Refrigerator?
- D
  donald16Aug 28, 2025
  If the "Call Service" icon lights up and/or the alarm is activated on your KitchenAid Refrigerator, it could be due to several reasons: * The main control board may be overheating, possibly due to blocked condenser airflow or a malfunctioning condenser fan motor. Check these components. * The refrigerator temperature might be above 48°F or the freezer above 15°F for more than 3 hours. In this case, run diagnostics to test all components. * Both thermistors might have failed. Run diagnostics and test the thermistors and their leads. * There might be no feedback from the evaporator fan motor. Run diagnostics and test the fan motor and its wiring.
A
april91Aug 31, 2025
What to do if the condenser fan runs but the compressor won't start on my KitchenAid KSSS42QKB00?
- M
  Mary GatesSep 1, 2025
  If the condenser fan runs but the compressor won't start on your KitchenAid Refrigerator, the following could be the issue: * There may be no DC control voltage from the main PCB to the inverter board. * The control voltage wires may be loose or reversed. Check the connections and repair as needed. * There may be an issue with the compressor. * There may be an issue with the inverter board.
J
John SmithSep 4, 2025
Why does my KitchenAid KSSS42QKB00 run too long?
- M
  Michael FullerSep 4, 2025
  It is normal for your KitchenAid Refrigerator to run for extended periods. It is designed to run almost constantly at the lowest possible compressor speed because starting and stopping the compressor uses more power than continuous low rpm operation.
M
Morgan PriceSep 8, 2025
How to fix no temperature display and no interior lights on my KitchenAid Refrigerator?
- A
  Alison EvansSep 8, 2025
  If there is no temperature display and no interior lights on your KitchenAid Refrigerator, consider these possibilities: * The unit may be set to Holiday Mode. Press the Holiday Mode key to cancel this operation. * Either door may have been open for over 10 minutes. Close the door and/or check the door switches.

KitchenAid KSSS42QKB00 Specifications

General

Brand	KitchenAid
Model Number	KSSS42QKB00
Refrigerator Type	Side-by-Side
Total Capacity	21.9 cu. ft.
Freezer Capacity	7.6 cu. ft.
Ice Maker	Yes
Water Dispenser	Yes
Color	Black
Counter Depth	No
Energy Star Certified	Yes
Width	42 in

Summary

Forward and Objectives

Goals and Objectives

Outlines the primary purpose and learning objectives for using this technical education job aid.

General Information and Safety

Safety First

Crucial safety guidelines, warnings, and precautions for appliance operation and maintenance.

Electrostatic Discharge (ESD) Sensitive Electronics

Procedures to prevent damage to electronic components from static electricity during handling.

Model and Serial Number Designations

Explains the coding system for model and serial numbers to identify refrigerator features and production.

Refrigerator Specifications

Refrigerator Specifications by Model

Details physical dimensions, refrigerator and freezer volumes, and weight for various models.

Warranty Period Information

Outlines the standard, full liner, and sealed system warranty durations for different refrigerator models.

KitchenAid Built-In Refrigerator Warranty

Warranty Coverage Details

Specifies terms for full, limited, and lifetime warranties, including covered parts and labor.

Warranty Exclusions

Lists conditions and services not covered by the manufacturer's warranty, such as installation or misuse.

Installation Information

Product Dimensions & Clearances

Provides critical measurements for refrigerator installation, including height, depth, and width requirements.

Installation Openings & Water Supply

Details cabinet opening specifications, electrical outlet placement, and water shutoff valve location for installation.

Anti-Tip Board Installation

Instructions for securing the refrigerator to prevent tipping, including marking stud locations and mounting boards.

Theory of Operation

Electronic Control Panel

Explains the functions of the temperature control panel, including displays, settings, and features like Max Cool.

Temperature Control System

Describes how the refrigerator controls temperature using thermistors, variable capacity compressor, and air door.

Special Operating Modes

Details modes like Max Cool, Automatic Max Ice, and Holiday Mode, and their operational effects.

Component Access and Removal

Component Locations

Illustrates the physical location of major internal and external refrigerator components.

Removing Unit Compartment Cover

Step-by-step instructions for safely accessing the internal components by removing the unit compartment cover.

Servicing Control Boards & Switches

Procedures for removing the main control board, inverter assembly, power switch, and door switches.

Component Testing Procedures

Thermistor Testing

Guides on testing thermistor resistance and voltage output for accurate temperature readings.

Fan Motor Testing

Procedures for testing evaporator and condenser fan motors, including resistance and voltage measurements.

Compressor & Inverter Testing

Steps to test compressor windings resistance and inverter board voltage inputs/outputs.

Diagnosis and Troubleshooting

Diagnostic Mode Operation

Instructions on how to access and navigate the refrigerator's diagnostic test modes.

Troubleshooting Chart

A chart correlating common refrigerator problems with their possible causes and recommended test procedures.

Wiring Diagrams and Strip Circuits

Bottom Mount Wiring Diagram

Electrical schematic illustrating the wiring connections for bottom mount refrigerator models.

Side-by-Side Wiring Diagram

Electrical schematic detailing the wiring for side-by-side refrigerator configurations.

Product Specifications and Warranty Information Sources

Customer Support Contact Information

Provides phone numbers for product specifications, warranty information, and technical assistance in the US and Canada.
