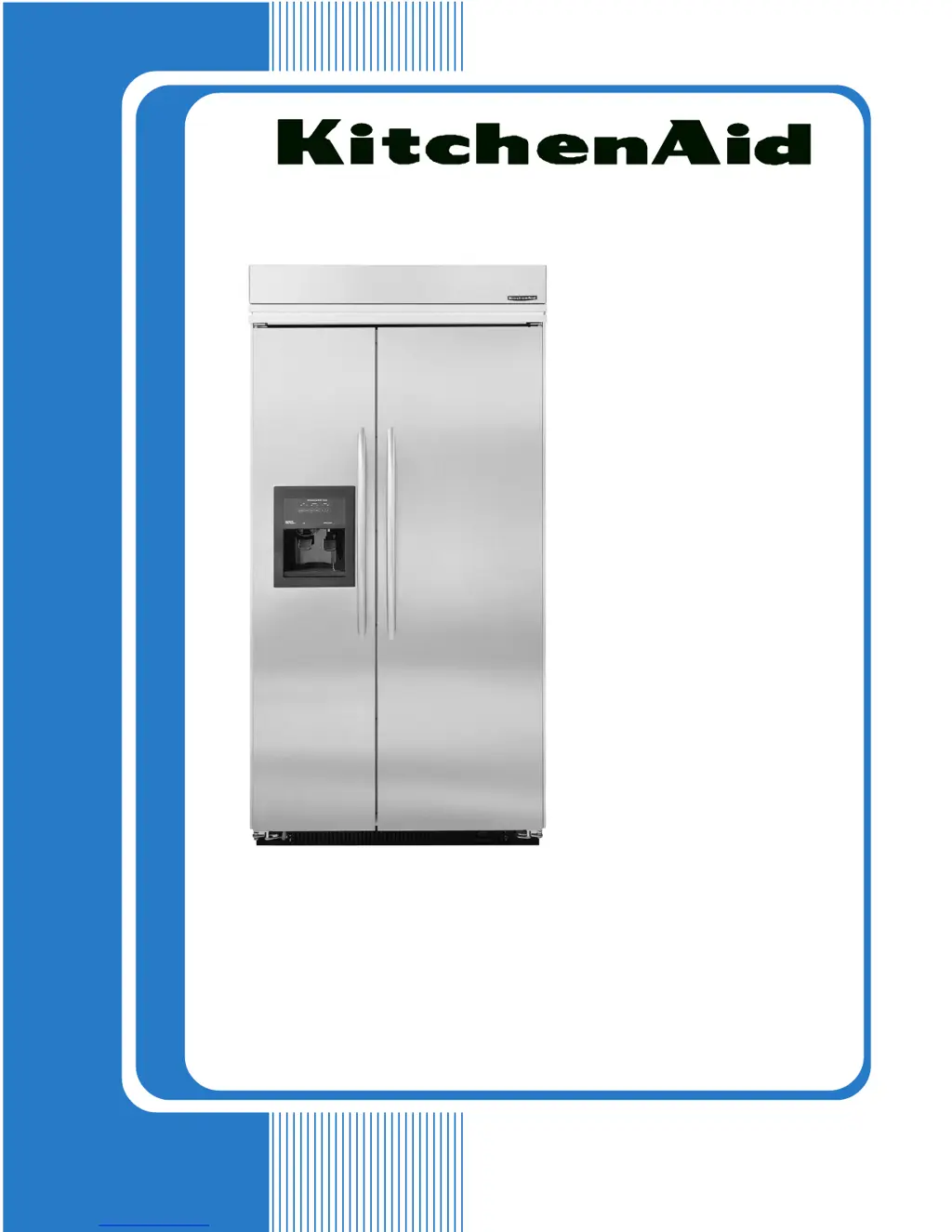

TECHNICAL EDUCATION
JOB AID 4317326A
KAR-11
2001 K MODEL
BUILT-IN SIDE-BY-SIDE
REFRIGERATOR WITH VARIABLE
CAPACITY COMPRESSOR
MODELS:
KSSC36FKB00
KSSC36FKS00
KSSC36QKS00
KSSC42FKB00
KSSC42FKS00
KSSC42QKS00
KSSC48FKB00
KSSC48FKS00
KSSC48QKS00
KSSP36QKS00
KSSP42QKS00
KSSP48QKS00
KSSS36FKB00
KSSS36FKT00
KSSS36FKW00
KSSS36FKX00
KSSS36QKB00
KSSS36QKT00
KSSS36QKW00
KSSS36QKX00
KSSS42FKB00
KSSS42FKT00
KSSS42FKW00
KSSS42FKX00
KSSS42QKB00
KSSS42QKT00
KSSS42QKW00
KSSS42QKX00
KSSS48FKB00
KSSS48FKT00
KSSS48FKW00
KSSS48FKX00
KSSS48QKB00
KSSS48QKT00
KSSS48QKW00
KSSS48QKX00

Table of Contents

Questions and Answers

  • D
    dgarrettAug 20, 2025
    Why is my KitchenAid Refrigerator compartment too cold?
    • D
      David PerezAug 20, 2025
      If your KitchenAid Refrigerator compartment is too cold, here are some possible causes: * The refrigerator control may be set too cold. Try setting it to a higher temperature. * The refrigerator thermistor could be malfunctioning. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * The air door might be stuck open or inoperative. Look for ice or other blockages in the air door. Run a diagnostics test to operate the air door. Check for proper DC input voltage. If the voltage is normal and the door still won't operate, replace the air door. * The air door seal might be missing or damaged. Repair or replace the seal. * There could be an issue with the main PC board. Run a diagnostics test to operate the air door.
  • M
    mariajohnsonAug 25, 2025
    Why is my KitchenAid Refrigerator freezer too cold?
    • L
      Luis DavisAug 25, 2025
      If your KitchenAid Refrigerator's freezer compartment is too cold: * The freezer control may be set too cold. Set it to a higher temperature. * The refrigerator may be operating in Max Cool or Automatic Max Ice Mode. This is normal operation. * The freezer thermistor might be faulty. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * There might be no evaporator fan motor feedback. The fan motor will run at 3000 rpm.
  • D
    Daniel BakerAug 28, 2025
    What to do if the 'Call Service' icon lights up on my KitchenAid KSSS42QKX00 Refrigerator?
    • L
      Louis RobbinsAug 28, 2025
      If the "Call Service" icon lights up and/or the alarm is activated on your KitchenAid Refrigerator, it could be due to several reasons: * The main control board may be overheating, possibly due to blocked condenser airflow or a malfunctioning condenser fan motor. Check these components. * The refrigerator temperature might be above 48°F or the freezer above 15°F for more than 3 hours. In this case, run diagnostics to test all components. * Both thermistors might have failed. Run diagnostics and test the thermistors and their leads. * There might be no feedback from the evaporator fan motor. Run diagnostics and test the fan motor and its wiring.
  • D
    danielclaytonAug 31, 2025
    What to do if the condenser fan runs but the compressor won't start on my KitchenAid KSSS42QKX00 Refrigerator?
    • T
      Tracy RossAug 31, 2025
      If the condenser fan runs but the compressor won't start on your KitchenAid Refrigerator, the following could be the issue: * There may be no DC control voltage from the main PCB to the inverter board. * The control voltage wires may be loose or reversed. Check the connections and repair as needed. * There may be an issue with the compressor. * There may be an issue with the inverter board.
  • J
    James JacksonSep 4, 2025
    Why does my KitchenAid KSSS42QKX00 run too long?
    • F
      Felicia HernandezSep 4, 2025
      It is normal for your KitchenAid Refrigerator to run for extended periods. It is designed to run almost constantly at the lowest possible compressor speed because starting and stopping the compressor uses more power than continuous low rpm operation.
  • K
    Kathy WeberSep 8, 2025
    How to fix no temperature display and no interior lights on my KitchenAid KSSS42QKX00?
    • A
      Anna GonzalezSep 8, 2025
      If there is no temperature display and no interior lights on your KitchenAid Refrigerator, consider these possibilities: * The unit may be set to Holiday Mode. Press the Holiday Mode key to cancel this operation. * Either door may have been open for over 10 minutes. Close the door and/or check the door switches.
  • J
    jane68Nov 12, 2025
    Why is my KitchenAid KSSS42QKX00 compartment too warm?
    • C
      cmartinezNov 12, 2025
      If your KitchenAid Refrigerator compartment is too warm, there are several potential causes: * The refrigerator control might be set too warm. Try setting it to a lower temperature. * There might be an issue with the refrigerator thermistor. Check the wires and connectors. Run diagnostics, and if the thermistor is indicated as defective, confirm with an ohms test. * The air door could be stuck closed or inoperative. Look for ice or other blockages. Run a diagnostics test to operate the air door. * The evaporator fan motor may not be running. Run a diagnostics test to operate the evaporator fan motor. Check for a blocked fan blade and repair if necessary. Check for 5-17vdc from pin P7-9 to P7-10; if the voltage is correct, replace the motor. * There could be blocked airflow. Chec...
  • B
    Brandon WrightNov 16, 2025
    Why is my KitchenAid KSSS42QKX00 freezer compartment too warm?
    • T
      Tammy Ford PhDNov 16, 2025
      If your KitchenAid Refrigerator's freezer compartment is too warm, consider the following: * The freezer control might be set too warm. Set it to a lower temperature. * The freezer thermistor may be faulty. Check the wires and connectors. Run diagnostics, and if a defective thermistor is indicated, confirm with an ohms test. * The evaporator fan motor might not be running. Run a diagnostics test to operate the evaporator fan motor. Check for a blocked fan blade and repair as necessary. Check for 5-17vdc from pin P7-9 to P7-10; if the voltage is correct, replace the motor. * The condenser fan motor may not be running. Check for a blocked fan blade and repair as necessary. * Frost may be blocking the evaporator. Run diagnostics to operate the defrost system, and test the defrost h...

Summary

General Information and Safety

Safety First

Provides important safety messages and explains hazard symbols like DANGER and WARNING.

Electrical Power Supply and Grounding Requirements

Highlights dangers of electrical shock and proper grounding procedures.

Electrostatic Discharge (ESD) Sensitive Electronics

Details precautions for handling ESD sensitive electronic components to prevent damage.

Anti-Tip Requirements

Explains measures to prevent the refrigerator from tipping during installation and use.

Model, Specifications, and Warranty

Model and Serial Number Designations

Explains the coding system for refrigerator model and serial numbers.

Product Specifications

Details technical specifications for various KitchenAid built-in refrigerator models.

KitchenAid Refrigerator Warranty Information

Outlines coverage, exclusions, and terms of the refrigerator's limited warranties.

Installation Procedures

Product Dimensions and Installation Clearances

Provides detailed physical dimensions and required clearances for installation.

Water Supply and Anti-Tip Requirements

Details water line connection requirements and anti-tip board installation.

Refrigerator Leveling and Door Alignment

Guides on leveling the appliance and adjusting door alignment for proper function.

Theory of Operation

Electronic Temperature Control System

Explains the electronic control panel, thermistors, and temperature management.

Compressor, Fan, and Air Door Function

Details the operation of the compressor, evaporator fan motor, and motorized air door.

Defrost, Alarms, and Special Modes

Covers adaptive defrost, alarms, Max Cool, Max Ice, and Holiday modes.

Air Circulation and Sealed System

Illustrates airflow paths and the sealed refrigeration system schematic.

Component Access and Removal

Component Locations Overview

Diagrams showing the physical locations of major refrigerator components for service.

Removing Unit Compartment Cover and Control Components

Steps to remove covers, switches, inverter, and main control board.

Removing Refrigeration System Components

Procedures for removing fan motors, compressor, filter/drier, evaporator, heater, and bimetal.

Removing Dispenser, Water, and Ice System Components

Instructions for removing air door, ice maker, water reservoir, water valve, and dispenser parts.

Removing Sensors, Lights, Gaskets, and Doors

Guides for replacing thermistors, light sockets, door gaskets, and entire doors.

Component Testing Procedures

Testing Thermistors and Fan Motors

Procedures for testing thermistors, evaporator fan, and condenser fan motor resistance.

Testing Compressor, Inverter, and Control Board

Steps to test compressor, inverter, and main control board voltages and outputs.

Testing Defrost System, Solenoids, and Switches

Tests for defrost heater, bimetal, solenoids, and door switches.

Diagnosis and Troubleshooting

Pre-Diagnostics Checks and Mode Entry

Initial checks before diagnostics and instructions on how to enter diagnostic mode.

Diagnostic Test Chart and WFI Test

Chart of diagnostic steps and results, plus water filter input testing procedure.

Troubleshooting Chart by Problem

Correlates common issues with causes and recommended test procedures.

Wiring Diagrams and Strip Circuits

Refrigerator Wiring Diagrams

Schematics illustrating electrical connections for bottom mount and side-by-side models.

Strip Circuits: Key System Operations

Simplified diagrams for compressor, fans, defrost, ice maker, and lighting circuits.

Support Information

Contact Information for US and Canada

Provides phone numbers for product support, technical assistance, and literature orders.
