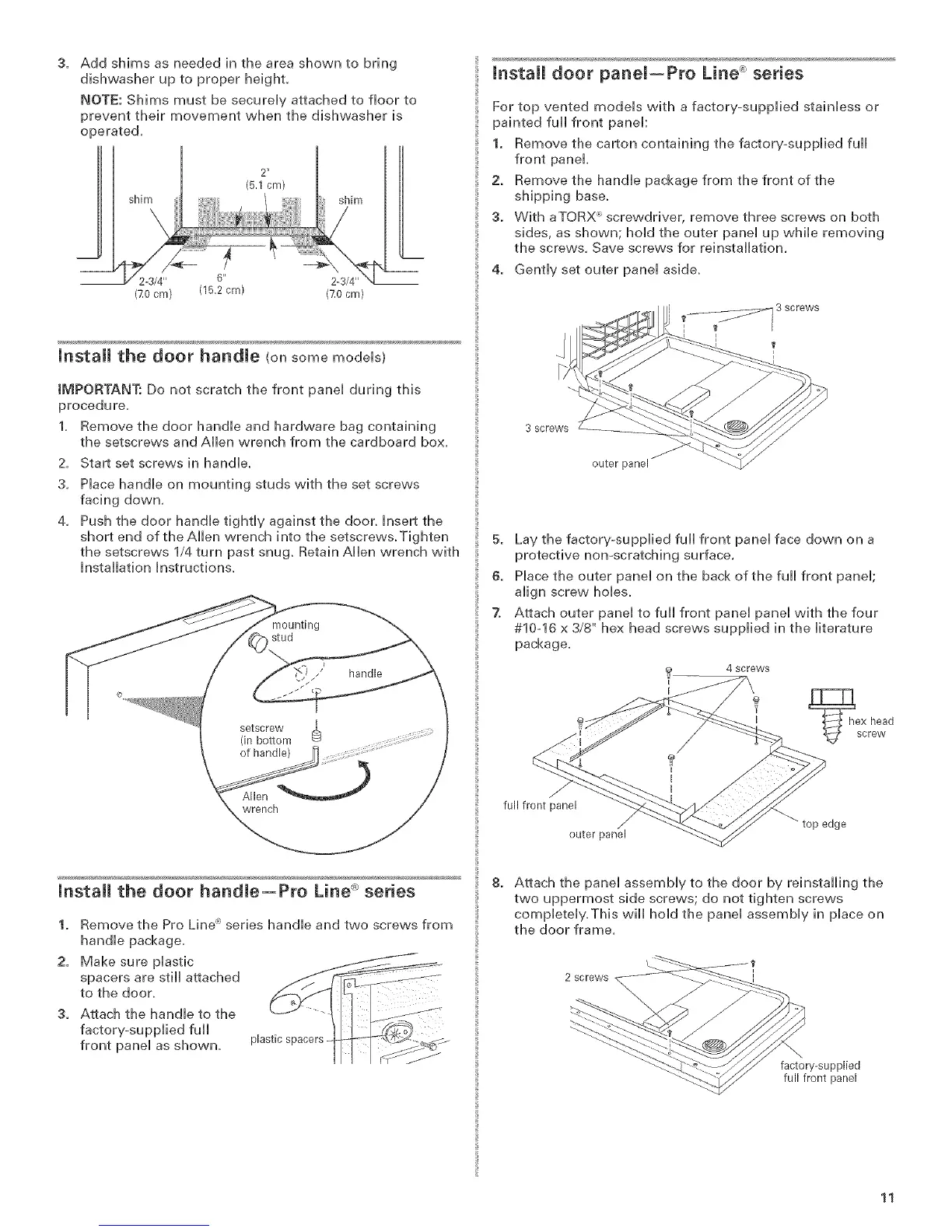

Addshimsasneededintheareashowntobring
dishwasherupto properheight.
NOTE:ShimsmustbesecureHyattachedtofloorto
preventtheirmovementwhenthedishwasheris
operated,
2"
(5.1cm)
shim
2-3/4" 6" 2-3/4"
(70 cm) (15.2cm) (70 cm)
mnstall the door handle (onsomemodeHs)
IMPORTANT: Do not scratch the front paneH during this
procedure,
1, Remove the door handHe and hardware bag containing
the setscrews and AHen wrench from the cardboard box,
2. Start set screws in handle.
3,
4.
Place handle on mounting studs with the set screws
facing down.
Push the door handHe tightly against the door. Insert the
short end of the AHHen wrench into the setscrews. Tighten
the setscrews 1/4 turn past snug. Retain Allen wrench with
Installation Instructions.
g
stud
_) / handle
setscrew
(in bottom
of handle)
....)
wrench
Install the door handle--Pro Line _"_series
1. Remove the Pro Line _:'series handle and two screws from
handle package.
2. Make sure plastic
spacers are still attached
to the door.
Attach the handle to the
factory-supplied full
front panel as shovvn,
plastic spacers
Install door panel--Pro Line _ series
For top vented models with a factory-supplied stainless or
painted full front panel:
1. Remove the carton containing the factory-supplied full
front panel.
2. Remove the handle package from the front of the
shipping base.
3. With aTQRX screwdriver, remove three screws on both
sides, as shown; hold the outer panel up while removing
the screws. Save screws for reinstallation.
4. Gently set outer panel aside.
3 screws
outer [
5. Lay the factory-supplied full front panel face down on a
protective non-scratching surface.
6. Place the outer panel on the back of the full front panel;
align screw holes.
7. Attach outer panel to full front panel panel with the four
#10q6 x 3/8" hex head screws supplied in the literature
package.
4 screws
full front panel
outer panel
,p edge
8. Attach the panel assembly to the door by reinstalling the
two uppermost side screws; do not tighten screws
completely.This will hold the panel assembly in place on
the door frame.
2 screws
factory-supplied
full front panel
11
