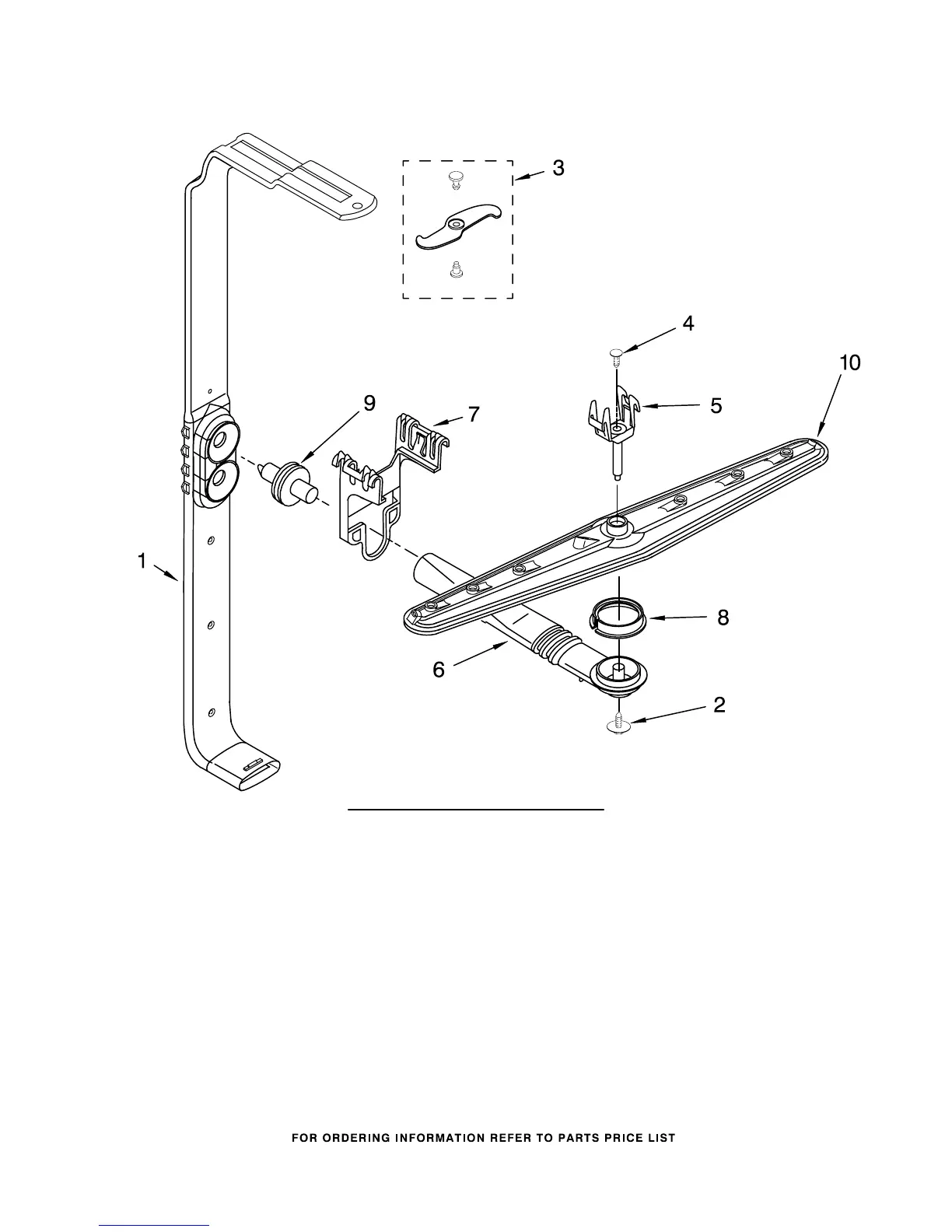

UPPER WASH AND RINSE PARTS
14
For Models: KUDS01DLSP0, KUDS01DLSS0
(Stainless/Custom) (Stainless)
8193763
Illus. Part
No. No. DESCRIPTION
1 8268359 Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8538389 Sprayarm, 3rd
Level
4 3400920 Cover, Screw
5 8268354 Mount
6 8268356 Manifold
7 8268349 Hanger
8 8268433 Seal, Sprayarm
9 8268350 Probe, Manifold
10 8269023 Sprayarm
