KitchenAid KUDS01DLSP - Door and Latch

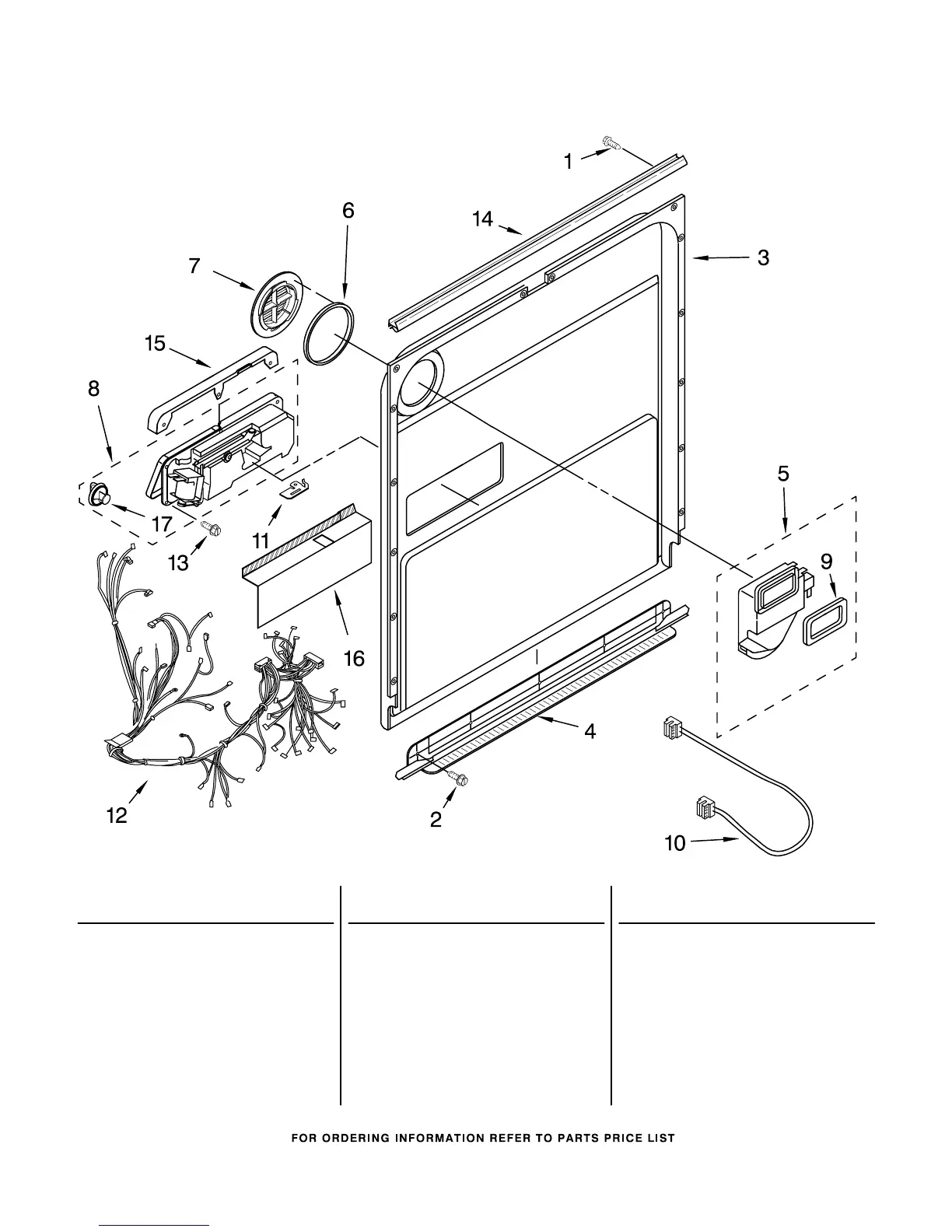

DOOR AND LATCH PARTS
3
For Models: KUDS01DLSP0, KUDS01DLSS0
(Stainless/Custom) (Stainless)
8193763
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8268937 Inlet, Air
5 8269251 Vent Assembly
(Also Order
6 8269259 Gasket, Vent
7 8269260 Deflector, Vent
(Also Order
Item 6)
8 8269996 Dispenser,
Assembly
(Also Order
Item 11)
9 8269258 Seal, Front
10 8269190 Dispenser,
Wiring Harness
11 8533381 Sensor, Rinse Aid
12 8269191 Wiring Harness
Main
13 8281154 Screw (6)
14 8269143 Seal,
Console/door
15 8269743 Bracket,
Dispenser
16 8268541 Shield,
Dispenser
17 8533380 Cap, Rinse Aid
