4

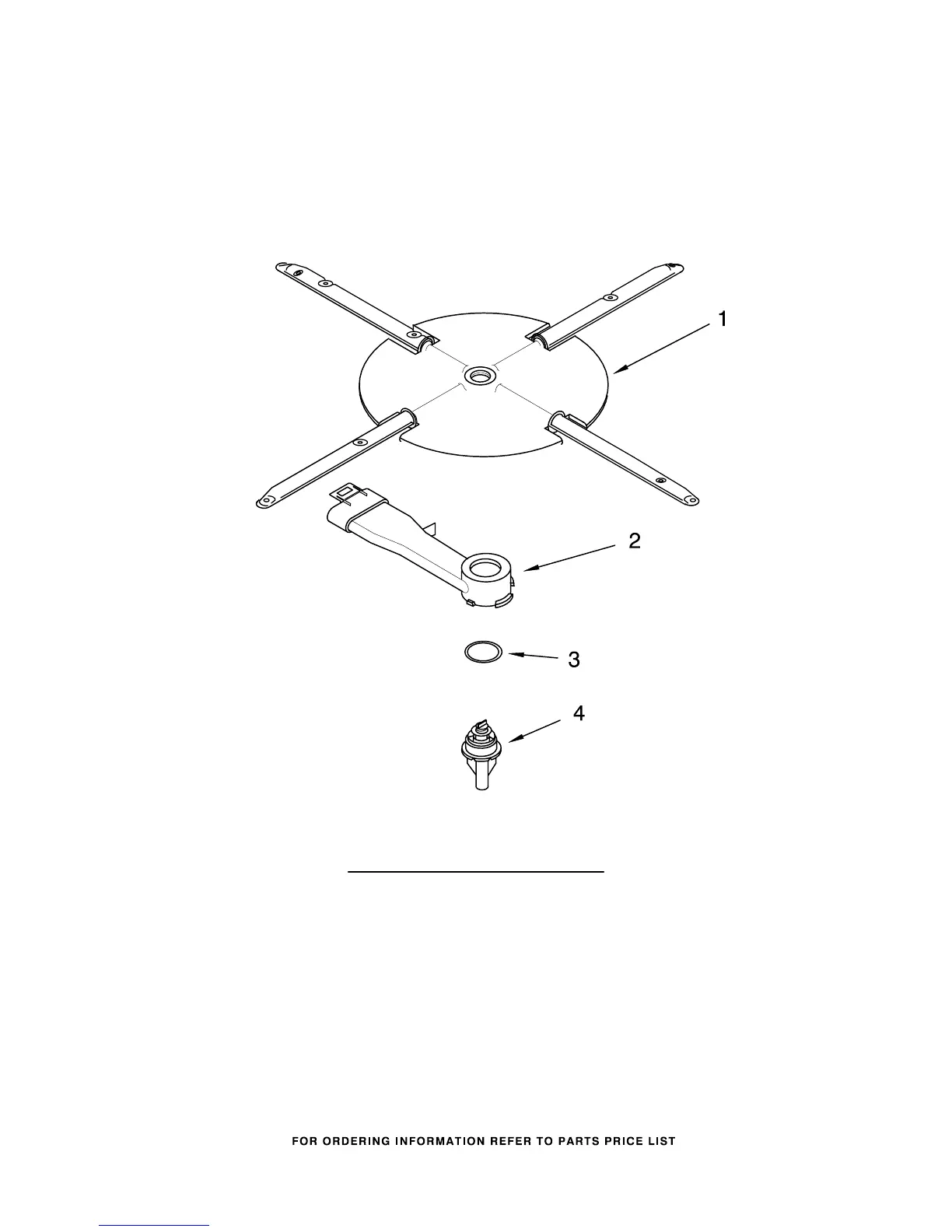

LOWER WASHARM AND STRAINER PARTS
For Models: KUDS01DLSP0, KUDS01DLSS0
(Stainless/Custom) (Stainless)
8193763
Illus. Part
No. No. DESCRIPTION
1 8268300 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
