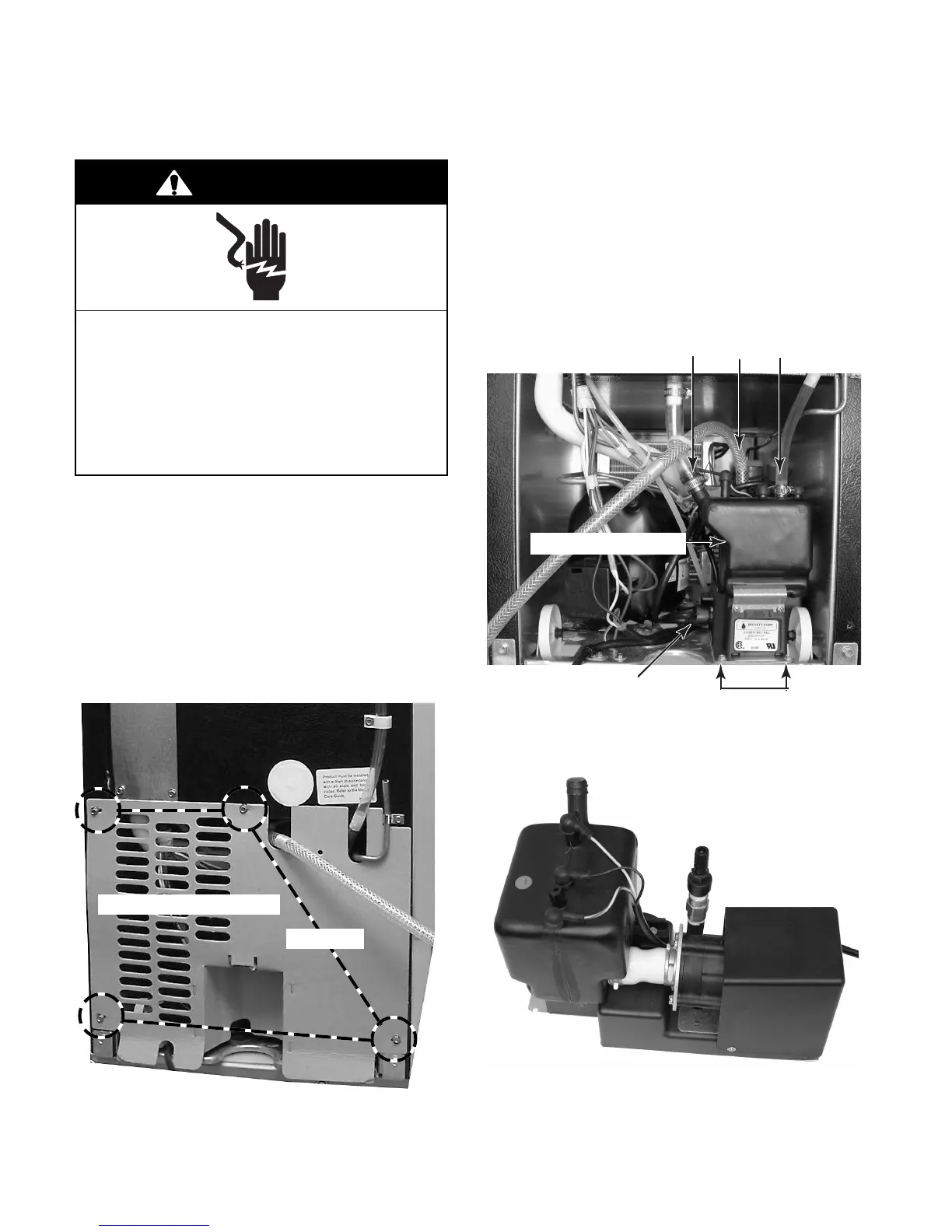

REMOVING THE INTERNAL DRAIN PUMP
(ONLY ON SOME MODELS)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug ice maker or disconnect power.
2. Remove the ice from the storage bin.
3. Disconnect the water and drain lines from
the ice maker and remove the unit from its
installation.
4. At the rear of the unit, remove the four
screws from the unit compartment cover
and remove the cover.
Unit Compartment Cover
4 Screws
5. Loosen the clamps and pull the ends of the
three water lines from the internal drain
pump.
6. Disconnect the power cord plug from the
internal drain pump.
7. Remove the two mounting screws from
the internal drain pump.
Remove Ends Of 3 Water Lines
Remove Screws
Disconnect Power Cord Plug
8. Remove the internal drain pump from the
unit.
Internal Drain Pump
