KitchenAid KUIA18PNL - Cutter Grid; Cutter Grid Transformer

5-2
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

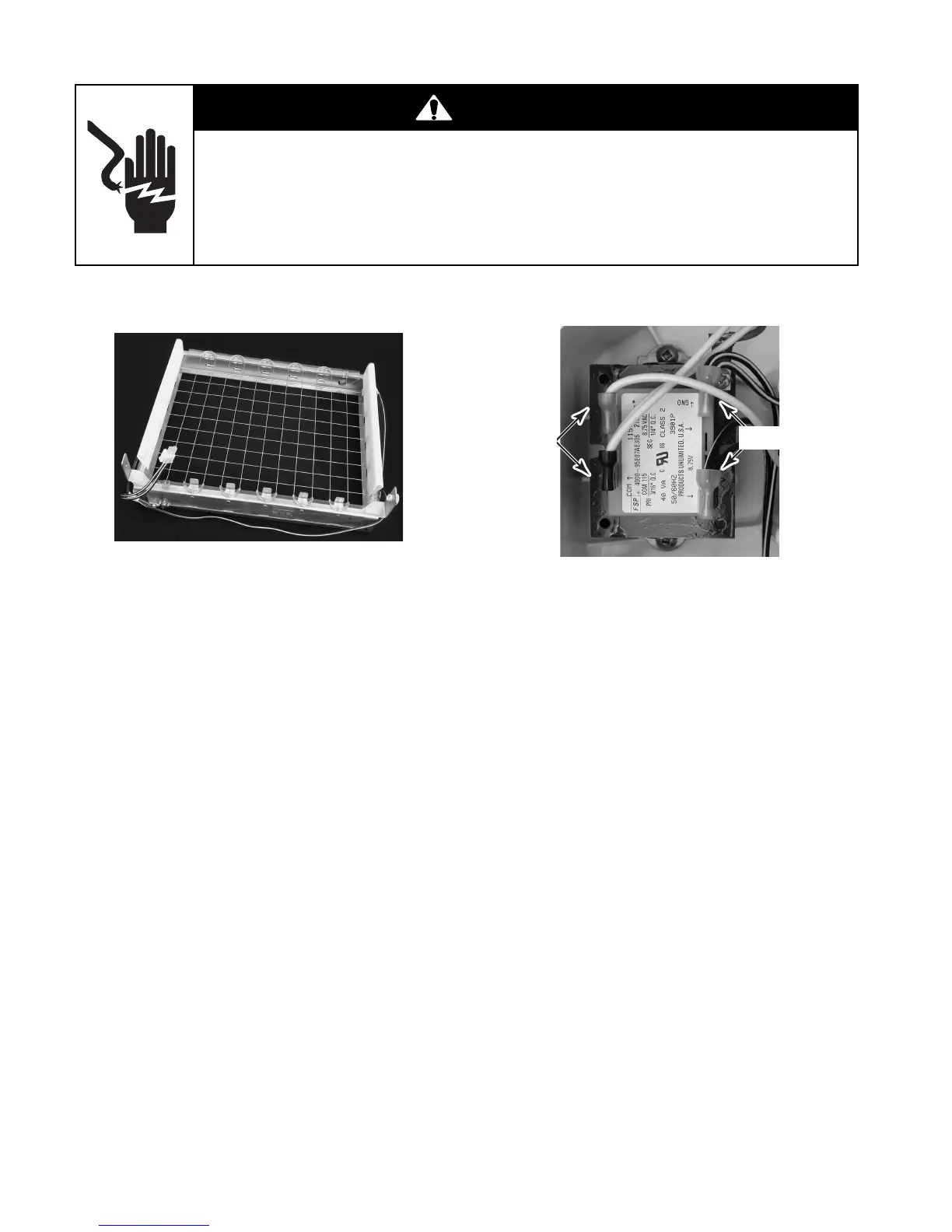

CUTTER GRID
Refer to page 4-2 for the procedure for servic-
ing the cutter grid.
1. Unplug ice maker or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to the pins
of the cutter grid 2-wire connector. The
meter should indicate 4 to 5 Ω.
Refer to page 4-5 for the procedure for servic-
ing the cutter grid transformer.
1. Unplug ice maker or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to the
primary terminals of the cutter grid trans-
former. The meter should indicate be-
tween 12 and 18 Ω.
4. Touch the ohmmeter test leads to the
secondary terminals of the cutter grid trans-
former. The meter should indicate less
than 1 Ω.
CUTTER GRID TRANSFORMER
Primary
Secondary
