4-15

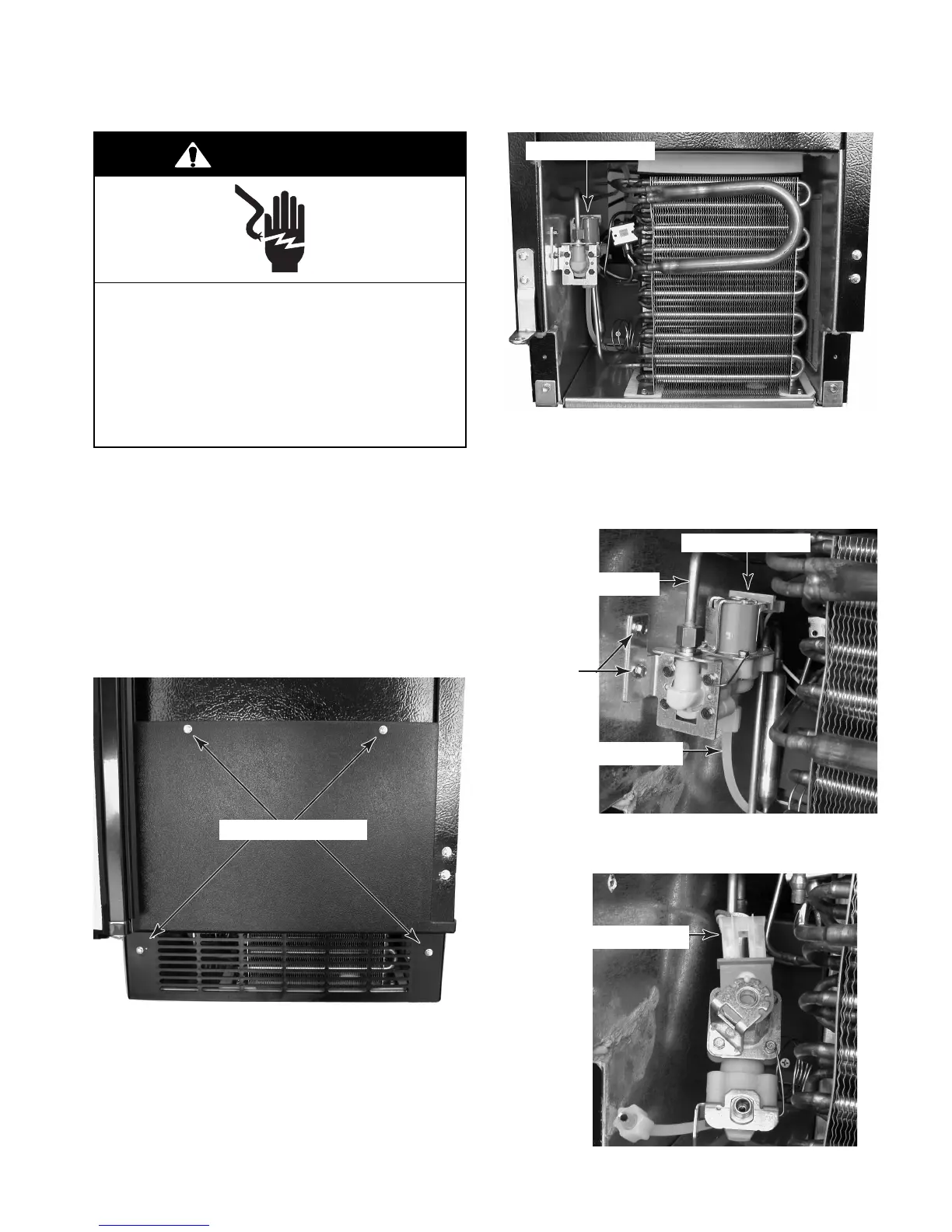

REMOVING THE WATER INLET VALVE
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug ice maker or disconnect power.
2. Open the ice maker door.
3. Disconnect the water and drain lines from
the ice maker and remove the unit from its
installation.
4. Remove the four hex-head screws from
the front panel and remove the panel.
5. Disconnect the water inlet and outlet tub-
ing from the water inlet valve.
6. Remove the two hex-head screws from
the water inlet valve bracket.
Front Panel Screws
7. Disconnect the 2-wire connector from the
water inlet valve terminals.
Bracket
Screws
Inlet Tubing
2-Wire Connector
Water Inlet Valve
Water Inlet Valve
Outlet Tubing
To Next Page
