REMOVING THE ICE MAKER DOOR & GASKET
(18″ MODELS)
Hinge Screws
(2 each side)
Top Grille
Screws (1 of 2)

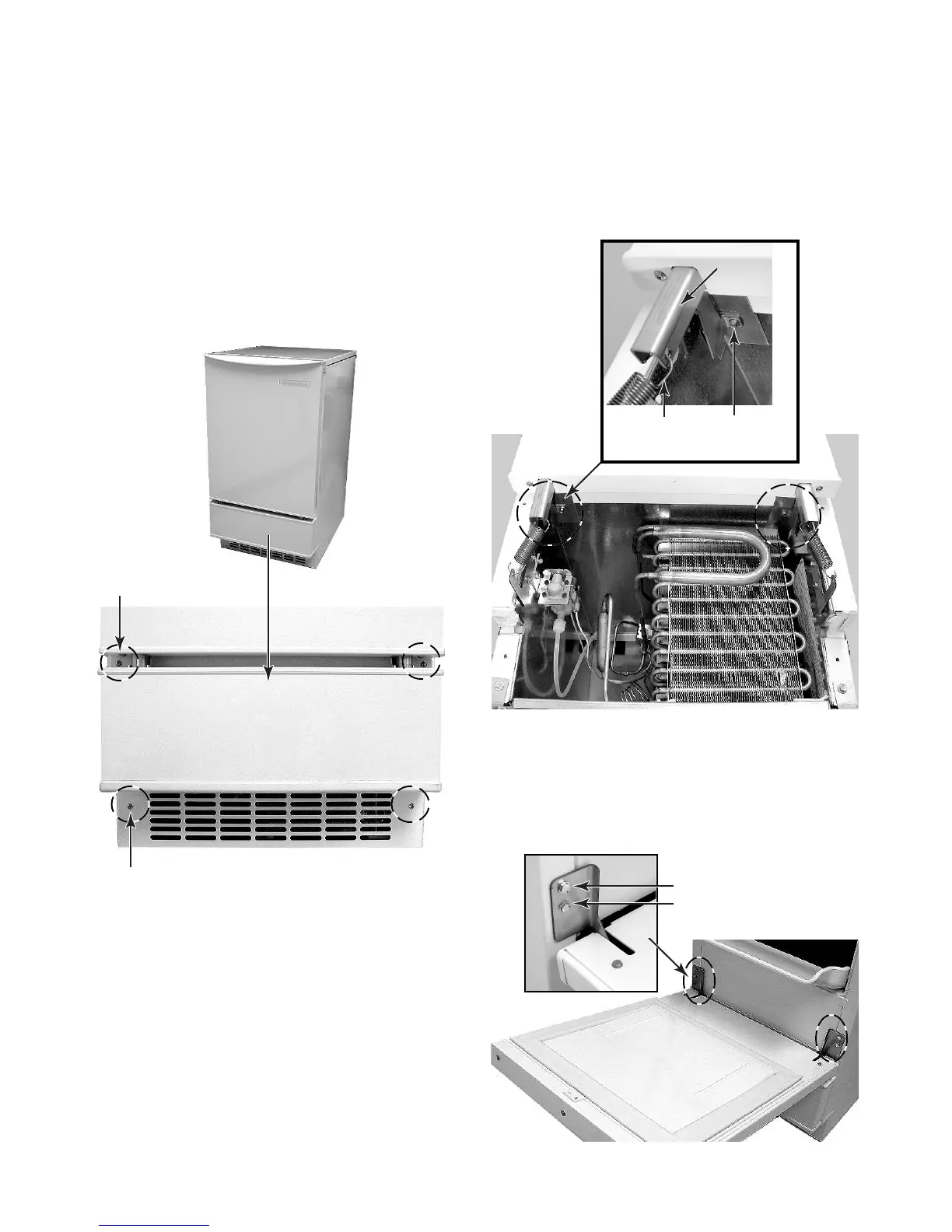

The 18˝ Ice Maker has a spring-loaded, drop-
down door. Since the door design is somewhat
unique, accessing procedures are included
below.
1. Remove the two top and two bottom screws
from the grille and remove it from the front
of the ice maker.
3. Open the ice maker door and remove the
four front hinge screws (2 per hinge) and
remove the door. NOTE: Support the door
while you remove the screws to prevent it
from falling off the unit.
2. Remove the end of the spring from the
door bracket and the screw from the bot-
tom of the door hinge.
Bottom Grille
Screws (1 of 2)
Hinge Bottom Hinge
Spring Screw
Bracket
To Next Page
