KitchenAid KUIS155H - Ice Making Mode; Harvest Mode

7-2

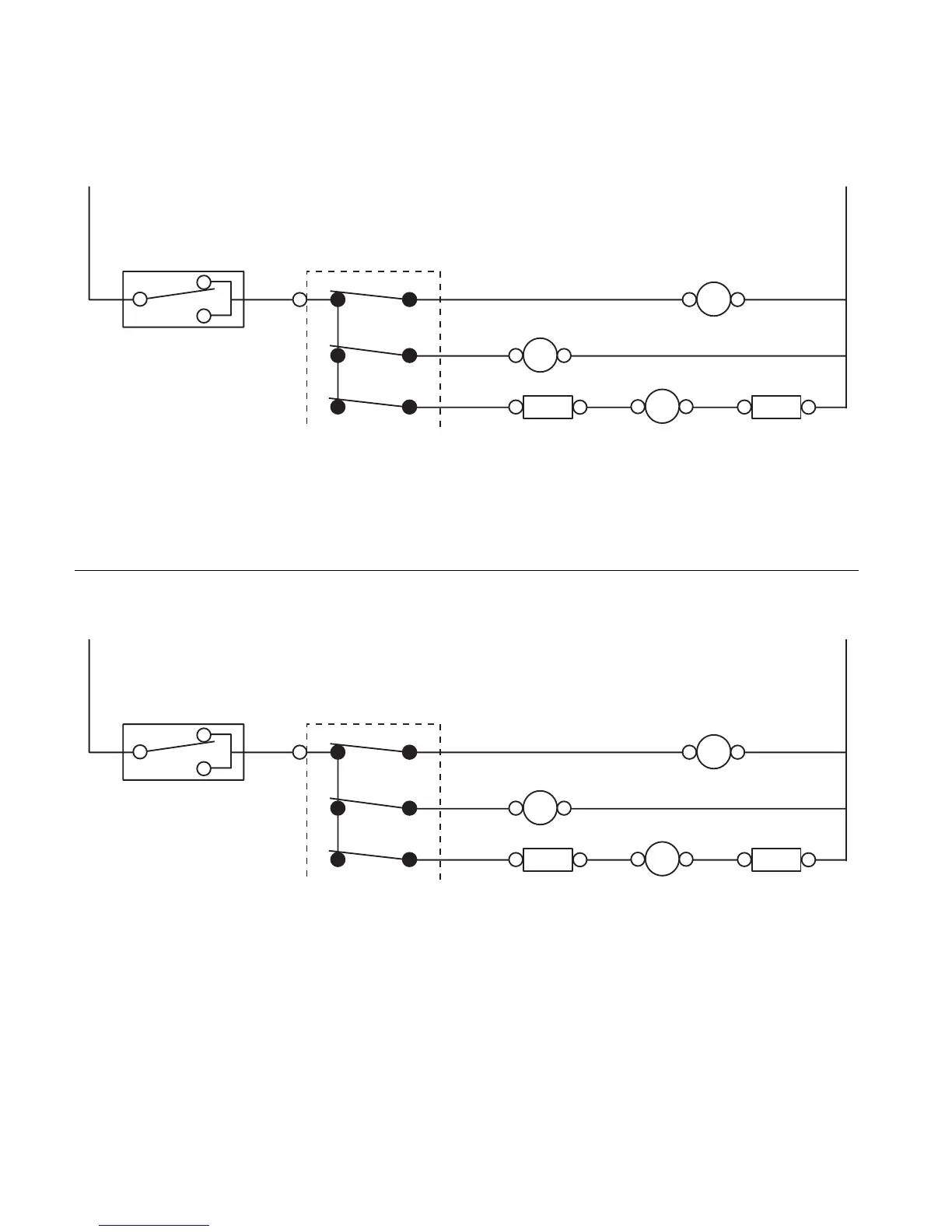

STRIP CIRCUITS
ICE MAKING MODE
HARVEST MODE
ON/OFF/CLEAN
SWITCH
ELECTRONIC
CONTROL
WATER RECIRCULATING PUMP
CONDENSER FAN
OVERLOAD
COMPRESSOR RELAY
YY BU
OR
R
BU W
W
W
BK
NOTE: If the unit is run through the Ice Making mode with no water running across the evaporator
plate, a complete frost pattern will appear.
ON/OFF/CLEAN
SWITCH
ELECTRONIC
CONTROL
WATER INLET VALVE
HOT GAS SOLENOID
OVERLOAD
COMPRESSOR RELAY
YY TN
PU
R
W
W
W
BK
