Outer Door Panel
Door Handle
REASSEMBLY NOTES:
1. To reassemble the unit, reverse the disas-
sembly procedure.

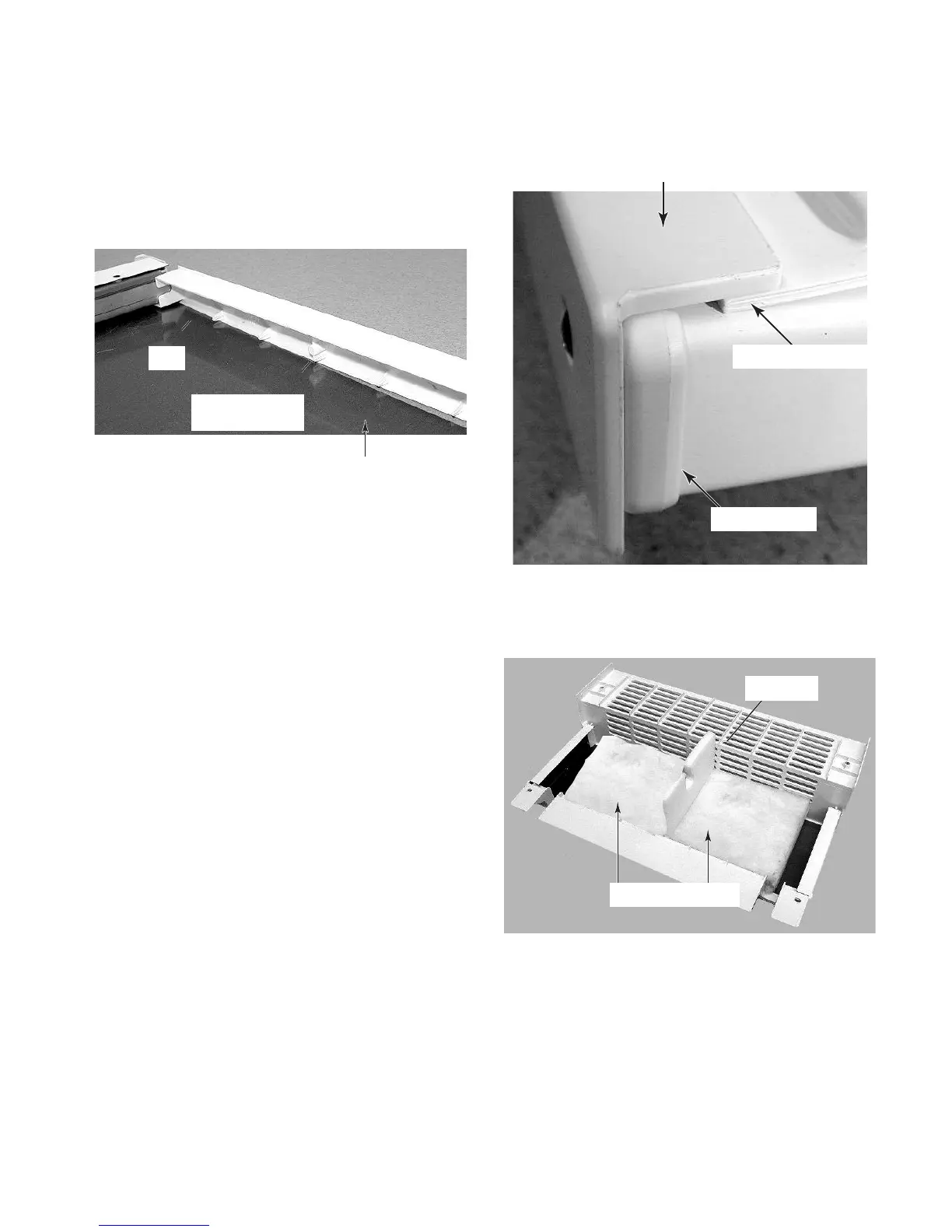

2. Slide the edge of the outer door panel
between the tabs and the inside edge of
the top door cap.
Tab
Inside Edge Of
Top Door Cap
3. When you reinstall the inner door panel,
slide the edge under the door handle, as
shown below.
Top Door Cap
Inner Door Panel
4. Before you reinstall the grille, position the
insulation pads and the air block as shown
below.
Insulation Pads
Air Block
