5-6
4. To test the relay:

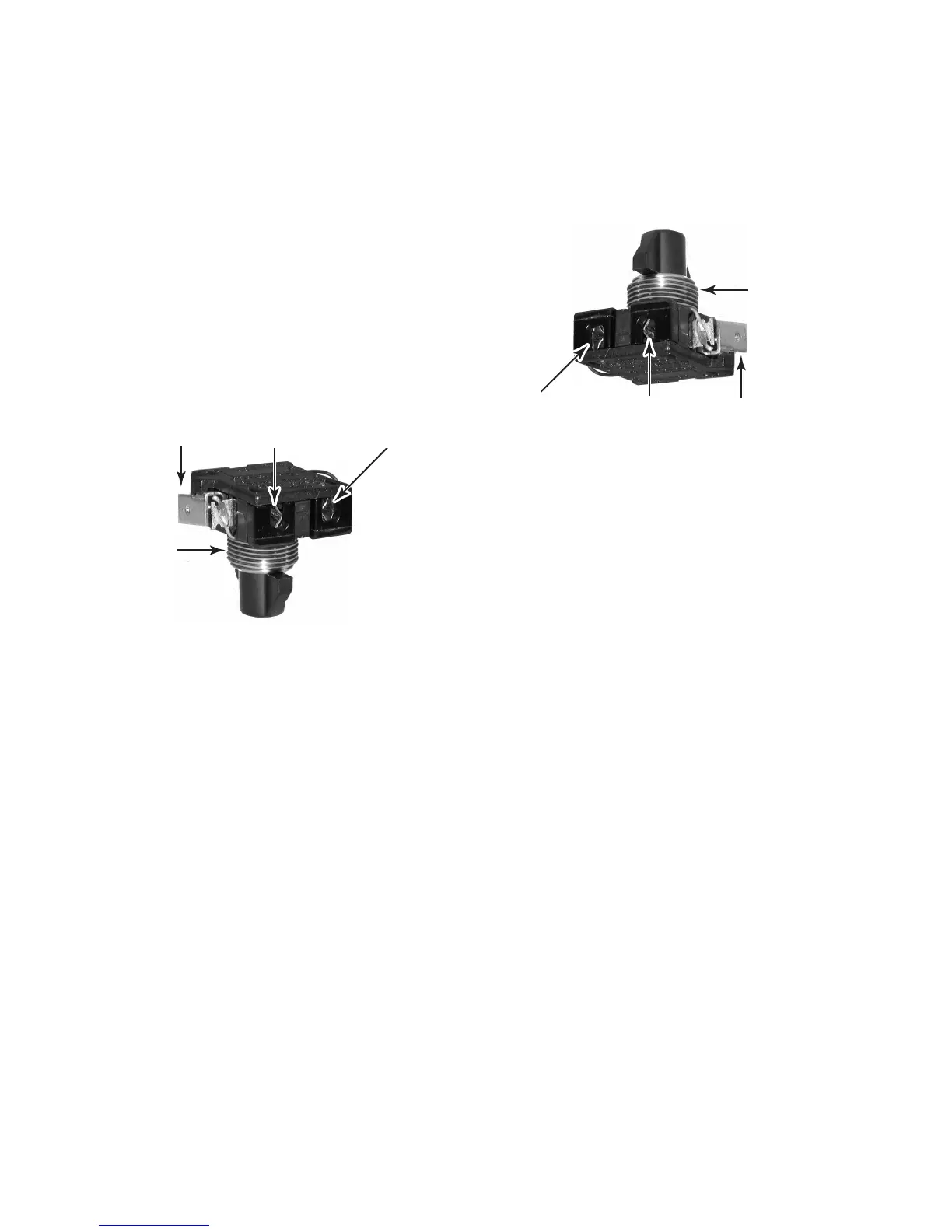

a) Position the relay with the coil facing
down, as shown below.
b) Insert the tip on one of the ohmmeter
test leads into the Run (M) pin socket,
and touch the other ohmmeter lead to
the spade terminal. The meter should
indicate a closed clrcuit (0 Ω).
c) Move the tip of the ohmmeter test lead
from the spade terminal into the Start
(S) pin socket. Leave the other ohm-
meter lead at the Run (M) location. The
meter should indicate an open circuit
(infinite).
Relay Coil
d) Turn the relay over so that the coil faces
up, as shown below.
e) With the tip of the ohmmeter test leads
at the Start (S) and Run (M) pin sock-
ets, the meter should indicate a closed
circuit (0 Ω).
Relay Coil
Spade Terminal Run (M) Start (S)
Run (M) Start (S) Spade Terminal
